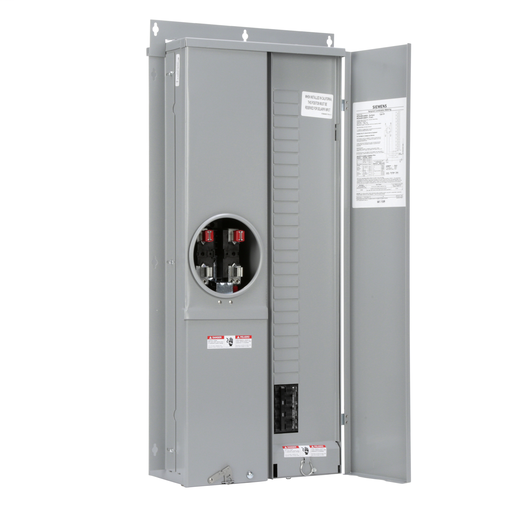

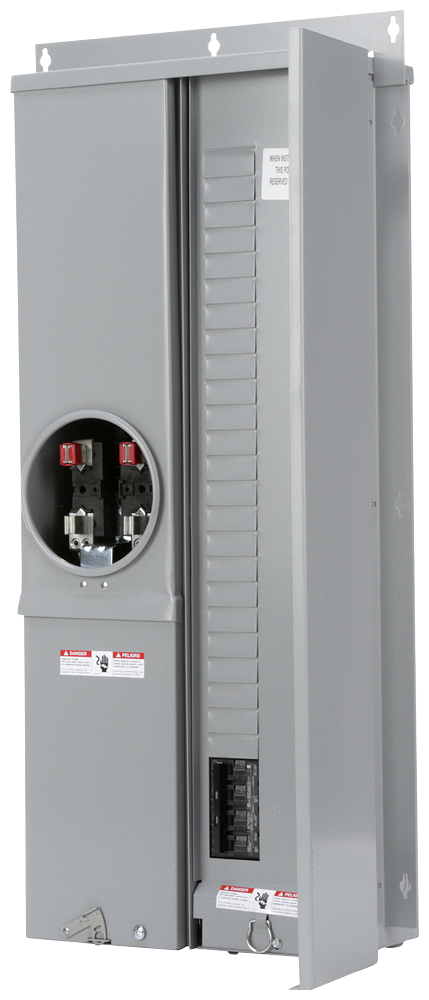

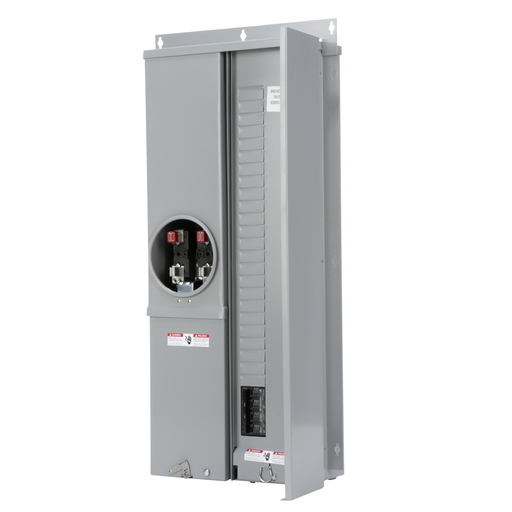

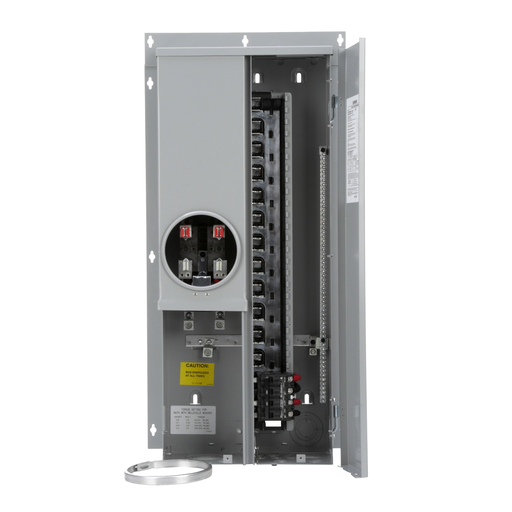

Siemens MC2442B1200EFV Meter Load Center 200 Amp 24-Space 42-Circuit Solar Ready

Product Description

The Siemens Meter Load Center, MPN MC2442B1200EFV, is designed for efficient energy management. It features a main breaker rated for 200 Amps and provides a comprehensive solution for both overhead and underground applications. This unit offers 24 spaces and can accommodate up to 42 circuits, making it ideal for residential solar setups.

• Factory installed main breaker rated at 200 Amps
• Accommodates overhead/underground feed types
• Compatible with solar energy systems

Product Highlights

This load center is equipped with a ring type cover and is flush mounted for easy installation. Its construction is EUSERC approved for solar energy inputs, ensuring compliance with modern energy standards.

Product Information

Standard Information

• Brand: Siemens
• Sub Brand: Modular Metering

Technical Specifications

• Voltage: 120/240 Volt
• Amperage: 200 Amp
• Enclosure: Ring
• Mounting Type: Flush
• Number of Phases: 1 Phase
• Height: 6 Inch
• Width: 16.500 inches
• Length: 37-1/4 Inch
• Weight: 56.000 lb
• Cable Entry: Top/Bottom
• Country of Origin: Mexico
