Product Description

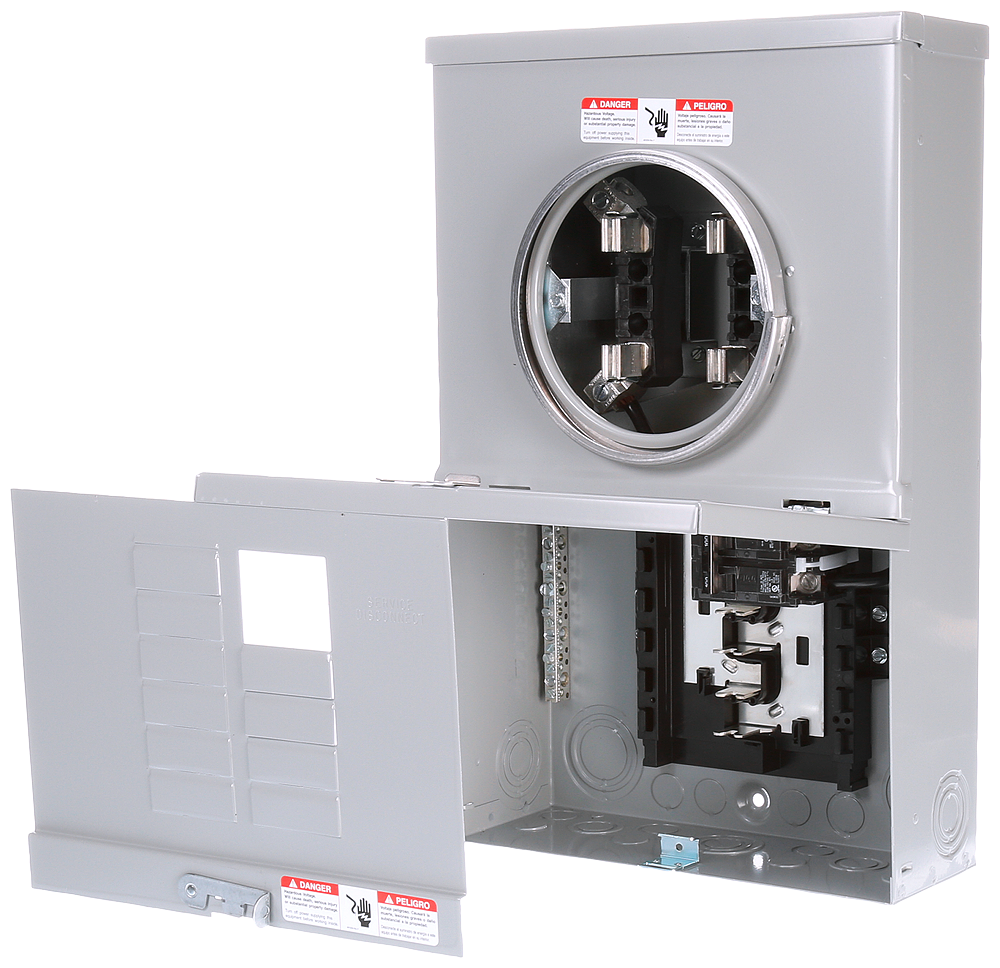

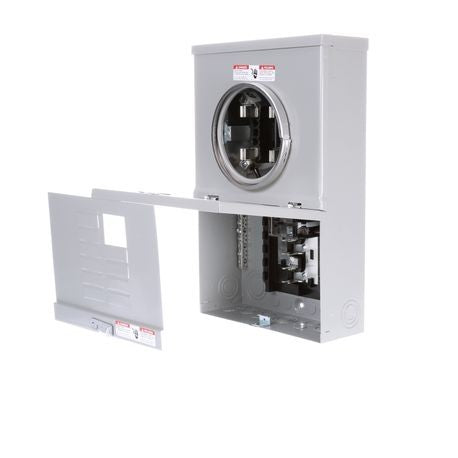

The Siemens MC1020B1100S is a low voltage meter load center combination with a factory-installed main breaker. It provides ten one-inch spaces that allow for a maximum of twenty circuits. This four-jaw meter operates on a single-phase system with a rating of one hundred amps. Ideal for service entrance equipment applications, it is designed for both overhead and underground feed. The enclosure features a ring-type cover and is meant for surface mounting.
- Suitable for use as service entrance equipment
- Ring-type cover for enhanced protection
- Top or bottom cable entry options available
Product Highlights
Efficiently designed for installation in residential or commercial applications, this load center is capable of handling various electrical loads while maintaining compliance with safety standards.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: MC1020B1100S
Technical Specifications
-
Type: Meter Load Center
-
Voltage: 120/240 Volt
-
Amperage: 100 Amp
-
Enclosure: Ring
-
Number of Circuits: 20
-
Dimensions: 19.88 inches Length x 12.88 inches Width x 5.12 inches Height
-
Weight: 20.668 lb
-
Number of Phases: 1 Phase
