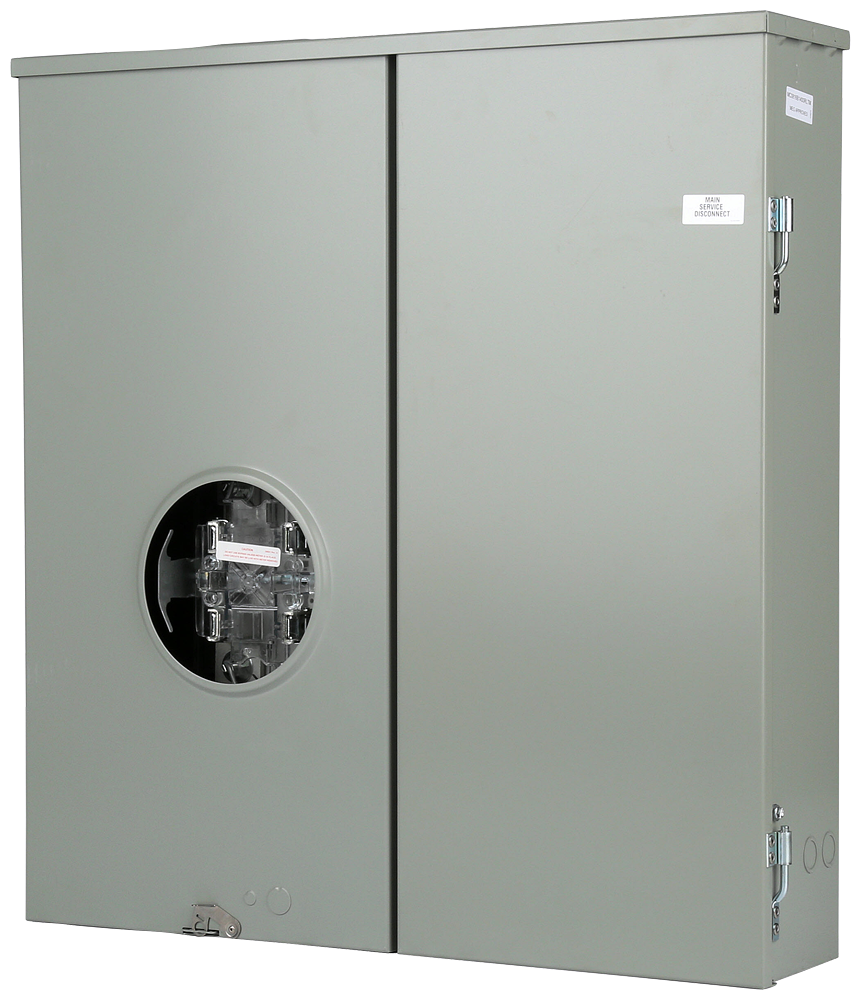

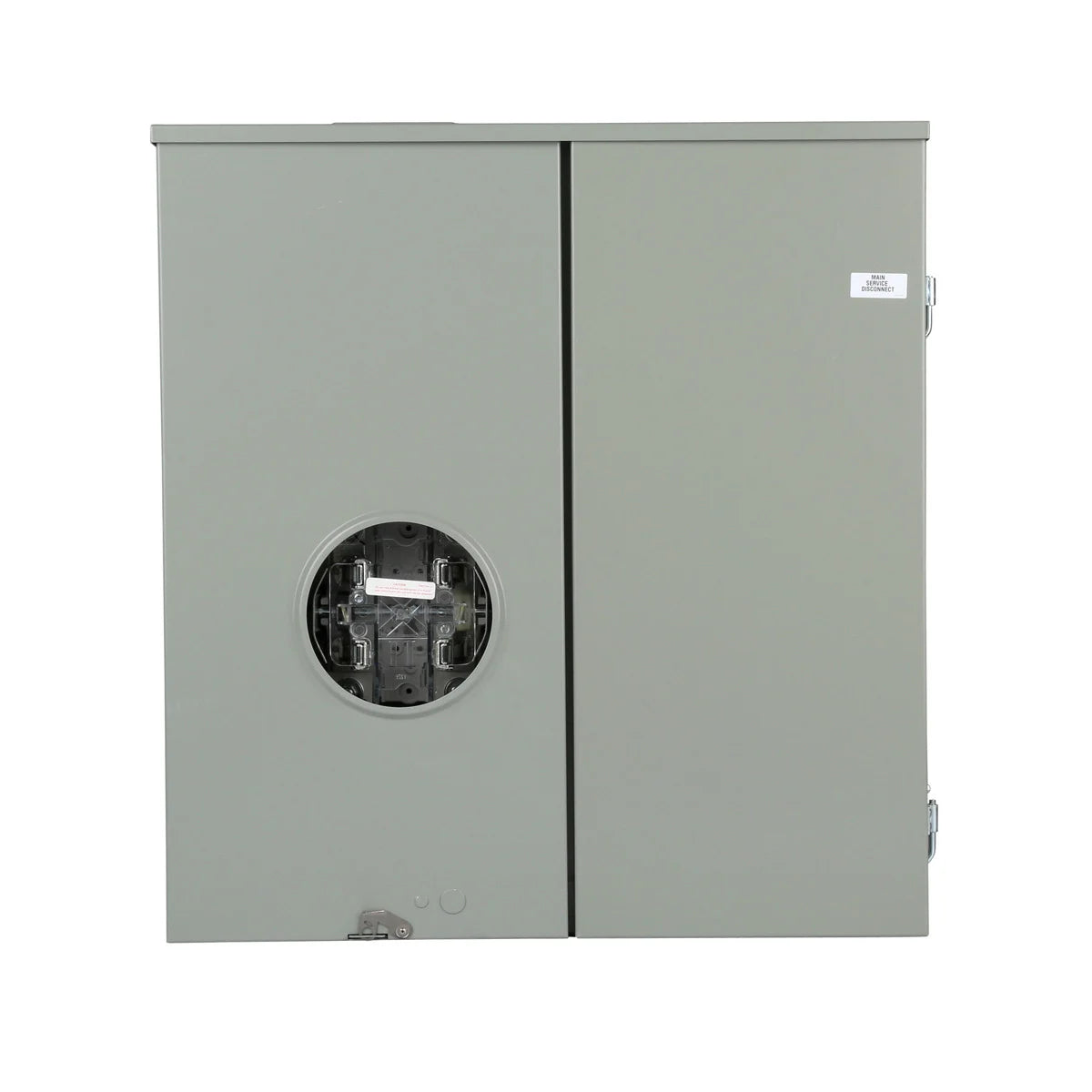

Siemens MC0816B1400RLTM 120/240 VAC 400 Amp 1-Phase 3-Wire Ringless Combination Meter Load Center

Product Description

The Siemens MC0816B1400RLTM is a combination meter load center designed for 120/240 volts and rated for 400 amps. This unit allows for up to sixteen circuits using eight one-inch spaces, making it suitable for various service entrance applications. It features a ringless cover and a lever bypass socket, providing flexibility for different installations.

• Factory installed main breaker
• Compatible with overhead and underground feed
• Surface mounting type

Product Highlights

Designed for easy installation and maintenance, the Siemens MC0816B1400RLTM is ideal for residential and commercial settings.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: MC0816B1400RLTM

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 400 Amp
• Enclosure Type: Ringless
• Cable Entry Type: Top/Bottom
• Mounting Type: Surface
• Number of Phases: 1 Phase
• Dimensions: 29 inches H x 27 inches W x 6 inches D
• Weight: 60 lbs
• Country of Origin: USA
• Standard Compliance: UL 67
