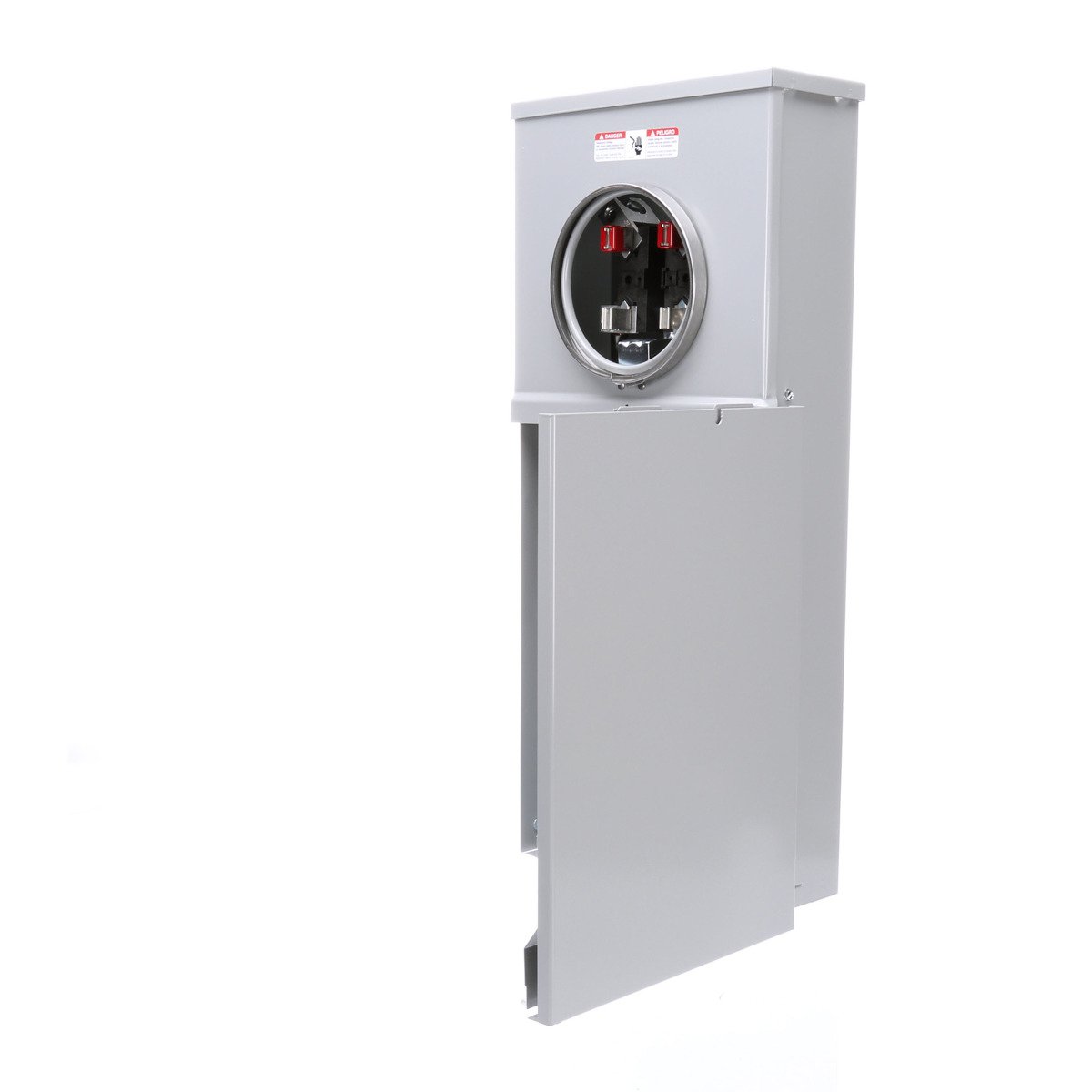

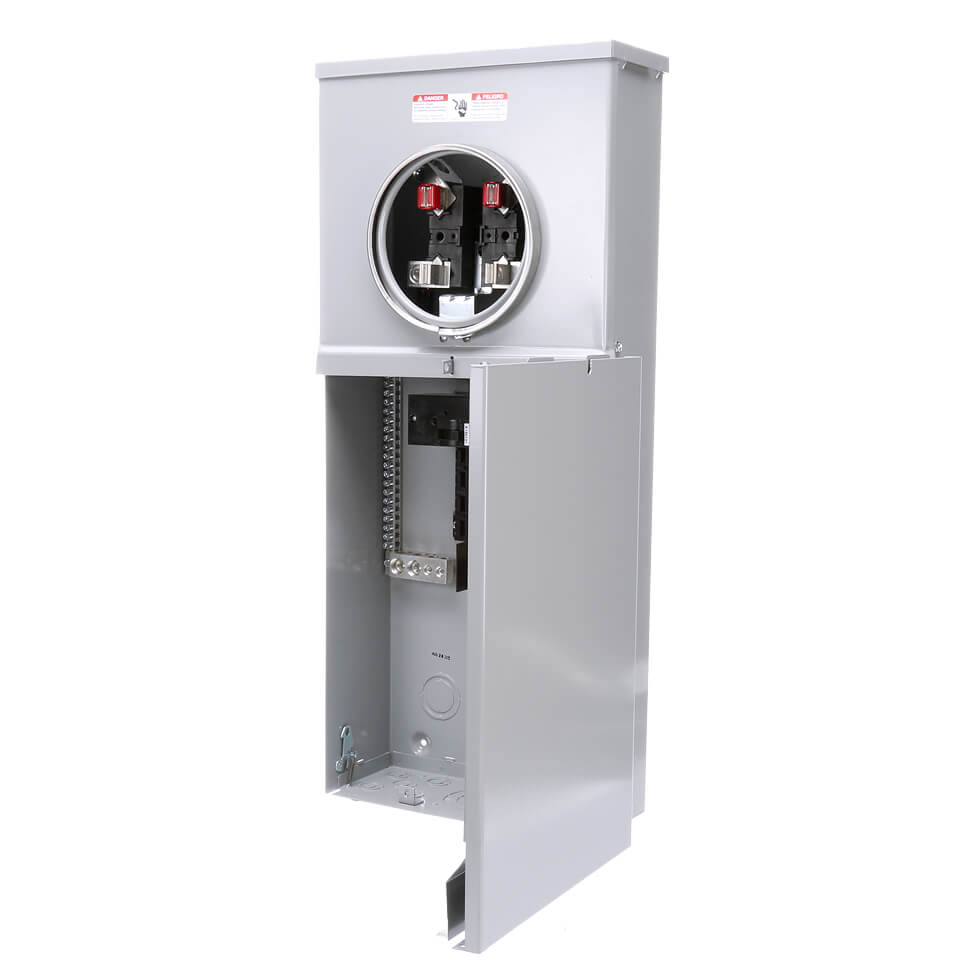

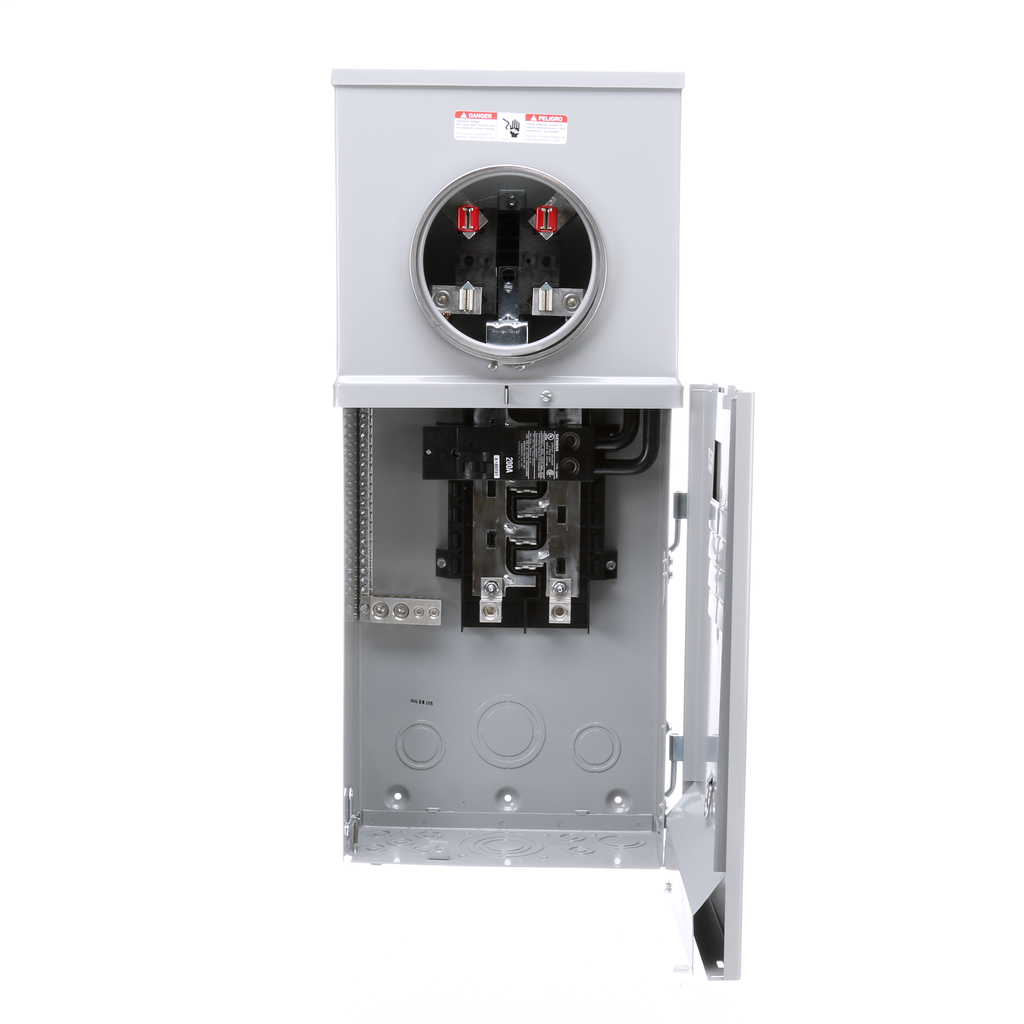

Siemens MC0816B1200T 120/240 VAC 200 Amp 1-Phase 3-Wire Ring Type Combination Meter Load Center

Product Description

Siemens MC0816B1200T is a ring-type combination meter load center. It operates at 120/240 VAC and supports a maximum of 200 Amps. This panel provides eight spaces for circuit breakers, allowing for a maximum of sixteen circuits. It is specifically designed for overhead feed applications.

• 200 Amp capacity for residential and commercial use
• Ring type cover with feed-thru lugs
• Durable construction suitable for surface mounting

Product Highlights

This product integrates essential features for efficient electrical service while ensuring safety and compliance with UL standards.

Product Information

Standard Information

• Brand: Siemens
• MPN: MC0816B1200T

Technical Specifications

• Catalog Number: MC0816B1200T
• Voltage Rating: 120/240 Volt
• Amperage Rating: 200 Amp
• Number of Phases: 1 Phase
• Number of Circuits: 16
• Enclosure Type: Ring
• Installation Type: Surface
• Country of Origin: Mexico
