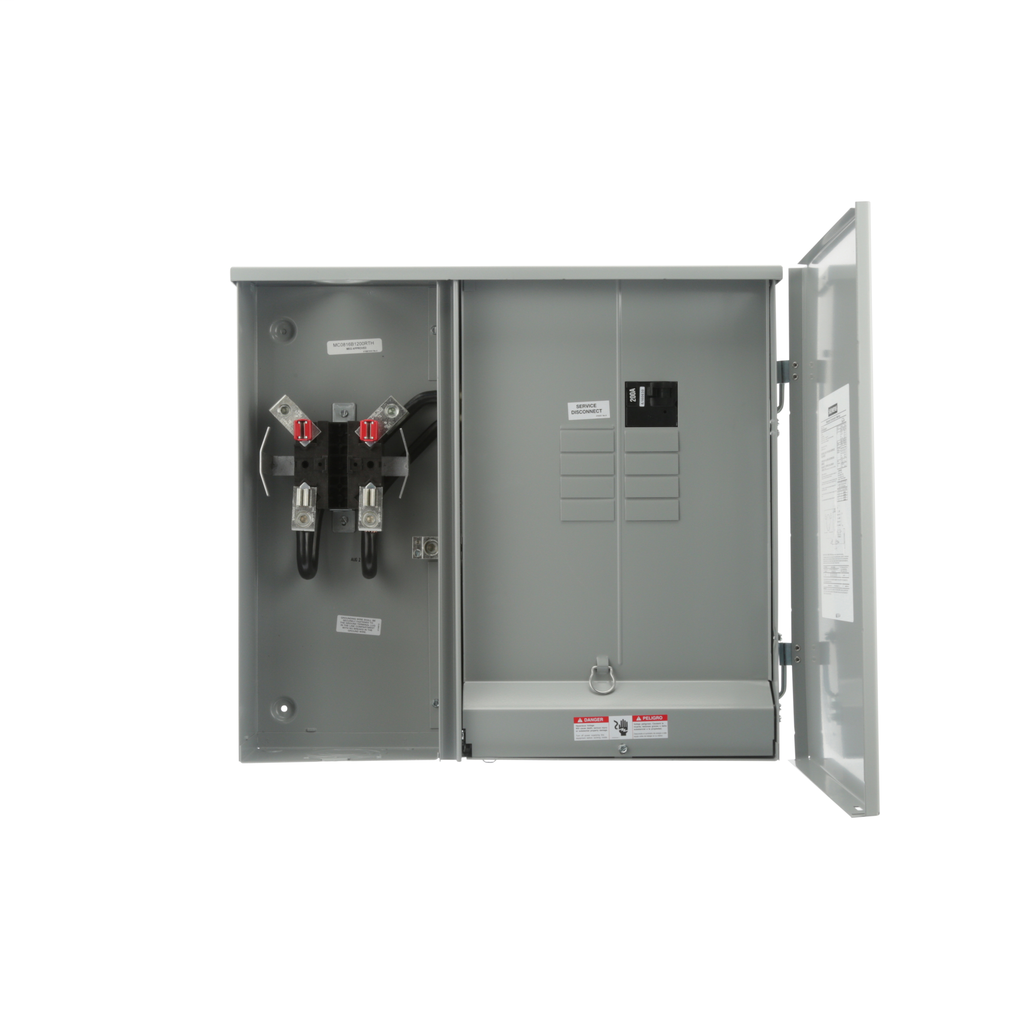

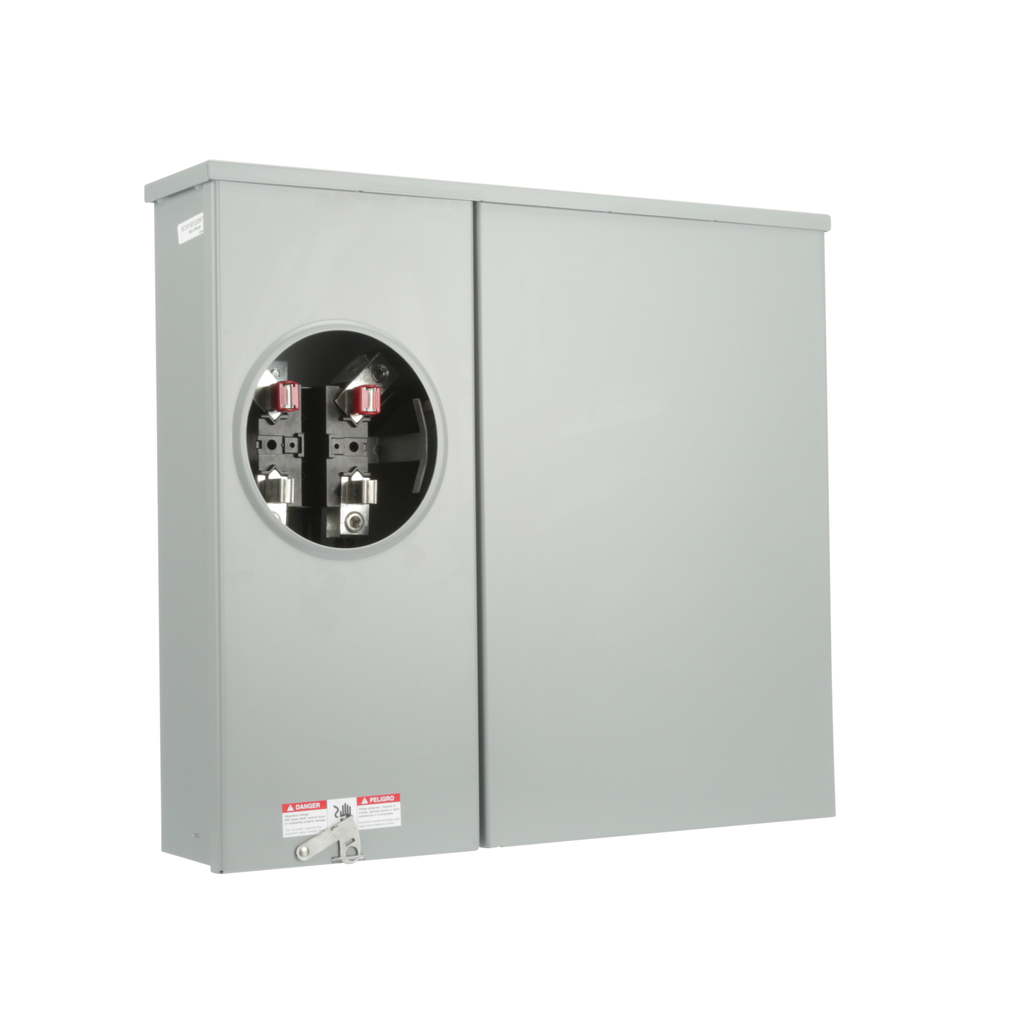

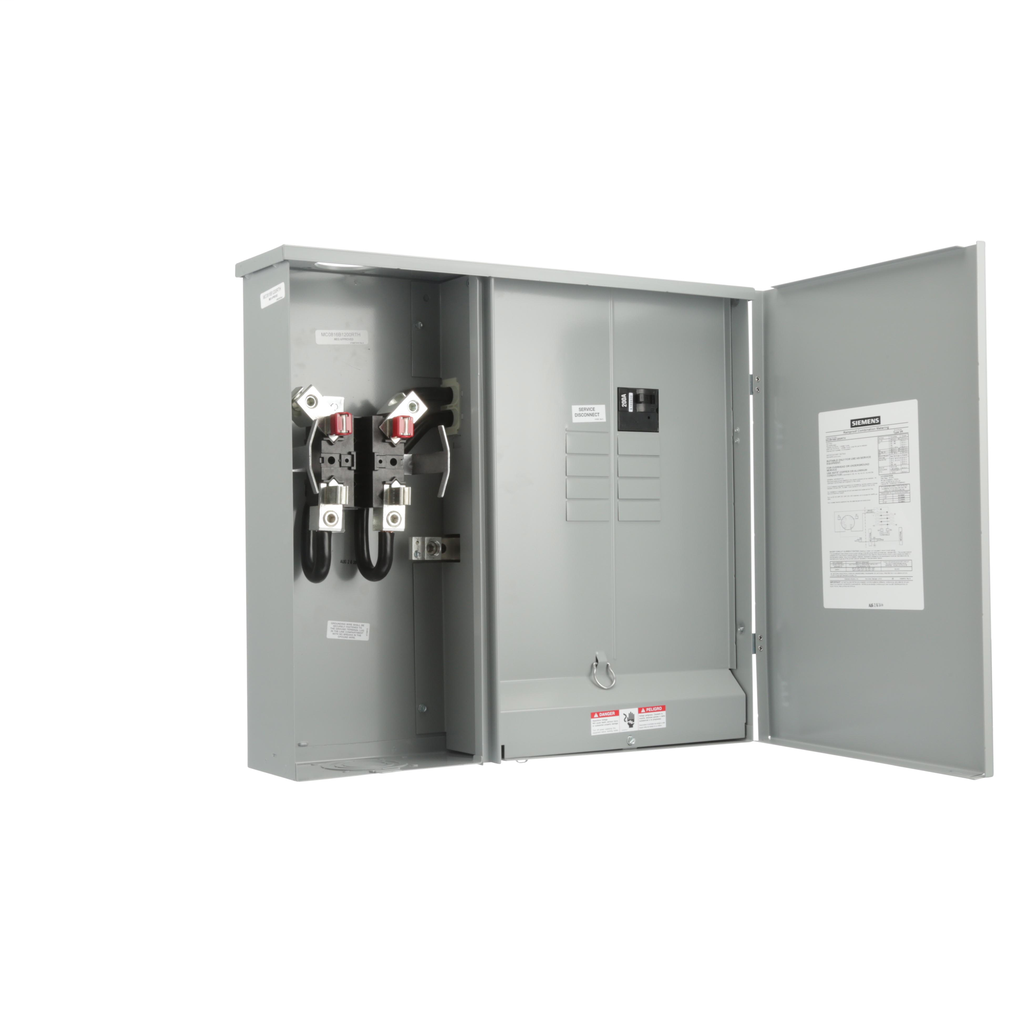

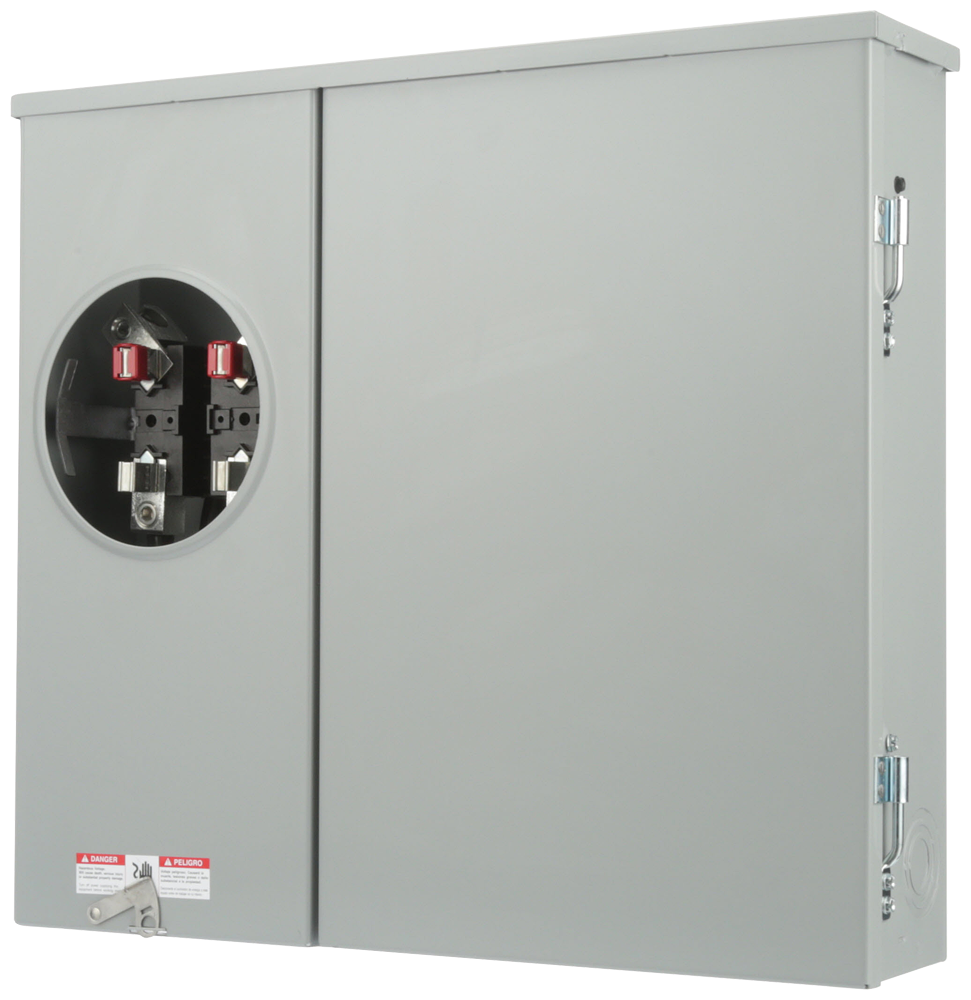

Siemens MC0816B1200RTH 120/240 VAC 200 Amp 1-Phase 3-Wire Ringless Combination Meter Load Center

Product Description

Siemens MC0816B1200RTH is a 120/240 VAC 200 Amp 1-Phase 3-Wire Ringless Combination Meter Load Center. This product is designed for use in residential or light commercial applications. It features a factory-installed main breaker and provides eight spaces allowing up to sixteen circuits.

• Rated for 200 Amps.
• Ringless design for overhead or underground feed.
• Surface mounting type for easy installation.

Product Highlights

This load center is suitable for service entrance applications, ensuring compliance with UL standards.

Product Information

Standard Information

• Brand: Siemens
• Type: Meter Load Center

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 200 Amp
• Enclosure Type: Ringless
• Number of Phases: 1 Phase
• Mounting Type: Surface
• Width: 23 inches
• Height: 6 inches
• Length: 24 inches
• Weight: 39.5 lb
• Feed Type: Top/Bottom
