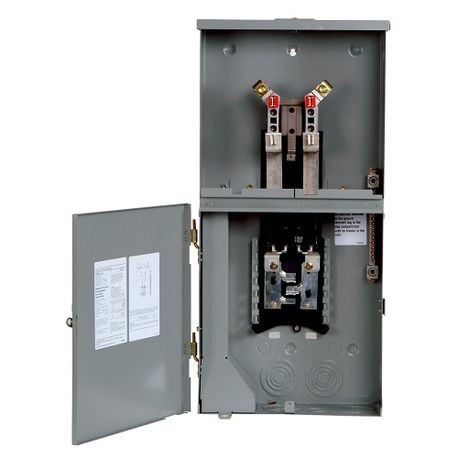

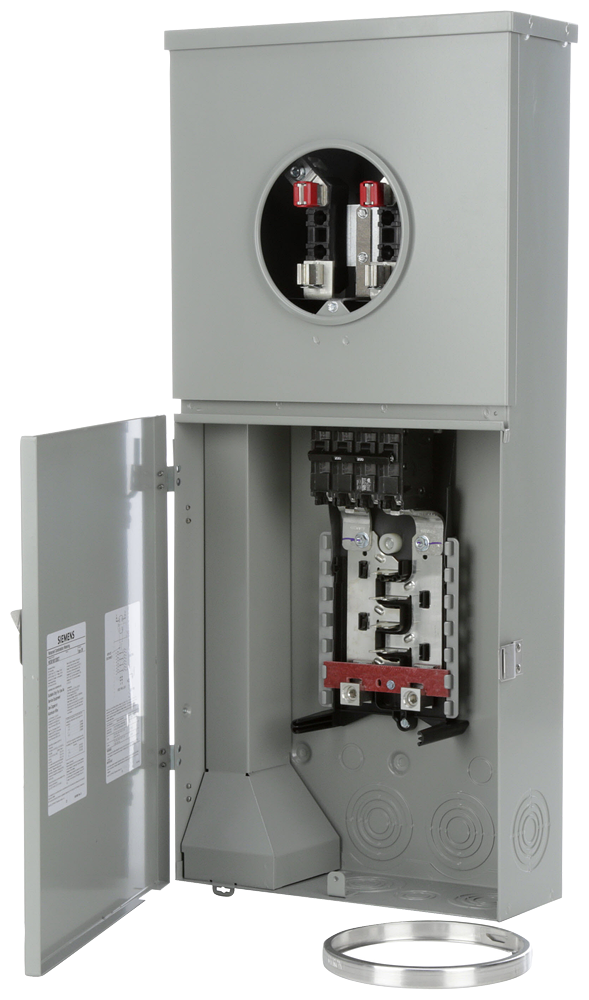

Siemens MC0816B1200CT 120/240 VAC 200 Amp 1-Phase 3-Wire Ring Type Combination Meter Load Center

Product Description

The Siemens MC0816B1200CT is a meter load center combination rated for 200 Amp at 120/240 Volt. This device features a factory-installed main breaker and eight spaces, allowing for a maximum of sixteen circuits. It is designed for both overhead and underground feed applications, providing versatility in installation. The product also includes a four-jaw meter and is suitable for 1-phase systems. It meets various technical specifications and is compliant with UL standards.

• 200 Amp service with 120/240 Volt rating
• Eight 1-inch spaces for circuit breakers
• Includes feed-through lugs for easy wiring

Product Highlights

This load center is an ideal choice for residential service entrance applications. It combines safety and efficiency with easy installation features.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: MC0816B1200CT
• Voltage Rating: 120/240 Volt
• Amperage Rating: 200 Amp
• Number of Phases: 1 Phase
• Enclosure Type: Ring
• Mounting Type: Surface
• Product UPC: 783643510678
• Dimensions: 33 inches (Height) x 7 inches (Width) x 15 inches (Length)
• Weight: 38 lb
• Applications: Service entrance equipment
