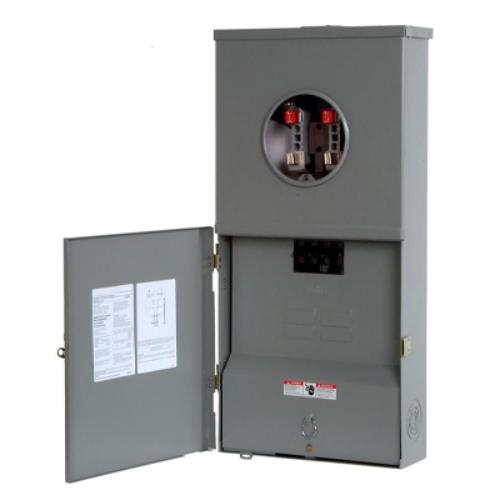

Siemens MC0408B120T2 Meter Combo Load Center 200-Amp 4-Space 8-Circuit

Product Description

The Siemens MC0408B120T2 Meter Combo Load Center is a redesigned replacement of earlier model MC0408B1200T. It is a versatile and robust solution designed for residential and commercial applications. This combination unit integrates a meter socket and load center, providing a streamlined and efficient approach to electrical distribution. Compatibility with the electric service provider (utility) should be checked prior to ordering.

• Over-Under construction
• Surface Mount
• Feed Thru Lugs included
• For Overhead or Underground Service applications

Product Highlights

Combines a 200 amp rated meter socket with a 200 amp main breaker service disconnect. It Accommodates up to 8 circuits, making it suitable for various electrical needs.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MC0408B120T2
• Country of Origin: United States

Technical Specifications

• Circuits: 8
• Number of Spaces: 4
• Maximum Current: 200 Amps
• Phase Type: Single Phase
• Brand: Siemens Energy
• Amperage Rating: 200 A
• BreakerMounting: Plug-in
• BussBarMaterial: Tin Plated Copper
• CircuitBreakerType: Mbk200 Main Breaker
• EnclosureType: Nema 3r
• Feed Type: Bottom/Top
• Interrupt Rating: 22 kA
• Mounting Type: Surface
• Number of Jaws: 4
• Number of Phases: 1
• Overall Depth: 5 In
• OverallHeight: 30 In
• OverallWidth: 14 In
• Phase: 1
• SpecialFeatures: 1 In Spacing
• Standards: Csa Certified, Ul Listed
• Terminal Type: Feed-Through Lug
• Type: 3-Wire
• Usage: For Overhead And Underground Feed Applications
• Voltage Rating: 120/240 VAC
• WiringConfiguration: 3-wire
