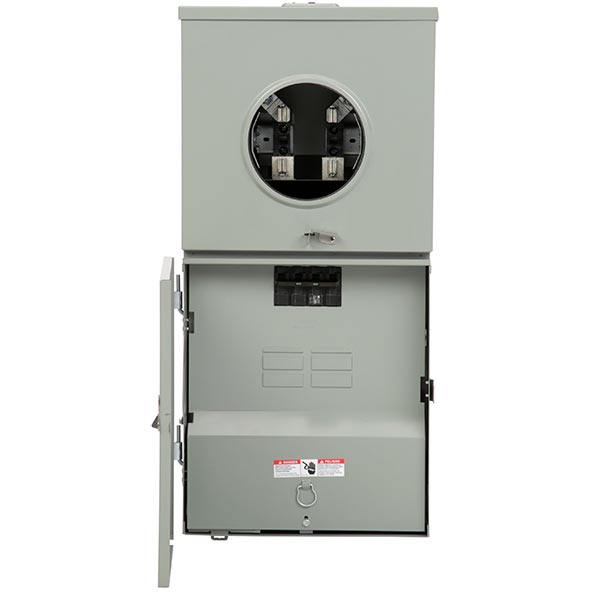

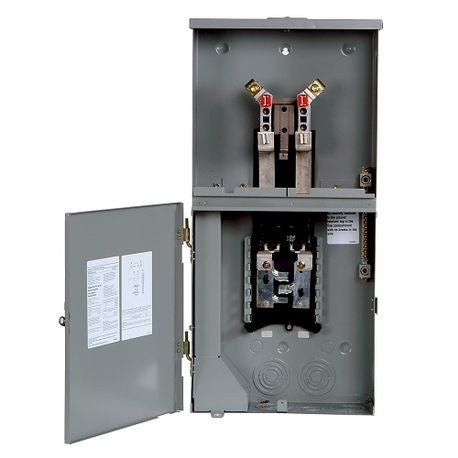

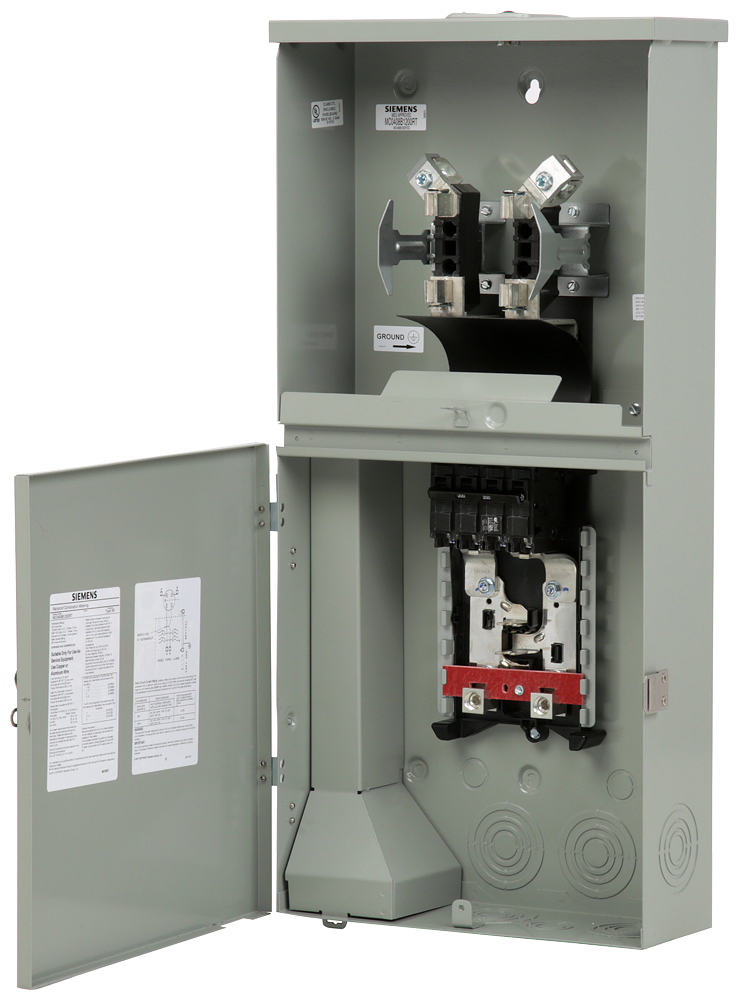

Siemens MC0408B1200RT MC 4S/8C 200A 4J

Product Description

The Siemens MC0408B1200RT is a meter load center combination designed for low voltage applications. This unit supports a factory-installed main breaker and provides four spaces that allow for a maximum of eight circuits. The system is rated for 200 amperes and is suitable for one-phase service. It features both overhead and underground feed options, a ringless cover for enhanced safety, and feed-through lugs for easy wire management.

• 200 Amp rating for reliable power distribution
• Four (1 inch) spaces, accommodating multiple circuits
• Single-phase operating system for residential and light commercial uses

Product Highlights

This load center is suitable for service entrance applications and is compliant with necessary installation standards.

Product Information

Standard Information

• Brand: Siemens
• MPN: MC0408B1200RT

Technical Specifications

• Type: 3-Wire
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Dimensions: 30 inches H x 14 inches W x 5 inches D
• Weight: 38.0 lb
• Country of Origin: USA
• Mounting Type: Surface
• Feed Type: Top/Bottom
