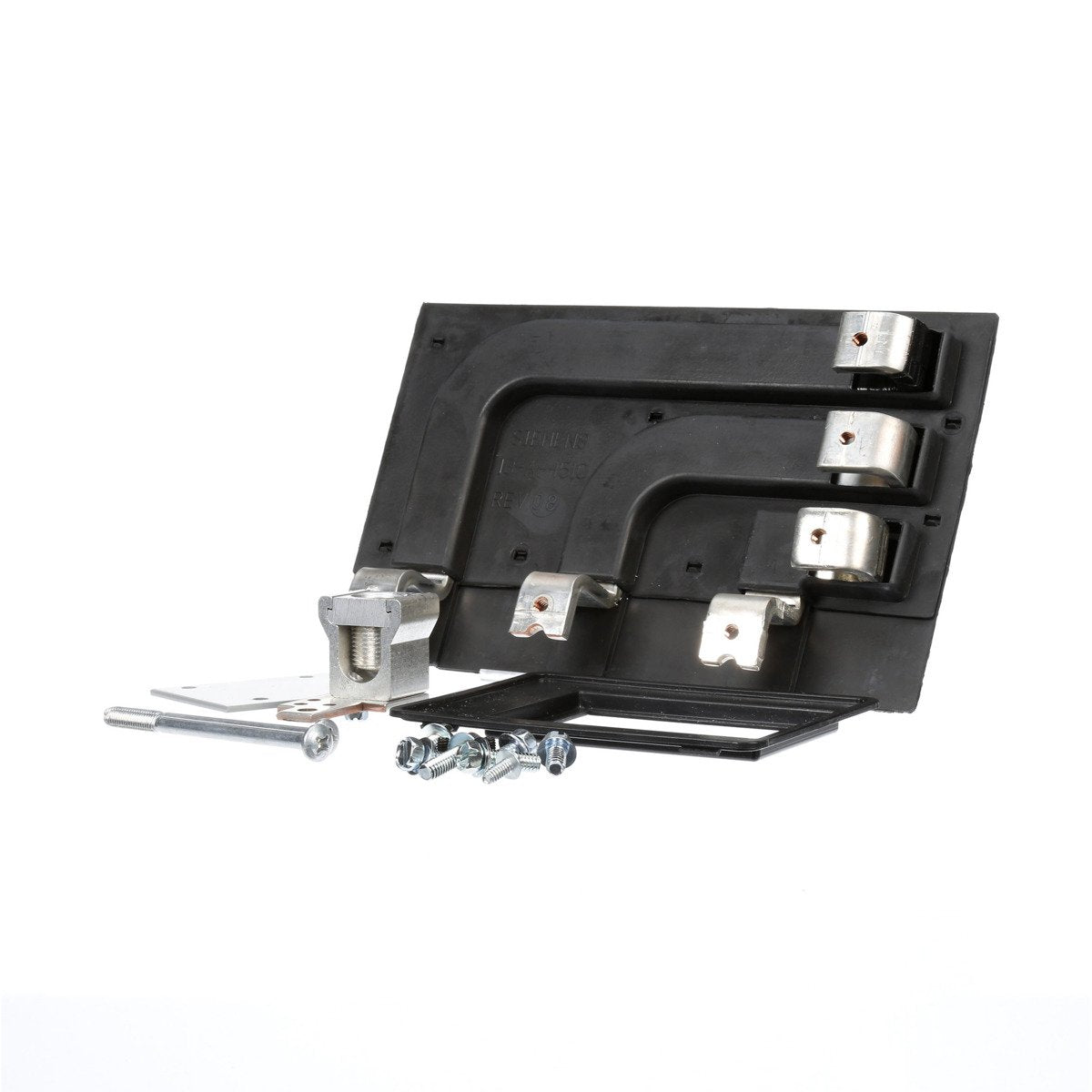

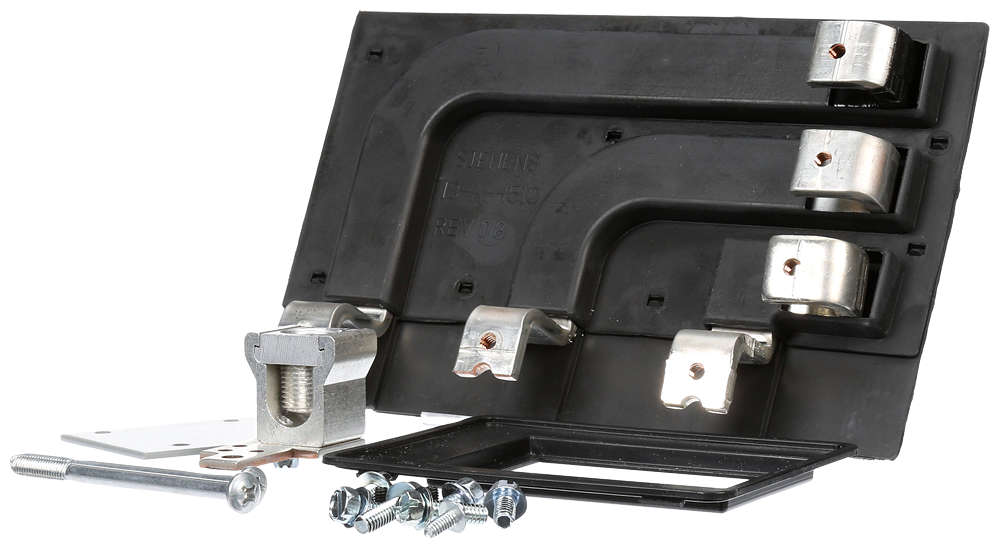

Siemens MBKFD3 250 Amp 3-Phase Main/Subfeed Breaker Mounting Kit

Product Description

The Siemens MBKFD3 is a breaker mounting kit for use in main or subfeed applications. This kit supports a three-phase system and accommodates circuit types FXD6, FD6, HFD6, and HFXD6. Rated for two hundred fifty amperes, it is suitable for lighting panels. This product includes all necessary mounting hardware but does not include the breaker itself.

• Rated for 250 amps, suitable for three-phase power systems.
• Compatible with circuit breaker types FXD6, FD6, HFD6, and HFXD6.
• All mounting hardware included for easy installation.

Product Highlights

This mounting kit is designed to fit within original P1 panelboards. It ensures secure installation for various Siemens circuit breakers.

Product Information

Standard Information

• Catalog Number: MBKFD3
• Brand: Siemens

Technical Specifications

• Frame: F
• Width: 8.6 inches
• Height: 4.5 inches
• Length: 13.7 inches
• Weight: 3.4 pounds
• Amperage: 250 Amp
• Country of Origin: USA
• Applications: Lighting Panel
