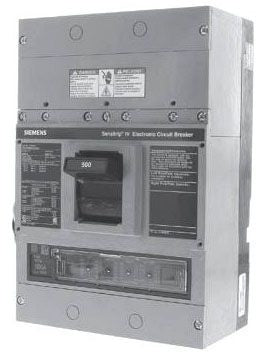

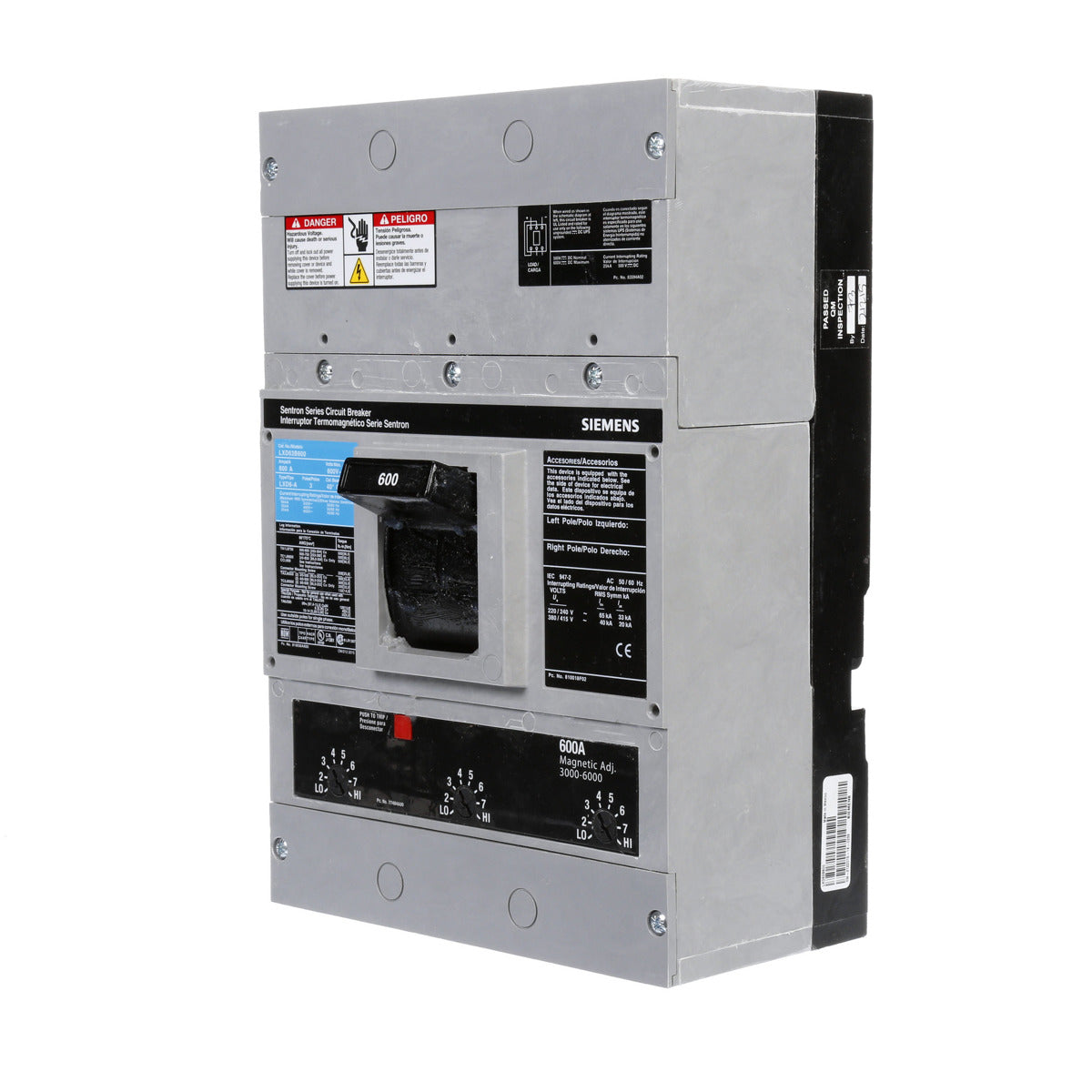

Siemens LXD63B600 3-Pole 600 Amp 600 VAC 25 kA Molded Case Circuit Breaker

Product Description

The Siemens LXD63B600 is a three-pole molded case circuit breaker designed for 600 amp current at 600 volts. This device offers a 25 kA interrupt rating and is suitable for various industrial applications. The robust thermal magnetic trip mechanism enhances reliability in demanding conditions.

• Three poles for versatile connections.
• Rated for a maximum voltage of six hundred volts.
• Thermal magnetic mechanism for reliable performance.

Product Highlights

This circuit breaker is equipped with an interrupt rating of 25 kA, making it ideal for systems with high fault currents. It is compliant with UL and HACR standards, ensuring safety and compatibility with different applications.

Product Information

Standard Information

• Brand: Siemens
• Type: LD Molded Case Circuit Breaker

Technical Specifications

• Frame Type: LD
• Height: 14.7 inches
• Width: 8.8 inches
• Length: 6.6 inches
• Current Rating: 600 Amps
• Voltage Rating: 600 Volts AC
• Interrupting Rating: 25 kAIC
• Operating Temperature: 40 degrees C
• Number of Poles: 3
• Trip Type: Thermal Magnetic
• Standard: UL/HACR
• Frequency Rating: 50/60 Hz
