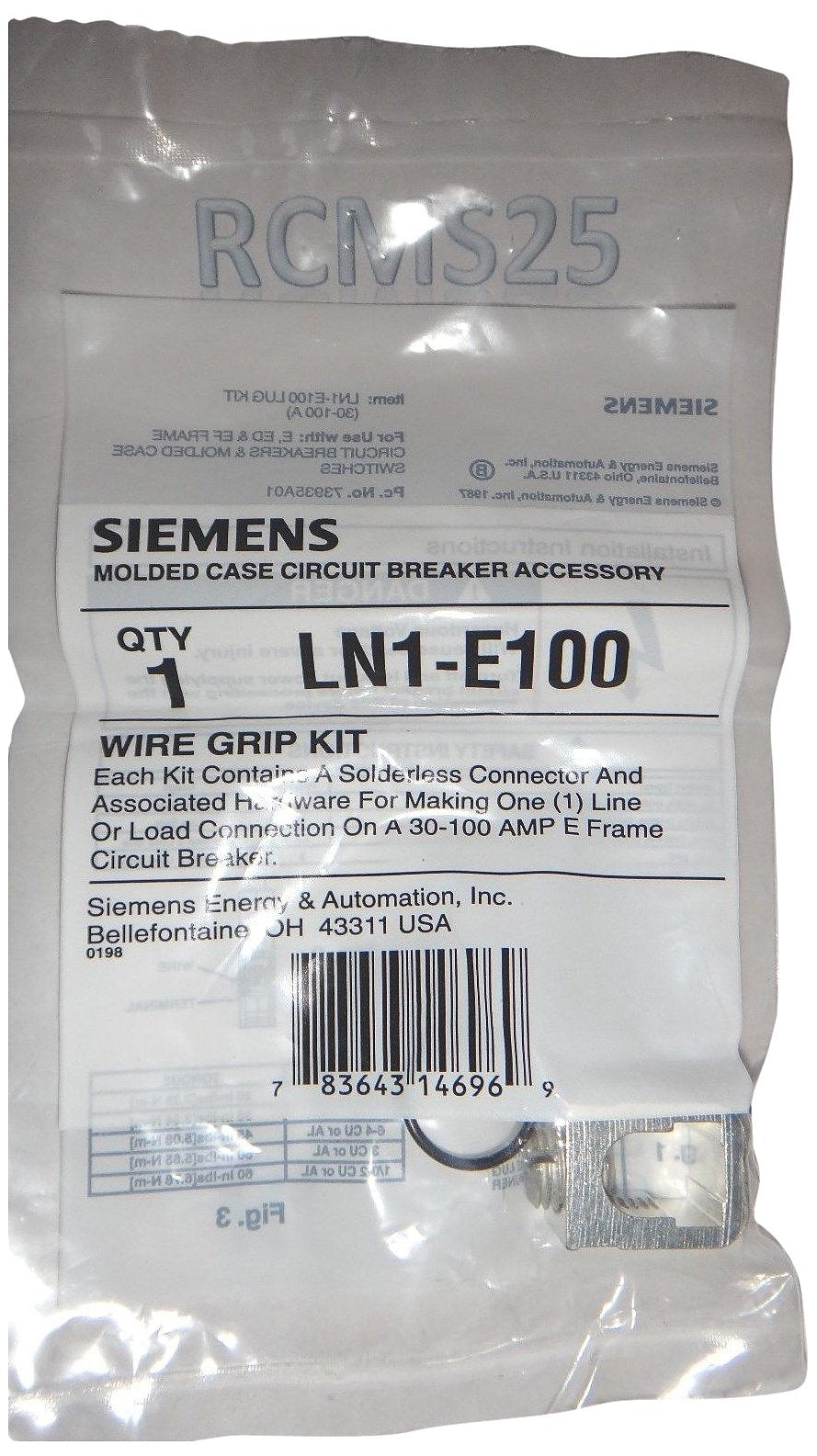

Siemens LN1E100 30 to 100 Amp 10 to 1/0 AWG 1-Conductor Circuit Breaker Lug

Product Description

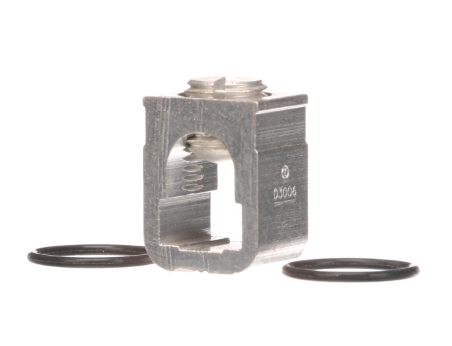

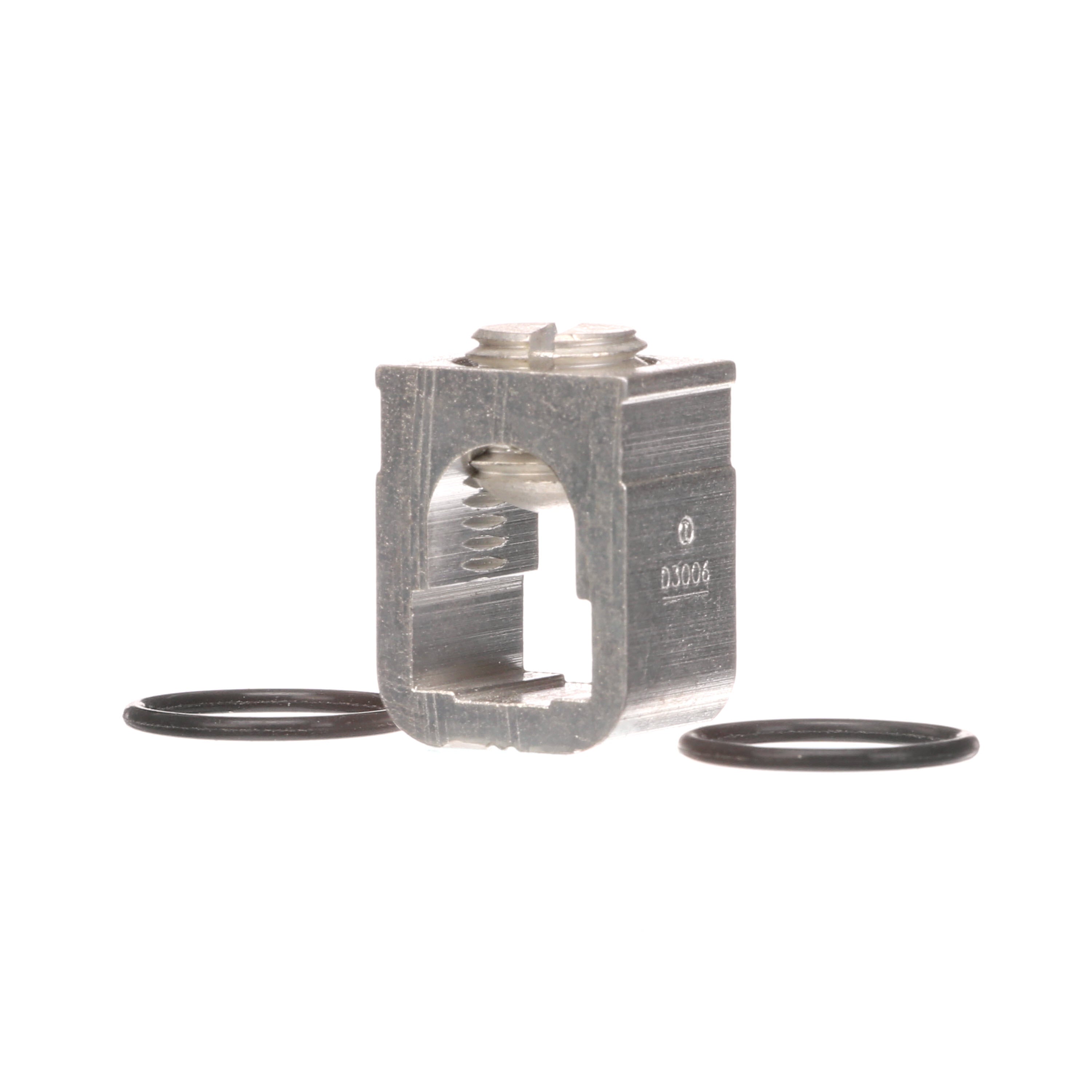

The Siemens LN1E100 is an aluminum body lug designed for use with 2/3-pole 30A - 100A ED frame breakers. It accommodates a wire range of 10 - 1/0 AWG (CU/AL) and is suitable for load side connections. This lug is designed for use with ED frame circuit breakers.

• Aluminum body lug
• For use with 2/3-pole 30A - 100A ED frame breakers
• Accommodates 10 - 1/0 AWG (CU/AL) wire range

Product Highlights

Aluminum body lug for Sentron molded case circuit breakers, designed for ED frames with a wire range of 10 - 1/0 AWG.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: LN1E100
• Country of Origin: Mexico

Technical Specifications

• Type: ALUMINUM BODY LUG
• Brand: Siemens
• Frame: ED
• Width: 7.000
• Height: 1 Inch
• Length: 4
• Current: 100 Amp
• Amperage: 100 Amp
• Material: Aluminum
• Sub Brand: Sentron
• Used With: 2/3 Pole Line Sides ED Frame Breakers
• Applications: FOR USE WITH ED FRAME
• Conductor Size: 10-1/0 AWG
• Number of Poles: 3 Pole
• Manufacturer: Siemens
• Special Features: LINE SIDE
• Item Type: ALUMINUM BODY LUG
• Body Material: Aluminum
• Conductor Material: Copper/Aluminum
• Maximum Breaker Current Rating: 100 Ampere
• Maximum Conductor Size: 1/0 AWG (Copper/Aluminum)
• Minimum Conductor Size: 10 AWG (Copper/Aluminum)
• Number Of Conductors: 1
• Used On: ED Frame Sentron Series Molded Case Circuit Breaker
• Conductor Range: 10 to 1/0 AWG Aluminum/Copper
• Suitable For Use With: 3-Pole 100 A ED2, ED4, ED6, HED4, EM6 and EMK-Frame Molded Case Circuit Breaker
