Siemens LMXD63B600L brkr lmd6 3p 600v 600a fx lug

Product Description

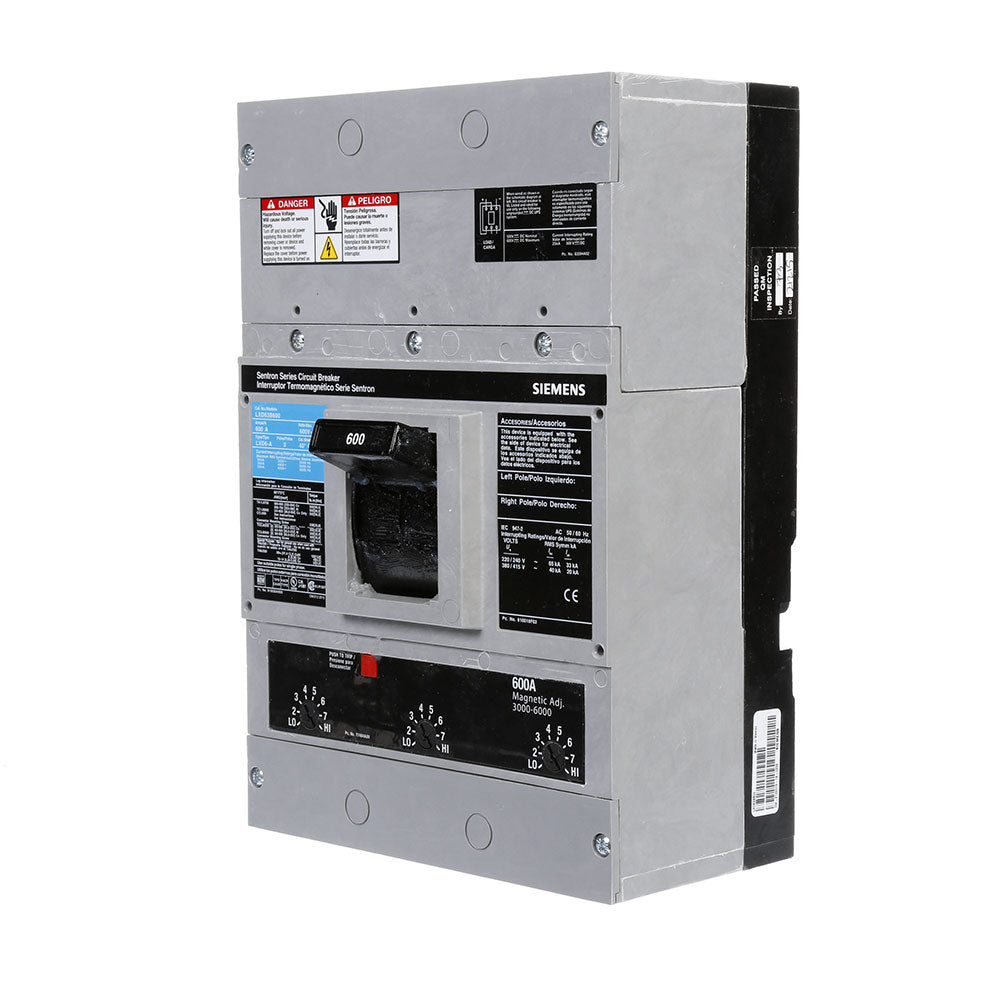

The Siemens LMXD63B600L is a circuit breaker BRKR LMD6 3P 600V 600A FX LUG. Designed for bolt-on mounting in the Sentron LXD series, this thermal magnetic circuit breaker features long time, short time, and instantaneous trip functions. It has an interrupting rating of 25kAIC at 600V and 35kAIC at 480V.

• Designed for bolt-on mounting in the Sentron LXD series
• Thermal magnetic circuit breaker
• Long time, short time, and instantaneous trip functions

Product Highlights

The Siemens LMXD63B600L circuit breaker is UL and IEC certified, suitable for 3-phase applications, and rated for operation at 40°C ambient temperature.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: LMXD63B600L
• Country of Origin: Mexico

Technical Specifications

• UNSPSC Code: 39120000
• Alternate Mfr Part Number: LMXD63B600L
• Brand: SIEMENS
• Manufacturer Part Number: LMXD63B600L
• Part Number: LMXD63B600
• Manufacturer: Siemens
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family: Sentron Series
• Type: LMXD
• Voltage: 600
• Amperage: 600
• Phase: 3
• Poles: 3
• AIC rating: 50kA@480V
• Connection: Bolt-On
• Functions: Long Time and Instantaneous Trip
• Frame Size: LMD Frame
• Protection: Thermal Magnetic
• Subcategory: Molded Case
