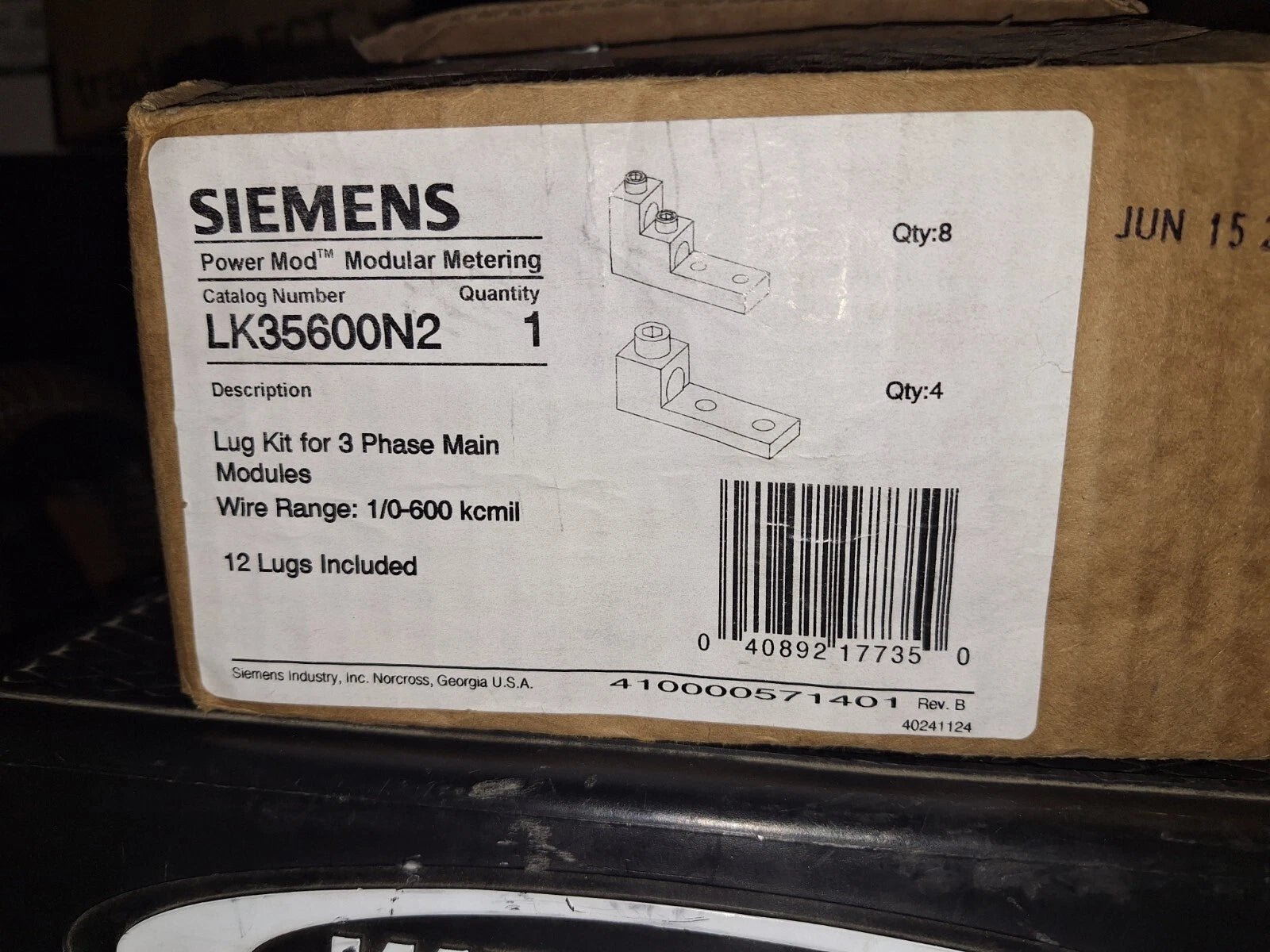

Siemens LK35600N2 Powmod Lug Kit 3Ph 5Co

Product Description

The Siemens LK35600N2 Powmod Lug Kit is a modular metering lug kit designed for 3-Phase equipment. It features 5 conductors rated for 1400 to 1600A and accommodates a wire size of 600 kcmil. The lug kit is constructed with tin-plated material and is suitable for multi-family metering line devices.

• Modular metering lug kits
• For 3-Phase equipment
• 5 Conductor(s) rated (1400 - 1600A)

Product Highlights

Modular metering lug kit for 3-Phase equipment with 5 conductors and a wire size of 600 kcmil.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: LK35600N2
• Country of Origin: USA

Technical Specifications

• Type: POWERMOD
• Brand: Siemens
• Amperage: 1400-1600 Amp
• Insulated?: Yes
• Applications: LUGKIT
• Number of Phases: 3 Phase
• Conductor Size: 600 KCMIL
• Conductor Material: Tin Plated
• Body Material: Aluminum
• Quantity: 1 per Pack
• Used On: Multi-Family Metering Line Device
• Current Rating: 1400 to 1600 Amp
• Number of Conductor: 5
• Number of Wire per Phase: 5
• Finish: Tin Plated
• Wire Size: 600
• Amperage Rating: 1400 to 1600
• Suitable For Use With: Power Mod�� 5-Conductor 3-Phase Low Voltage Multi-Family Metering Equipment
