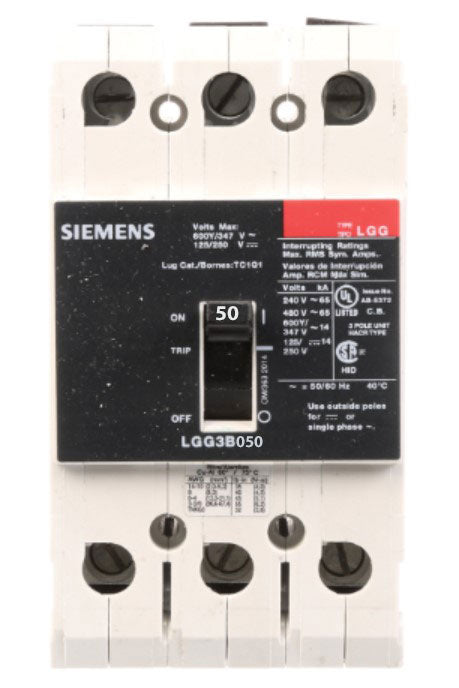

Siemens LGG3B050L Molded Case Circuit Breaker 50 A

Product Description

The Siemens LGG3B050L is a low voltage molded case circuit breaker operating at 480V AC and 50/60 Hz. Rated at 50 A with a 65 kA interrupt rating, this 3-pole breaker features a thermal magnetic trip and is suitable for general purpose and industrial applications. It uses cable in/out/line/load side lug connections and accepts 8 to 1/0 AWG Al/Cu wire.

• LGG frame with very high breaking capacity
• Thermal Magnetic Trip
• Suitable for DIN Rail/Threaded Mounting

Product Highlights

The Siemens LGG3B050L circuit breaker provides robust protection for industrial applications with a high breaking capacity and versatile connection options.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: LGG3B050L
• Country of Origin: USA

Technical Specifications

• Brand: Siemens
• Part Number #: LGG3B050L
• SKU #: 2321662
• Frame: LGG
• Interrupt Rating: 65 kA
• Phase: 3
• Temperature Rating (Degrees F): 40 deg C
• Wire Size: 8 to 1/0 AWG Al/Cu
• Connection type: Cable In/Out/Line/Load Side Lug
• Mounting type: DIN Rail/Threaded
• Frequency: 50/60 Hz
• Voltage: 480 V AC
• Amperage: 50 A
• Poles: 3
• Trip Type: Thermal Magnetic
