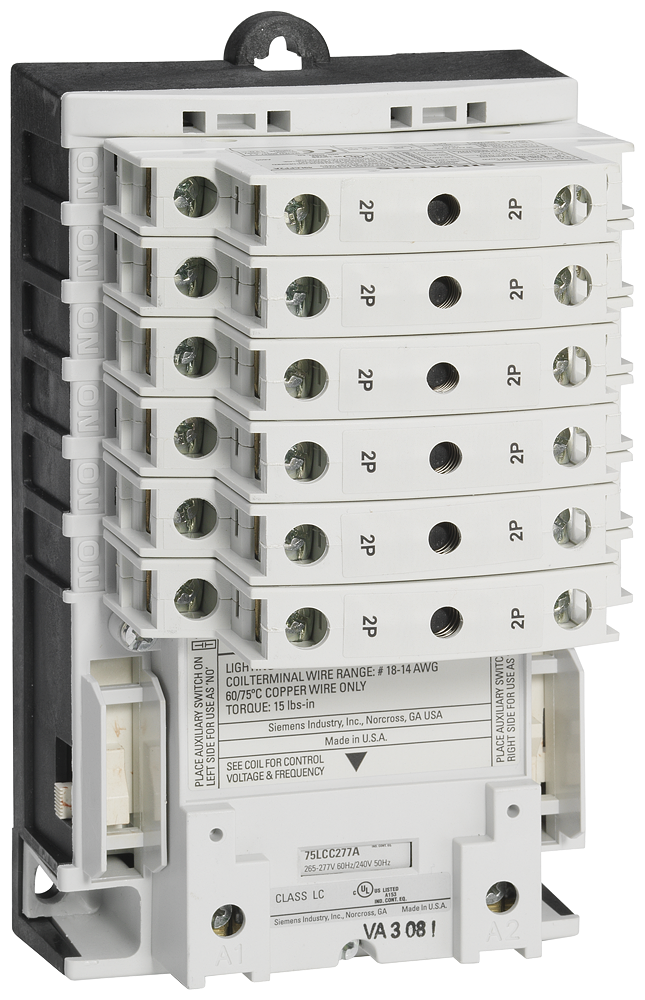

Siemens LCE00C002277A Lighting Contactor, 240/277 VAC V Coil, 30 A, 2 Power Poles

Product Description

The Siemens LCE00C002277A is an electrically held lighting contactor designed for lighting control applications. This contactor supports a two-phase configuration, making it suitable for various electrical setups. The unit can handle loads up to thirty amperes with a coil voltage of two hundred forty to two hundred seventy-seven volts.

• Electrically held operational mode
• Convertibility to mechanically held mode
• Constructed with copper conductors for improved conductivity

Product Highlights

This lighting contactor is versatile, allowing for seamless integration into existing electrical systems, particularly in commercial and industrial environments.

Product Information

Standard Information

• Brand: Siemens
• MPN: LCE00C002277A

Technical Specifications

• Coil Power Rating: 248 VA Pickup, 24 VA Holding
• Coil Voltage: 240/277 VAC
• Connection Type: Screw-Type Terminals
• Contact Configuration: 2NO
• Contact Type: Non-Combination
• Country of Origin: USA
• Dimensions: 7.39 inches H x 4.18 inches W x 3.86 inches D
• Enclosure Type: Open
• Frequency Rating: 50/60 Hz
• Maximum Load Current: 30 A
• Mounting Type: Surface
• Number of Auxiliary Contacts: 4
• Number of Poles: 2
• Operating Cycles: 100000 Cycles Contactor/Typical
• Operating Temperature: -25 to 40 degrees Celsius
• Package Weight: 2.0 lb
• Type: Contactor
