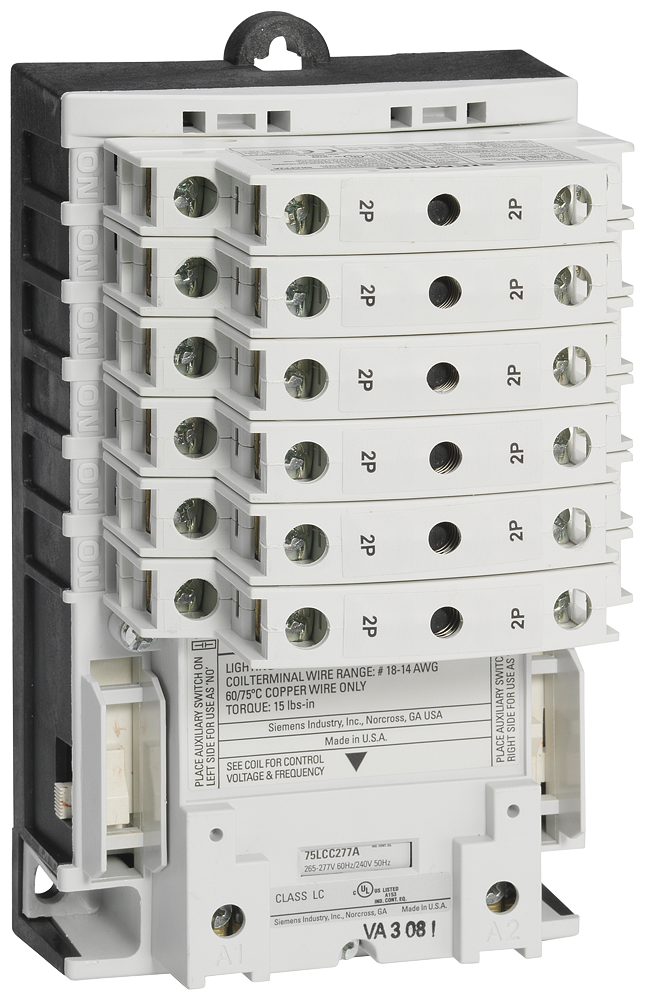

Siemens LCE00C002120A CONTACTOR,LTG,EH, 30A (115 / 120 VAC Coil)

Product Description

Siemens LCE00C002120A is an electrically held lighting contactor designed for reliable operation. It features a thirty amp rating suitable for tungsten loads up to twenty amps. The contactor operates on a coil voltage of one hundred fifteen to one hundred twenty volts at sixty hertz, making it ideal for various lighting applications.

• Electrically held design ensures consistent performance.
• Includes two normally open and zero normally closed poles.
• Handles a maximum load current of thirty amps.

Product Highlights

This contactor is suitable for use in residential and commercial lighting systems. Its screw-type terminals facilitate easy installation and connection.

Product Information

Standard Information

• Brand: Siemens
• Type: Contactor

Technical Specifications

• Coil Voltage: 115 to 120 VAC
• Coil Power Rating: 248 VA Pickup, 28 VA Holding
• Contact Configuration: 2NO-2NC
• Enclosure Type: Open
• Maximum Load Current: 30 A
• Operating Cycles: 100000 Cycles Typical
• Operating Temperature: -25 to 40 degrees Celsius
• Dimensions: 7.39 inches H x 4.18 inches W x 3.86 inches D
• Country of Origin: USA
