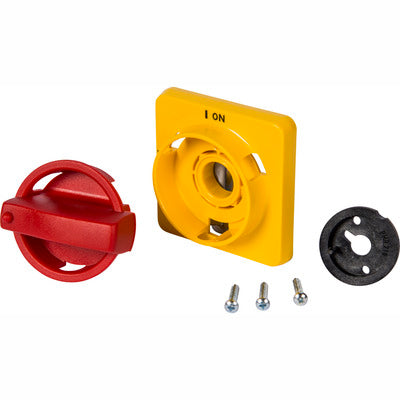

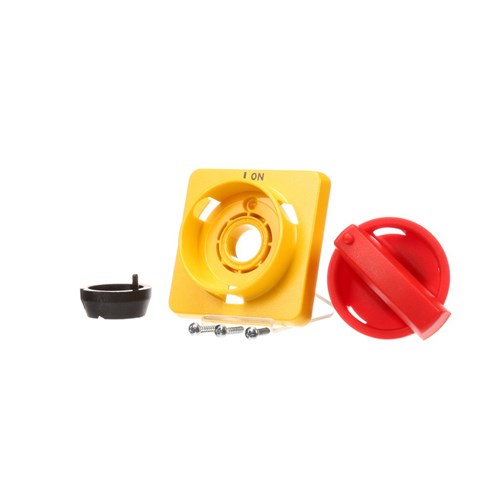

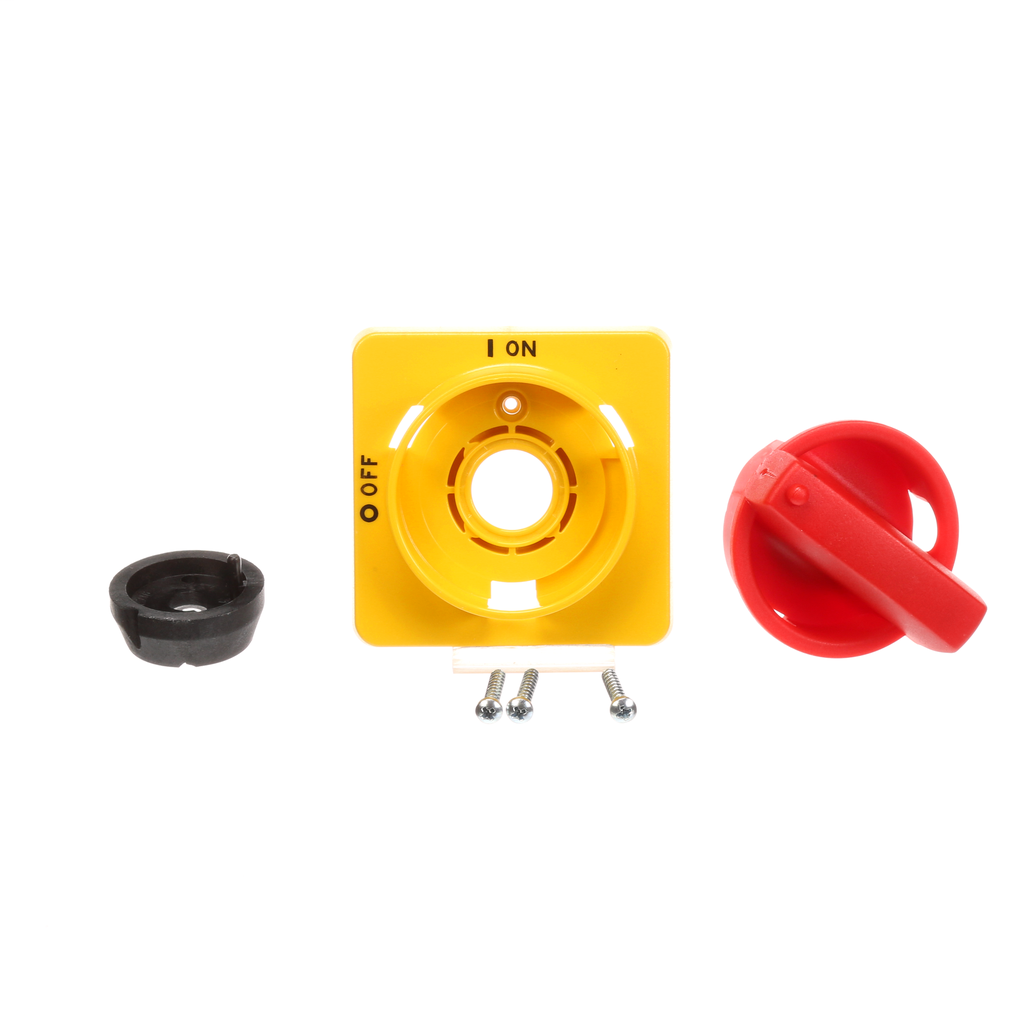

Siemens LBRH4 NEMA 1/3R/4X/12 Door Mounting Non-Fusible Disconnect Switch Rotary Switch Door Handle

Product Description

The Siemens LBRH4 is a NEMA 1/3R/4X/12 door mounting non-fusible disconnect switch rotary switch door handle. It is designed for electrical distribution applications. The handle is padlockable in the OFF position and features a cover interlock. It is UL and CUL Listed under file No. E191706 as manual motor controllers per UL Standard UL508.

• NEMA 1/3R/12/4X enclosure
• Door mounting
• Input output, on/OFF marking

Product Highlights

This Siemens disconnect switch handle is suitable for rotary switches and indoor/outdoor/industrial corrosive resistance applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: LBRH4
• Country of Origin: Estonia

Technical Specifications

• Type: Door Mounted, On/Off
• Brand: Siemens
• Color: Red/Yellow
• Enclosure: TYPE 1/3R/12/4X
• Frequency: 60 Hz
• Sub Brand: DISCONNECT SWITCH
• Insulated?: No
• Applications: Electrical Distribution
• Operating Cycles: 10k
• Operating Temperature: (-20F-120F) AMBIENT TEMPERATURE
• Application: Rotary Switches and Indoor/Outdoor/Industrial Corrosive Resistance Applications
• Series: LBR
• Includes: Cover Interlock
• Features: NEMA 1/3R/12/4X enclosure Door mounting Input output, on/OFF marking
• Accessory Type: Handle
• For Use With: LBR Disconnect Switch
• Handle Color: Red/Yellow
• Manufacturer Part Number: LBRH4
• Primary Type: Handle
• LBR Series: LBR Series
• Standards: UL Listed, CUL Listed, IP65 Rating, NEMA 1, 3R, 12, 4X Rating
• Primary brand: Siemens
• Manufacturer description: OEM Dscnct & Accs LBR/LBT Switches
• Location of origin: Estonia
