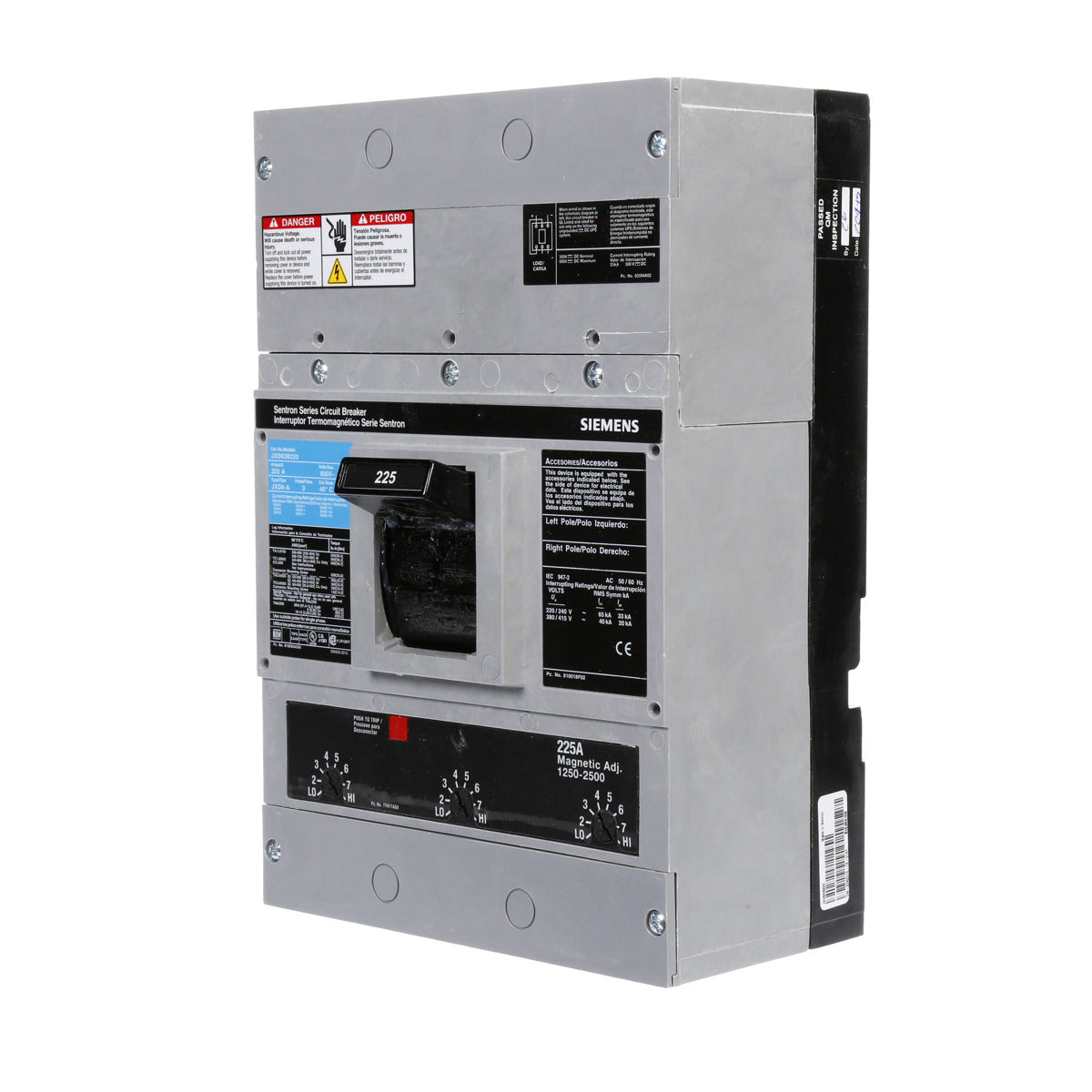

Siemens JXD63B225 Low Voltage Sentron Molded Case Circuit Breaker 225A 3-Pole

Product Description

The Siemens JXD63B225 is a low voltage Sentron molded case circuit breaker with a thermal-magnetic trip unit. This assembled standard 40C breaker features a JD frame with standard breaking capacity. Rated at 225A, it is a 3-pole breaker with an interrupt rating of 25KAIC at 600V and 35KAIC at 480V. It has a non-interchangeable trip unit and no lugs installed.

• Thermal-magnetic trip unit
• Standard breaking capacity
• No lugs installed

Product Highlights

The Siemens JXD63B225 circuit breaker is suitable for standard applications requiring reliable overcurrent protection. It is UL/HACR standard and RoHS compliant.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: JXD63B225
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: JXD63B225
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: Sentron
• Country of Origin: Mexico
• Made in USA: No
• Application: Standard 40C Breaker
• Frame: JD
• Frequency Rating: 50/60 HZ
• Interrupt Rating: 25KAIC
• Number of Poles: 3
• Standard: UL/HACR
• UPC: 783643213050
• GTIN: 00783643213050
• Item Type: JXD6
• Operating Temperature: 40C
• Trip Type: Thermal-Magnetic
• Poles: 3
• Amps: 225
• Volts: 600
• Current Rating: 225 A
