Siemens Industry SNW1224B1100 Single-Phase Low Voltage Plug-On Load Center Main Breaker 100A 12 Spaces/24 Circuits

Product Description

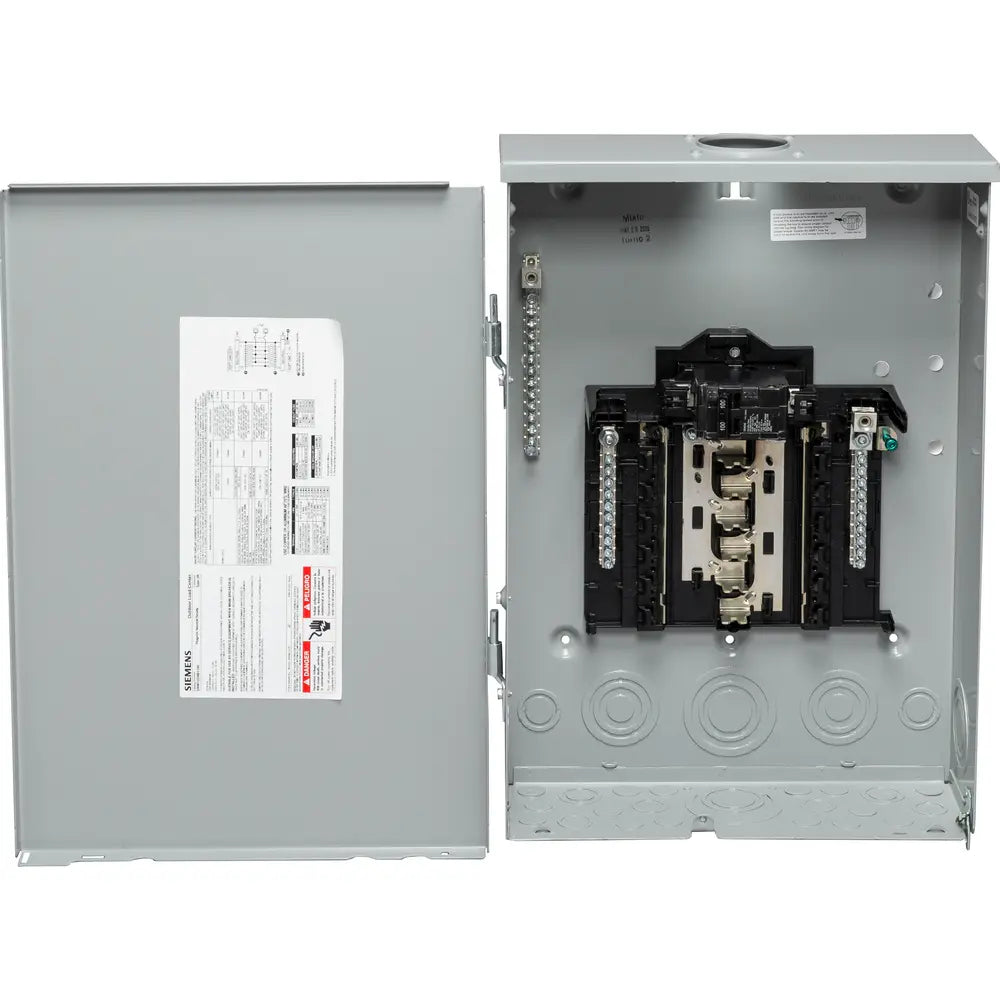

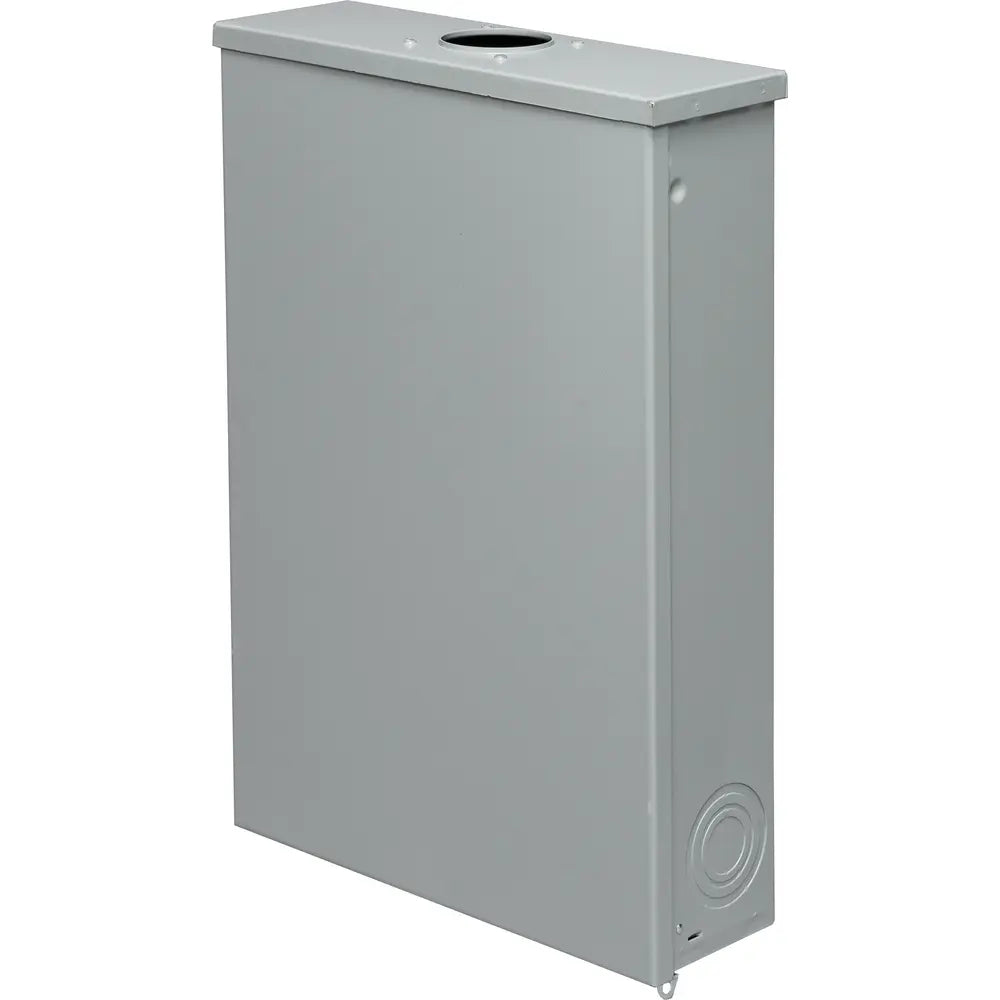

The Siemens Industry SNW1224B1100 is a single-phase low voltage plug-on load center. It features a main breaker rated at one hundred amperes and provides twelve spaces, allowing for a maximum of twenty-four circuits. This load center operates at a voltage rating of one hundred twenty to two hundred forty VAC with an interrupt rating of twenty-two kAIC. It includes an aluminum bus and is housed in a NEMA Type three R enclosure suitable for outdoor use.

• Designed for single-phase applications
• Includes a maximum of twenty-four circuits with twelve available spaces
• Meets UL standards for safety and reliability

Product Highlights

This load center is user-friendly and ideal for residential or light commercial installations. It provides robust protection and efficient operation in various applications.

Product Information

Standard Information

• Type: Load Centers
• Standard: UL

Technical Specifications

• Depth: 4.72 inches
• Width: 14.96 inches
• Height: 22.04 inches
• Weight: 25.13 pounds
• NEMA Rating: NEMA 3R
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 Amperes
• Interrupt Rating: 22 kAIC
• Number Of Spaces: 12
• Wiring Configuration: 3-Wire
• Country of Origin: MX
