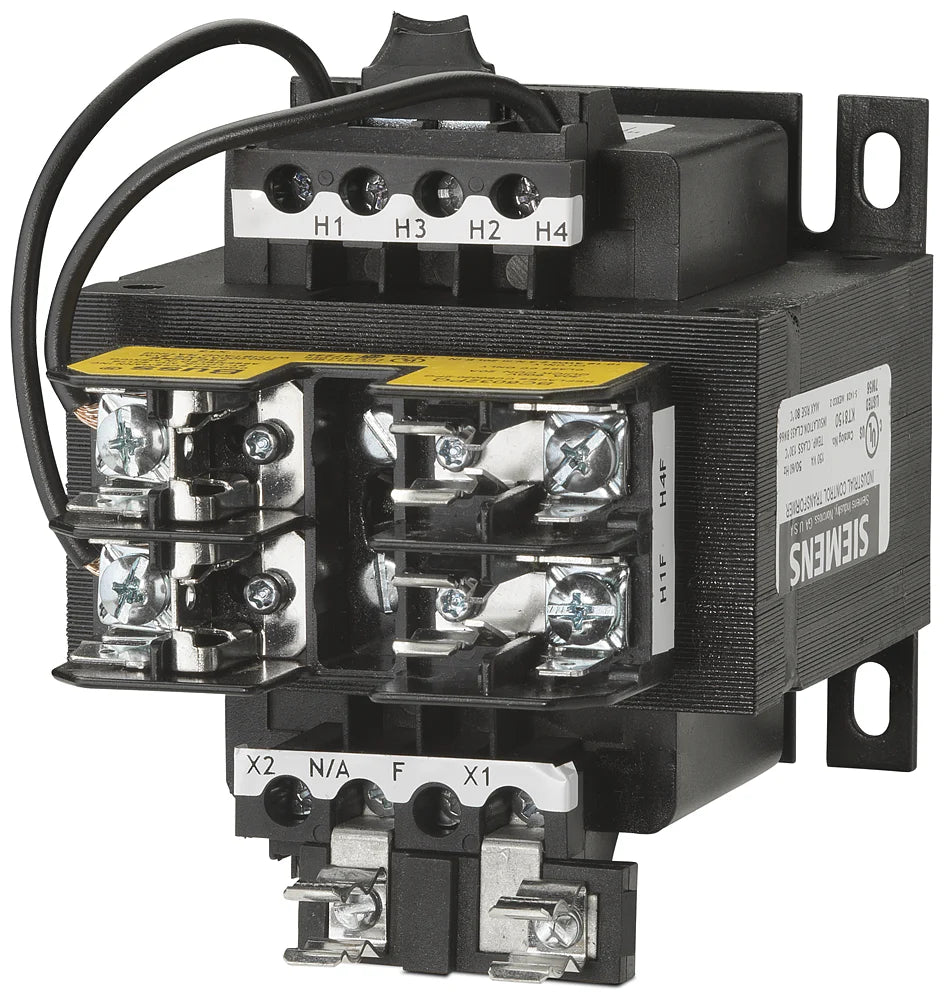

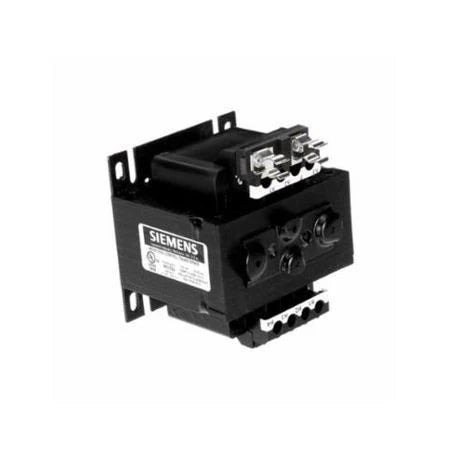

Siemens MT0150A Industrial Power Transformer 150 VA 240 x 480 VAC Primary 110/115/120 VAC Secondary

Product Description

The Siemens MT0150A Industrial Power Transformer, engineered for high efficiency and reliability, is designed to handle demanding power distribution needs. This device efficiently converts 240 x 480, 230 x 460, or 220 x 440 VAC primary voltage to 120/115/110 VAC secondary voltage, making it an ideal choice for various industrial environments.

• Efficient silicon steel-laminated cores and copper magnet wire.
• Epoxy encapsulated to withstand moisture, dust, and contaminants.
• Integrated mounting brackets and robust design ensure durability and stable installation.

Product Highlights

Rated for 150 VA and equipped with high-quality insulation materials, the MT0150A enhances operational efficiency and safety in industrial applications. Its compact design is particularly well-suited for environments where space is at a premium yet high power is required.

Product Information

Standard Information

• Power Rating: 150 VA
• Frequency: 50 to 60 Hz

Technical Specifications

• Input Voltage: 240/480 VAC
• Output Voltage: 110/115/120 VAC
• Temperature Rating: 55 degrees C
• Insulation Type: Epoxygen
• IP Rating: IP20
• Mounting Type: Surface
• Enclosure Type: Open
