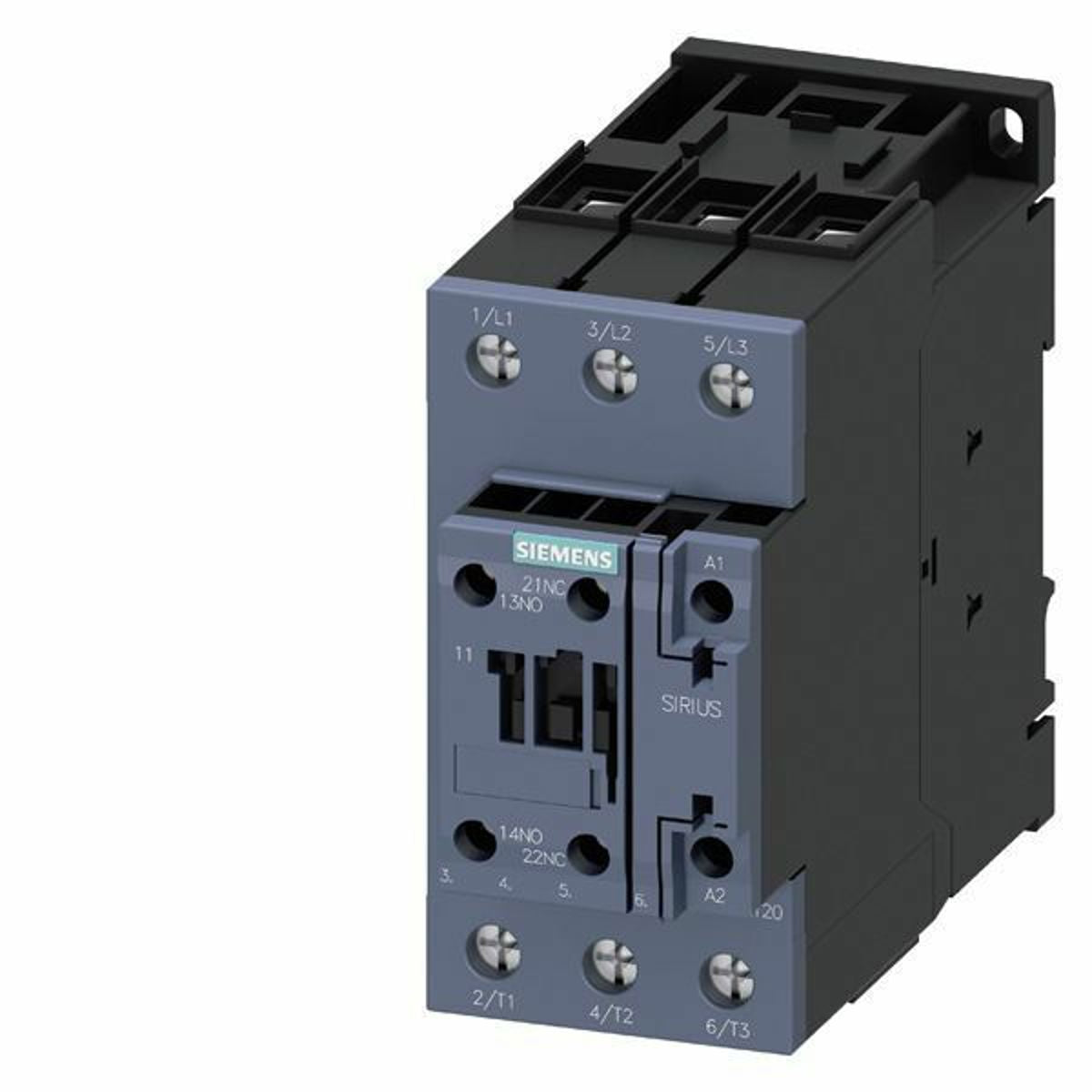

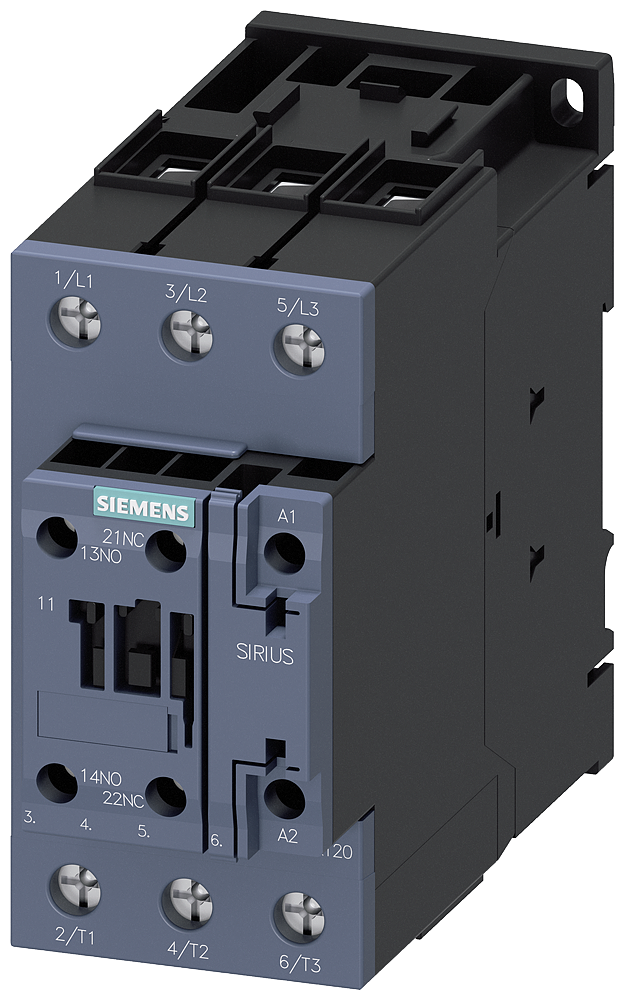

Siemens 3RT20371AK60 120 VAC 65 Amp 3-Pole 1NO 1NC Screw Terminal IEC Contactor

Product Description

The Siemens 3RT20371AK60 is a 120 VAC, 65 Amp, 3-Pole, 1NO 1NC screw terminal IEC Contactor designed for motor control applications. This contactor is an essential component in various industrial automation tasks. It is capable of switching motors effectively and ensures reliable operation in demanding environments.

• Rated at 65 Amps with a coil voltage of 110 VAC at 50 Hz and 120 VAC at 60 Hz.
• 3-pole configuration with integrated auxiliary contacts for added functionality.
• Designed for use in harsh conditions, approved for global standards including IEC and UL/CSA.

Product Highlights

This contactor offers seamless integration with the SIRIUS modular system. It supports various connection types and allows for efficient wiring with simplified front-panel terminals.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RT20371AK60

Technical Specifications

• Voltage: 110/120 VAC
• Amperage: 65 Amp
• Number of Poles: 3
• Contact Configuration: 1 NO + 1 NC
• Dimensions: 4.5 in (W) x 5.65 in (H) x 7.9 in (L)
• Weight: 2.190 lb
• Country of Origin: Germany
• Coil Voltage Specifications: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• Environmental Rating: -25 to 60 degrees C
• Power Rating: 18.5 kW at 230 V, 30 kW at 400 V
