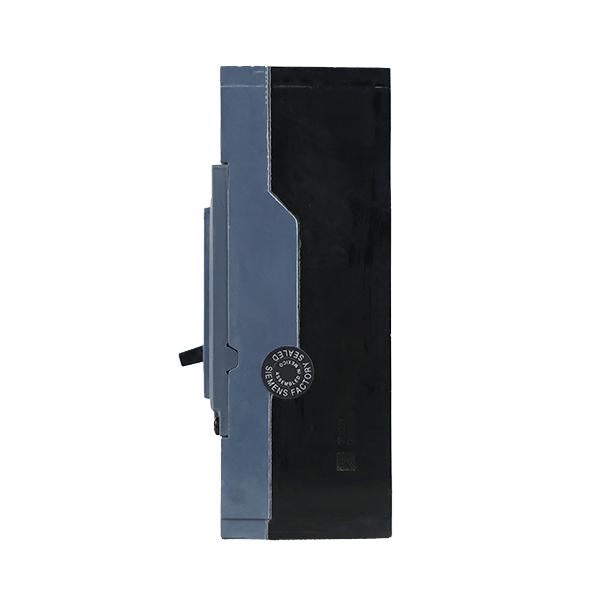

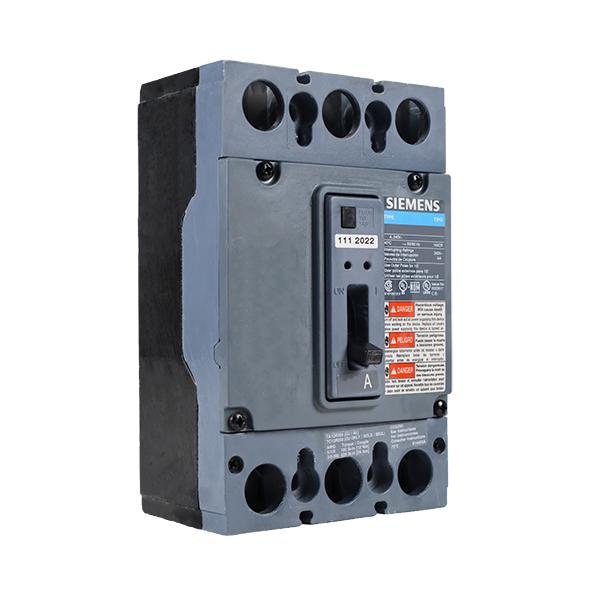

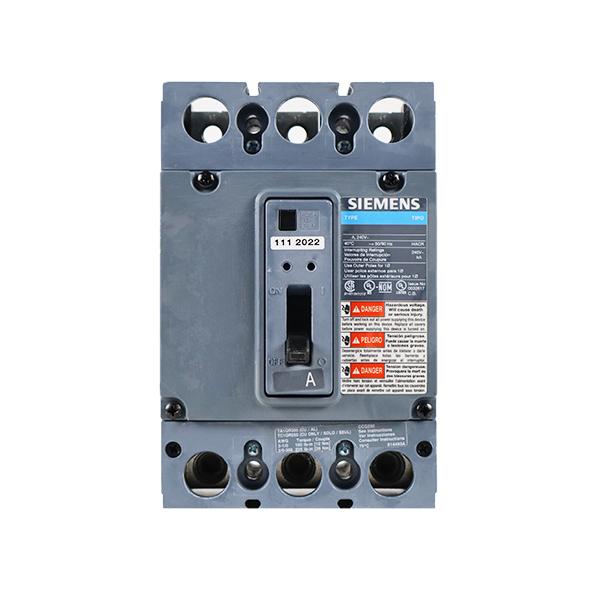

Siemens HQR23B150 Breaker QR 3P 150A 240V 65KA

Product Description

The Siemens HQR23B150 is a QR frame, molded case circuit breaker. This low voltage, thermal magnetic breaker has a current rating of 150 Amp at 40 degrees Celsius and a voltage rating of 240 Volt AC at 50/60 Hertz. It is designed with 3 poles and an interrupting rating of 65 Kiloamp at 240 Volt AC for general purpose applications.

• Thermal Magnetic breaker type
• Interrupting Rating of 65 Kiloamp at 240 Volt AC
• UL 489 and CSA C22.2 approvals

Product Highlights

The Siemens HQR23B150 circuit breaker provides reliable circuit protection in a compact design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HQR23B150
• Country of Origin: MEX

Technical Specifications

• Brand: SIEMENS
• Manufacturer: SIEMENS
• Model / MPN: HQR23B150
• Product Type: CIRCUIT_BREAKER
• Frame Type: QR
• Voltage Rating: 240 Volt AC 50/60 Hertz
• Maximum AC Voltage Rating: 240 Volt
• Current Rating: 150 Amp at 40 Deg C
• Number of Poles: 3
• Interrupting Rating: 65 Kiloamp at 240 Volt AC
• Frame Size: 250 Amp
• Approval: UL 489, CSA C22.2
• Poles: 3
• Voltage: 240 V
• Amperage: 150 A
• Mounting Style: Bolt-On
• Protection: Thermal Magnetic
• Trip Functions: LI - Long-Time and Instantaneous
