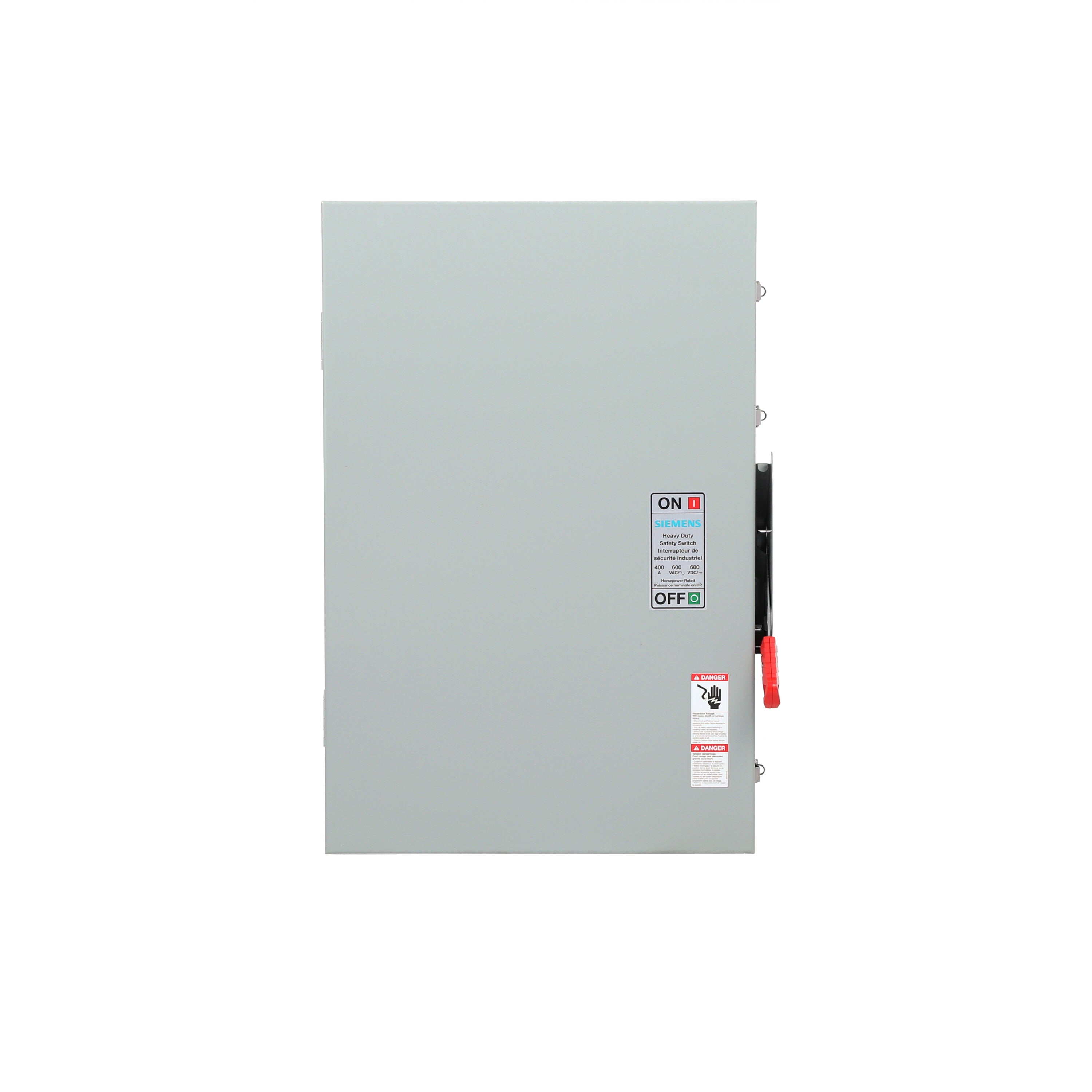

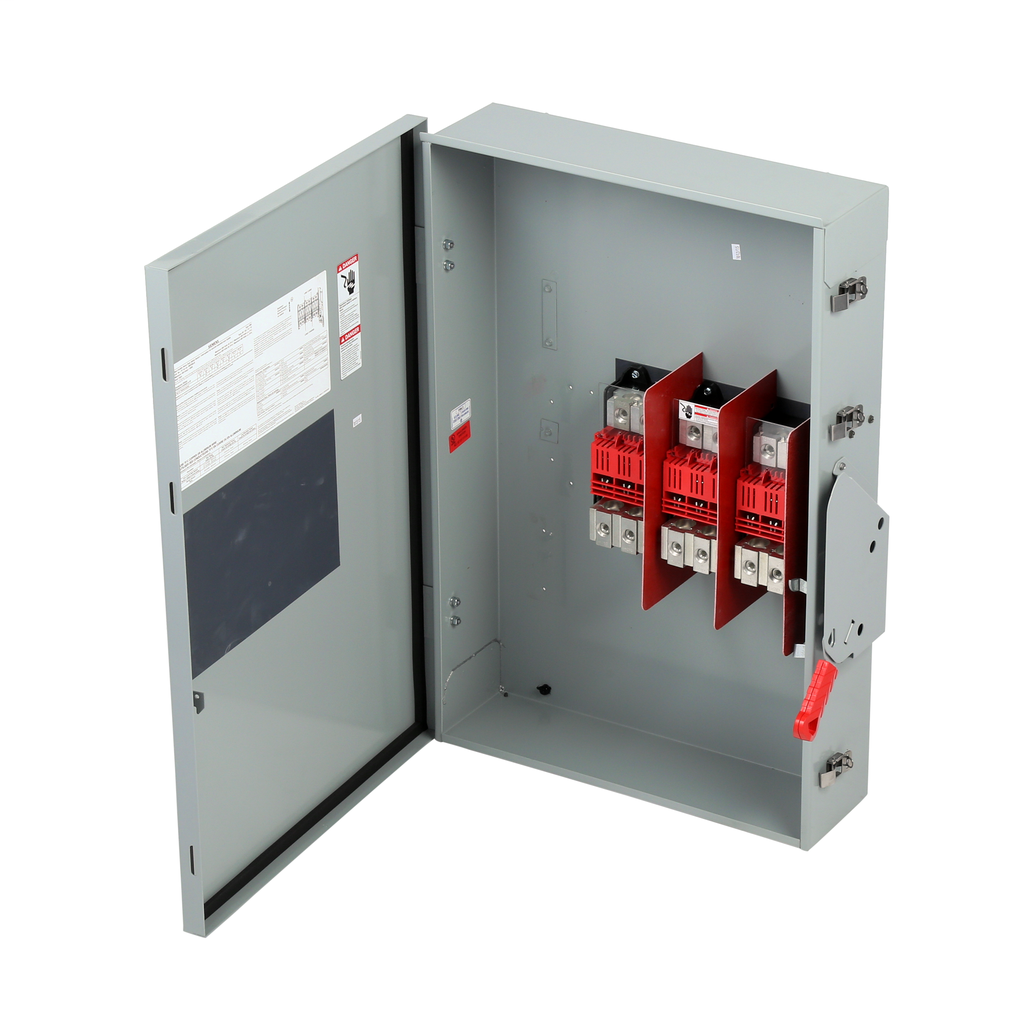

Siemens HNF365JA HD Switch, Non-F 600V 400A

Product Description

The SIEMENS HNF365JA is a CUL heavy-duty safety switch. This non-fusible switch features 3 poles, a voltage rating of 600V, and a current rating of 400A. Designed with a Type 12 enclosure, it is suitable for service entrance and load applications.

• Heavy Duty
• Non-Fusible
• 3 Poles
• 600V
• 400A
• Type 12

Product Highlights

Heavy-duty safety switch with a NEMA 12 enclosure, designed for 600V and 400A applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HNF365JA
• Country of Origin: Mexico

Technical Specifications

• Type: Heavy-Duty, Single Throw
• Voltage: 600 Volt
• Amperage: 400 Amp
• Material: Steel
• Enclosure: NEMA12
• Applications: For Service Entrance/Loads
• Mounting Type: Surface
• TC Connection: MECHANICALLUGS
• Connection Type: Mechanical Lugs
• Number of Poles: 3 Pole
• Number of Wires: 3 Wire
• Operating Cycles: 6000
• Temperature Rating: -29 to 85 degrees C
• Ambient Temperature: -29 C
• Operating Temperature: -29 degrees C
