Siemens HNF363J 240/480/600 VAC 250/600 VDC 100 Amp 3-Pole 3-Wire NEMA 3R/3S/12 Heavy Duty Non-Fusible Safety Switch

Product Description

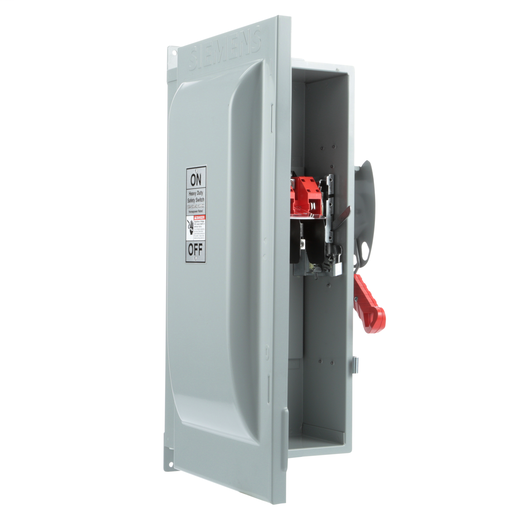

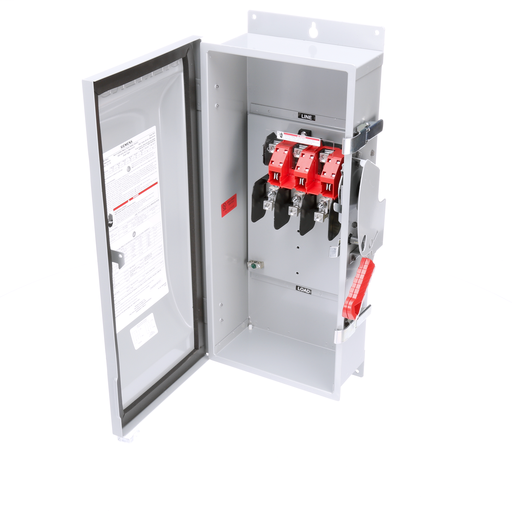

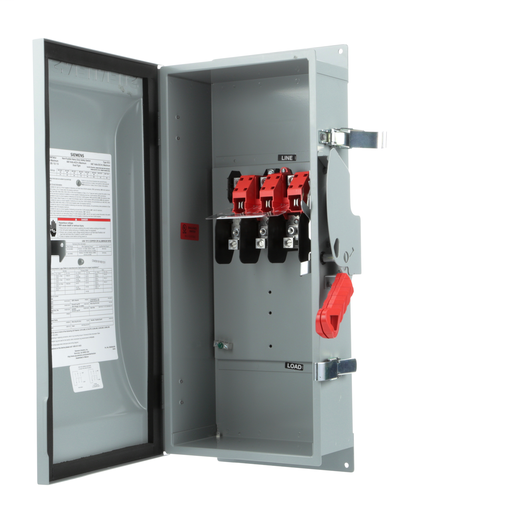

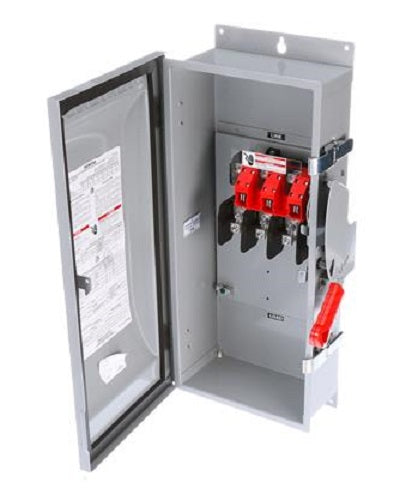

The Siemens HNF363J is a low voltage circuit protection heavy-duty safety switch. This 3-pole, non-fused switch is housed in a NEMA 12 industrial enclosure and is rated for 600VAC at 100A. It is suitable as a disconnecting means for service entrance/loads.

• 3-Pole Non-Fused
• NEMA 12 industrial enclosure
• Rated 600VAC (100A)

Product Highlights

Siemens HNF363J heavy duty safety switch for low voltage circuit protection with a NEMA 12 enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HNF363J
• Country of Origin: Mexico

Technical Specifications

• Action: SINGLE THROW
• Amperage: 100 Amp
• Applications: DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
• Connection Type: MECHANICAL LUGS
• Enclosure: NEMA12
• Frequency: 60 Hz
• Insulated?: Yes
• Material: Steel
• Mounting Type: SURFACE
• Number of Poles: 3 Pole
• Type: HEAVYDUTYSWITCH
• Voltage: 600 Volt
• Brand: Siemens
• Sub Brand: VBII
• HP [Specifications]: 100 hp @ 600V AC
• Duty [Specifications]: Heavy
• Item [Specifications]: Safety Switch
• Phase [Specifications]: 3
• Amps AC [Specifications]: 100 A
• Voltage [Specifications]: 600V AC
• Mounting [Specifications]: Surface
• IP Rating [Specifications]: 20
• Standards [Specifications]: UL listed
• Environment [Specifications]: Indoor
• Contact Form [Specifications]: 3PST
• Current Type [Specifications]: AC
• Current Rating [Specifications]: 100 A
• Enclosure Type [Specifications]: Enclosed
• For Fuse Class [Specifications]: Not Applicable
• Mounting Style [Specifications]: Surface Mount
• Number of Wires [Specifications]: 3
• Housing Material [Specifications]: Steel
• Protection Method [Specifications]: Nonfusible
• Enclosure Material [Specifications]: Galvanized Steel
• NEMA Enclosure Type [Specifications]: 3R
• UL 98 Certification [Specifications]: Yes
• Fusible / Nonfusible [Specifications]: Nonfusible
• Horsepower @ 600V AC [Specifications]: 100 hp
• Electrical Connection [Specifications]: Lugs
• NEMA Enclosure Rating [Specifications]: 12
• Metallic / Non-Metallic [Specifications]: Metallic
• Material of Construction [Specifications]: Galvanized Steel
• Combo Environmental Protection [Specifications]: Indoor / 12
• Mfr Brand Name: SIEMENS
• Catalog No.: HNF363J
• Product Name: SIEMENS HNF363J 100A 600V 3P 3Ph N12 NonFused NEW
• Model: HNF363J
• Poles: 3
• Amps: 100
• NEMA: N12
• Volts: 600
• Phase: 3
• Disco Type: NonFused
