Siemens HNF363G Hdss Nf 3P3W 600V 100A N1 G Bar

Product Description

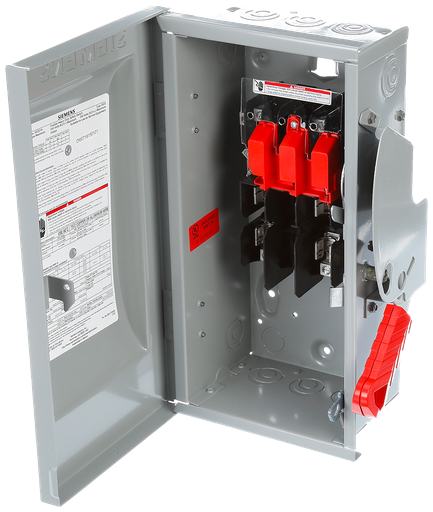

The SIEMENS HNF363G is a heavy-duty safety switch, 3-Pole Non-Fused, rated for 600VAC at 100A. It is designed for low voltage circuit protection and comes in a NEMA type 1 enclosure suitable for indoor use. This switch includes a factory-installed ground bar.

• 3-Pole Non-Fused switch
• Rated for 600VAC and 100A
• Factory installed ground bar

Product Highlights

Heavy-duty safety switch for low voltage circuit protection with a factory-installed ground bar.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HNF363G
• Country of Origin: USA

Technical Specifications

• Catalog Number: HNF363G
• Manufacturer: Siemens
• Brand: Siemens
• Amperage Rating: 100
• Mounting: Surface
• Number of Poles: 3
• UPC: 783643333833
• GTIN: 00783643333833
• Action: SINGLE THROW
• Actuator: SINGLETHROW
• Amperage: 100 Amp
• Applications: DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
• Connection Type: MECHANICAL LUGS
• Enclosure: NEMA1
• Frequency: 60 Hz
• Insulated?: No
• Material: Steel
• Type: HEAVYDUTYSWITCH
• Voltage: 600 Volt
• Sub Brand: VBII
• Maximum Current: 100 A
• Series: HNF Series
• Voltage Rating: 600 V
• Category: Circuit Protection Accessories
• Accessory Type: Switch
• For Use With/Related Products: -
