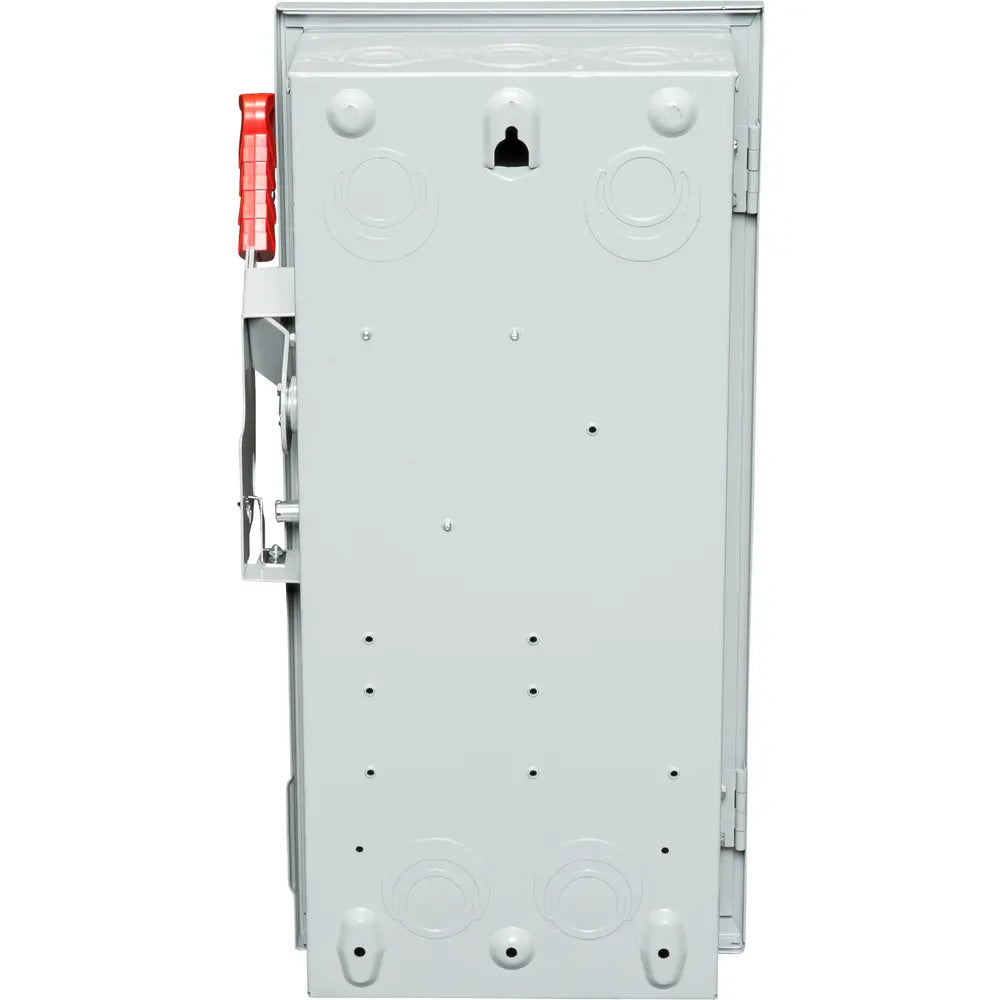

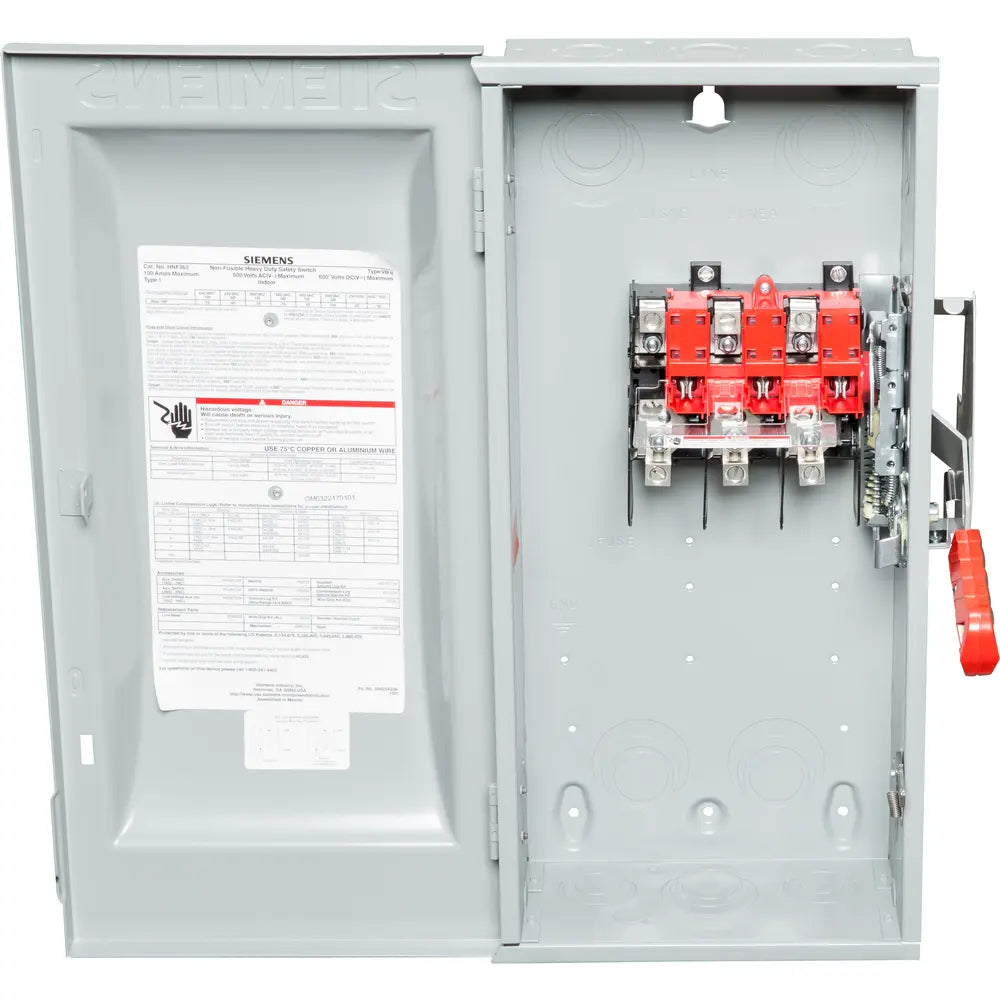

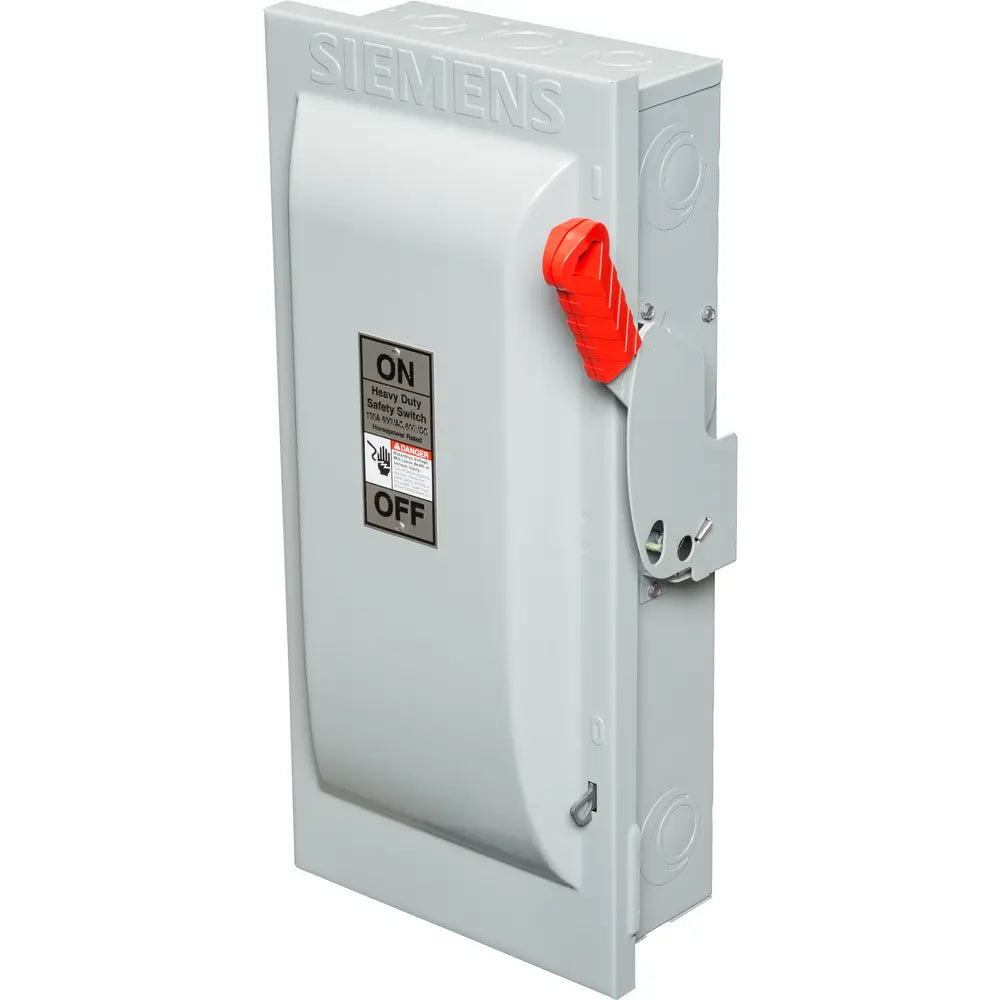

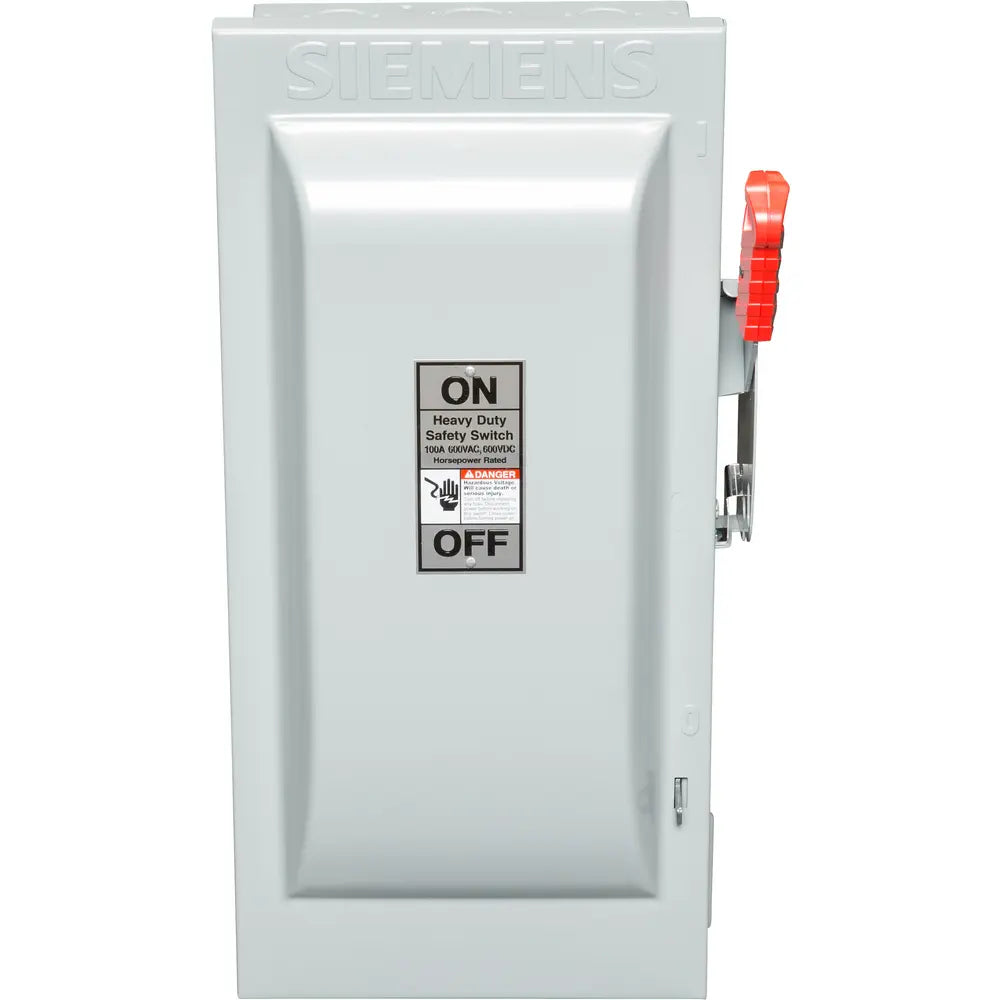

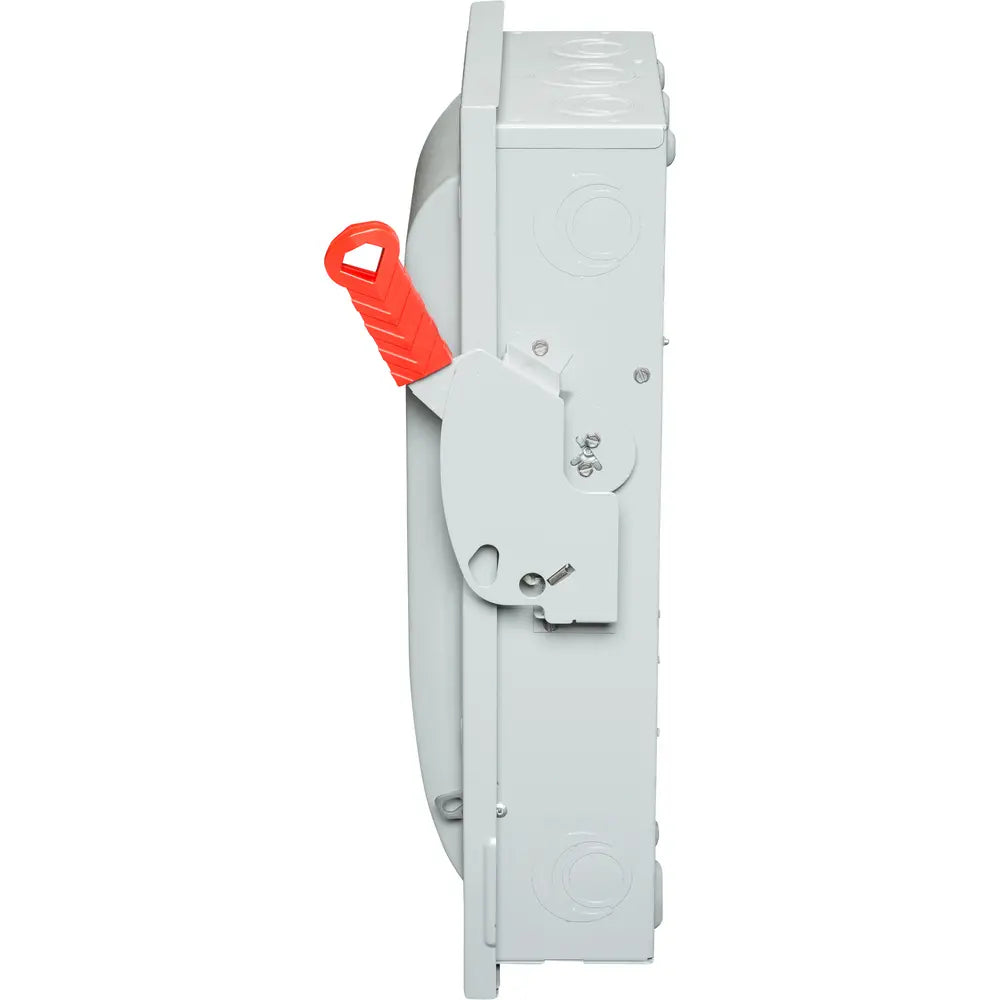

Siemens HNF363 Heavy Duty Non-Fusible Safety Switch 100A NEMA 1

Product Description

The Siemens HNF363 is a heavy-duty non-fusible safety switch designed for reliable circuit protection. It is rated at 100 amperes and features a three-pole configuration suitable for various electrical applications. This switch operates up to 600 volts alternating current (VAC) and is housed in a NEMA 1 indoor enclosure. Ideal for industrial and commercial environments, this switch can efficiently handle operational demands.

• Rated 100A and 600VAC for effective power management.
• Constructed with a lever actuator for easy operation.
• NEMA 1 rating ensures suitability for indoor use.

Product Highlights

This safety switch protects electrical circuits from overload and short circuits, providing peace of mind in commercial settings.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: HNF363
• Type: Non-Fusible
• Depth: 7.48 inches
• Width: 13.78 inches
• Height: 25.59 inches
• Weight: 19.84 pounds
• Actuator: Lever
• Material: Steel
• Standard: UL
• Connection: Mechanical
• Insulation: Non-Insulated
• NEMA Rating: NEMA 1
• Voltage Rating: 600 VAC
• Amperage Rating: 100 Amperes
• Number Of Poles: 3-Pole
• Frequency Rating: 50/60 Hertz
• Number Of Phases: 3-Phase
• Contact Configuration: TPST
• Environmental Conditions: Dry Location
• Country of Origin: MX
