Siemens HNF362S Heavy Duty Non-Fusible Safety Switch 60 Amp

Product Description

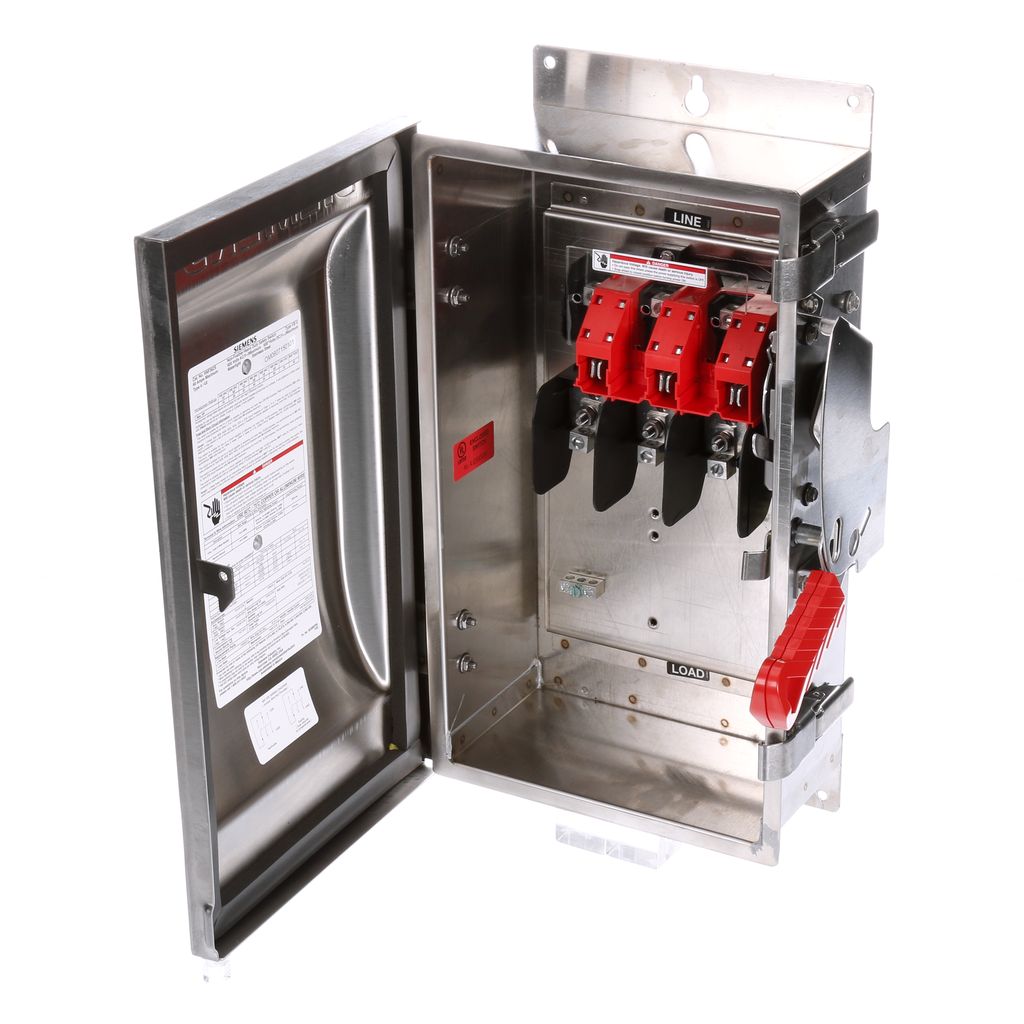

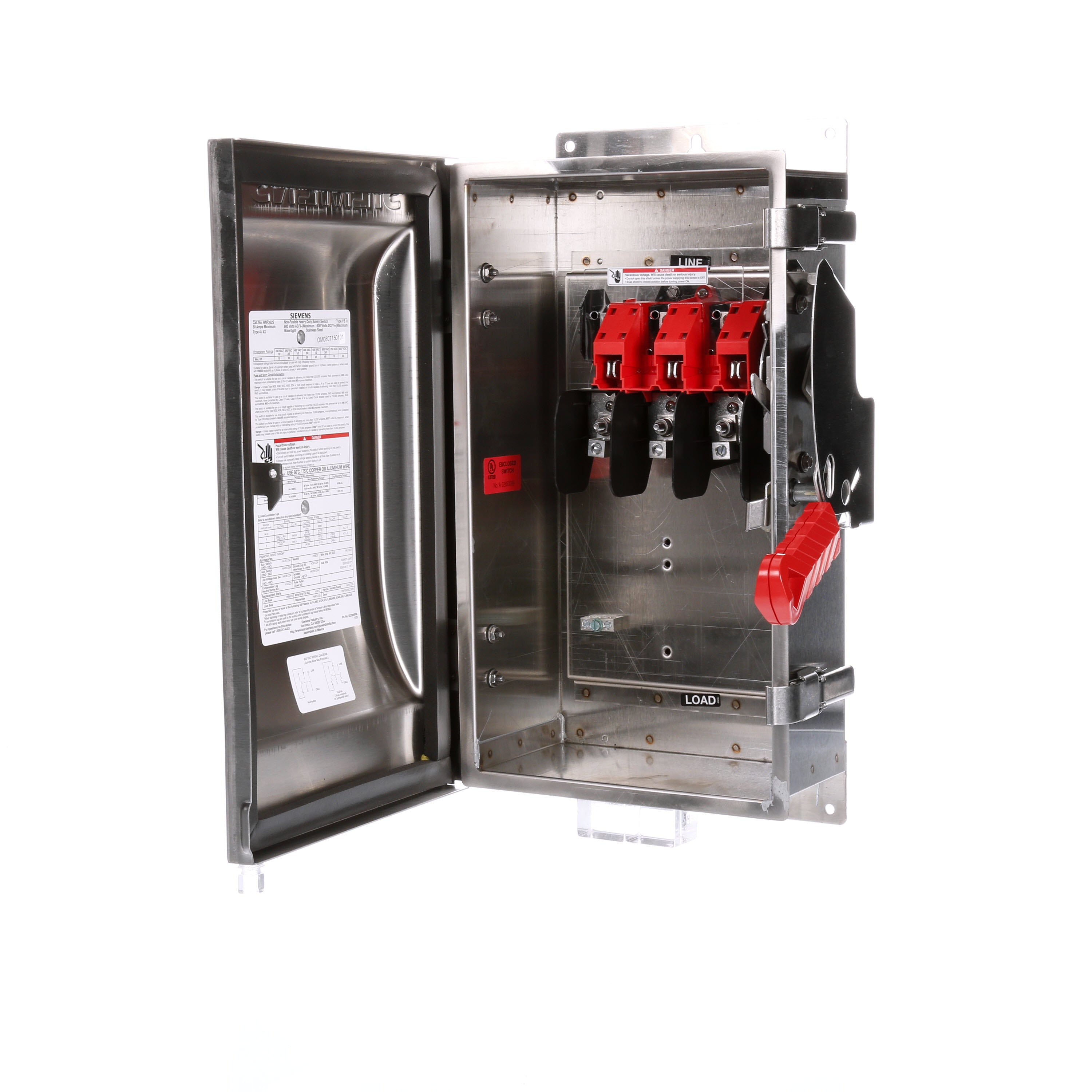

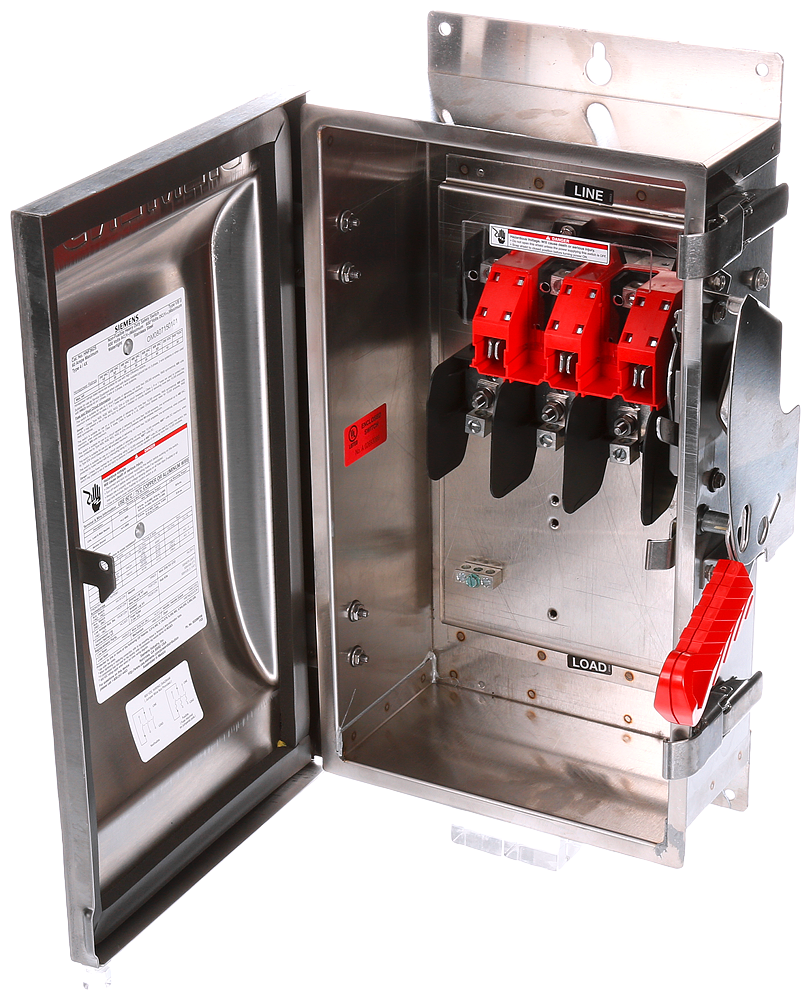

The Siemens HNF362S is a low voltage circuit protection heavy-duty safety switch. This 3-pole, non-fusible switch comes in a NEMA 4/4X 304 grade stainless steel enclosure and is rated for 600VAC at 60 Amps. It is suitable as a disconnecting means for service entrance and loads.

• Heavy Duty Safety Switch
• Non-Fusible
• 304 grade Stainless Steel enclosure

Product Highlights

Heavy-duty, 3-pole, non-fusible safety switch with a NEMA 4/4X enclosure, ideal for disconnecting service entrances and loads.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HNF362S
• Country of Origin: Mexico

Technical Specifications

• GTIN: 00783643152076
• Type: HEAVYDUTYSWITCH
• Brand: Siemens
• Action: SINGLE THROW
• Voltage: 600 Volt
• Amperage: 60 Amp
• Material: Stainless Steel
• Enclosure: NEMA4X
• Frequency: 60 Hz
• Sub Brand: VBII
• Insulated?: Yes
• Product UPC: 78364315207
• 12-Digit UPC: 783643152076
• Applications: DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
• Mounting Type: SURFACE
• Connection Type: MECHANICAL LUGS
• Number of Poles: 3 Pole
• Catalog Number: HNF362S
• Manufacturer: Siemens
• Made in USA: No
• Standard: UL98
• Item Type: HEAVYDUTYSWITCH
• Poles: 3-Pole
• HP [Specifications]: 60 hp @ 600V AC
• Use [Specifications]: Disconnecting Mean For Service Entrance/Loads
• Duty [Specifications]: Heavy
• Item [Specifications]: Safety Switch
• Phase [Specifications]: 3
• Amps AC [Specifications]: 60 A
• Voltage [Specifications]: 600V AC
• IP Rating [Specifications]: 20
• Standards [Specifications]: UL Listed
• Environment [Specifications]: Indoor/Outdoor
• Contact Form [Specifications]: 3PST
• Current Type [Specifications]: AC
• Current Rating [Specifications]: 60 A
• Enclosure Type [Specifications]: Enclosed
• For Fuse Class [Specifications]: Not Applicable
• Mounting Style [Specifications]: Surface Mount
• Number of Wires [Specifications]: 3
• Housing Material [Specifications]: 304 Stainless Steel
• Protection Method [Specifications]: Nonfusible
• Enclosure Material [Specifications]: 304 Stainless Steel
• NEMA Enclosure Type [Specifications]: 4X
• UL 98 Certification [Specifications]: Yes
• Fusible / Nonfusible [Specifications]: Nonfusible
• Horsepower @ 600V AC [Specifications]: 60 hp
• Electrical Connection [Specifications]: Lugs
• NEMA Enclosure Rating [Specifications]: 4, 4X
• Metallic / Non-Metallic [Specifications]: Metallic
• Material of Construction [Specifications]: 304 Stainless Steel
• Combo Environmental Protection [Specifications]: Indoor/Outdoor / 4
