Product Description

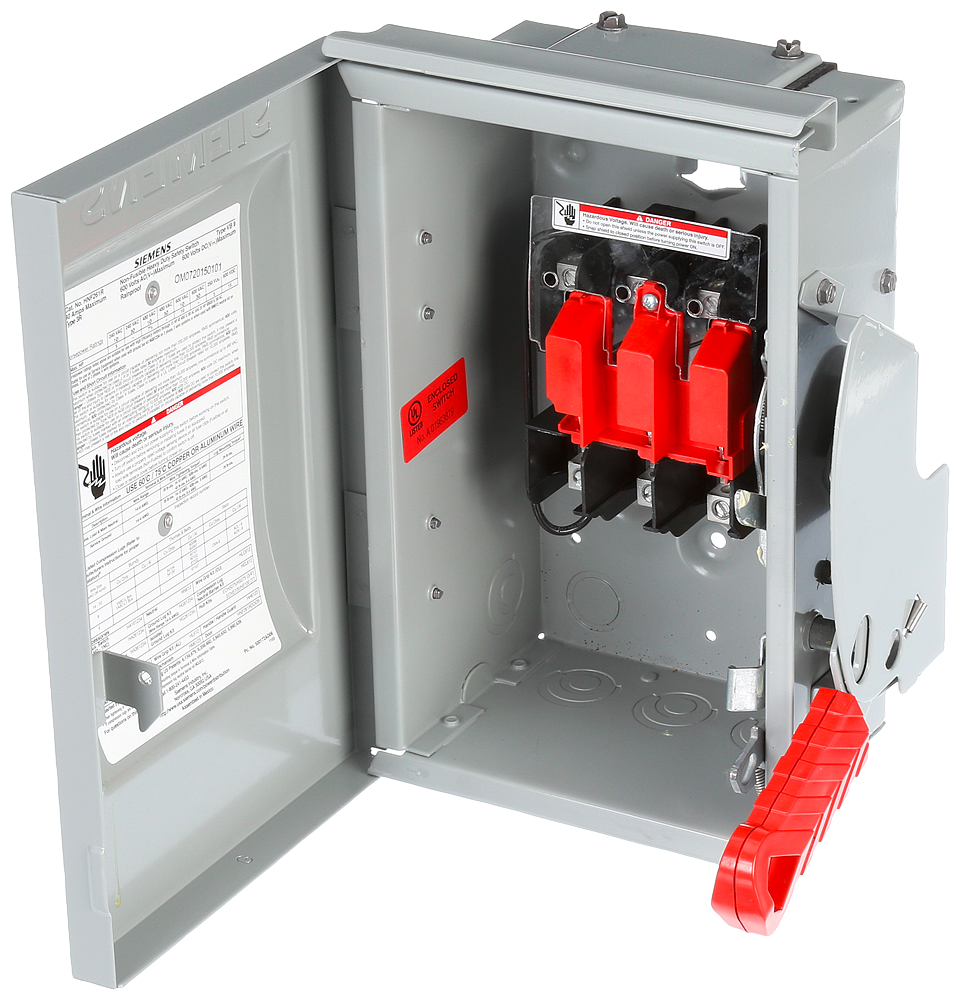

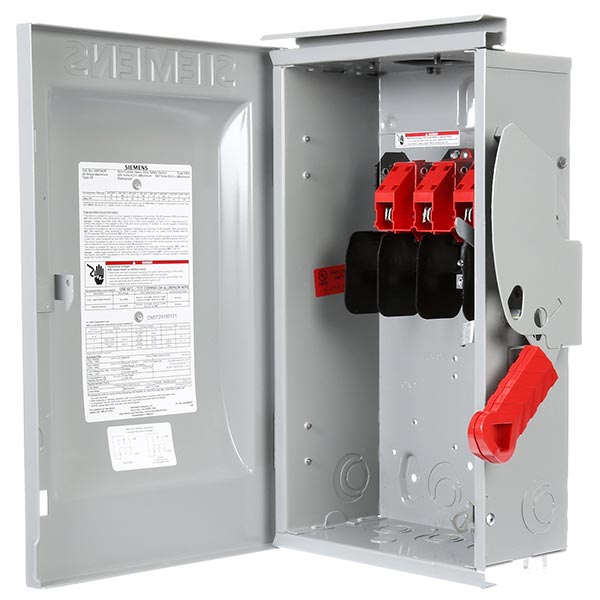

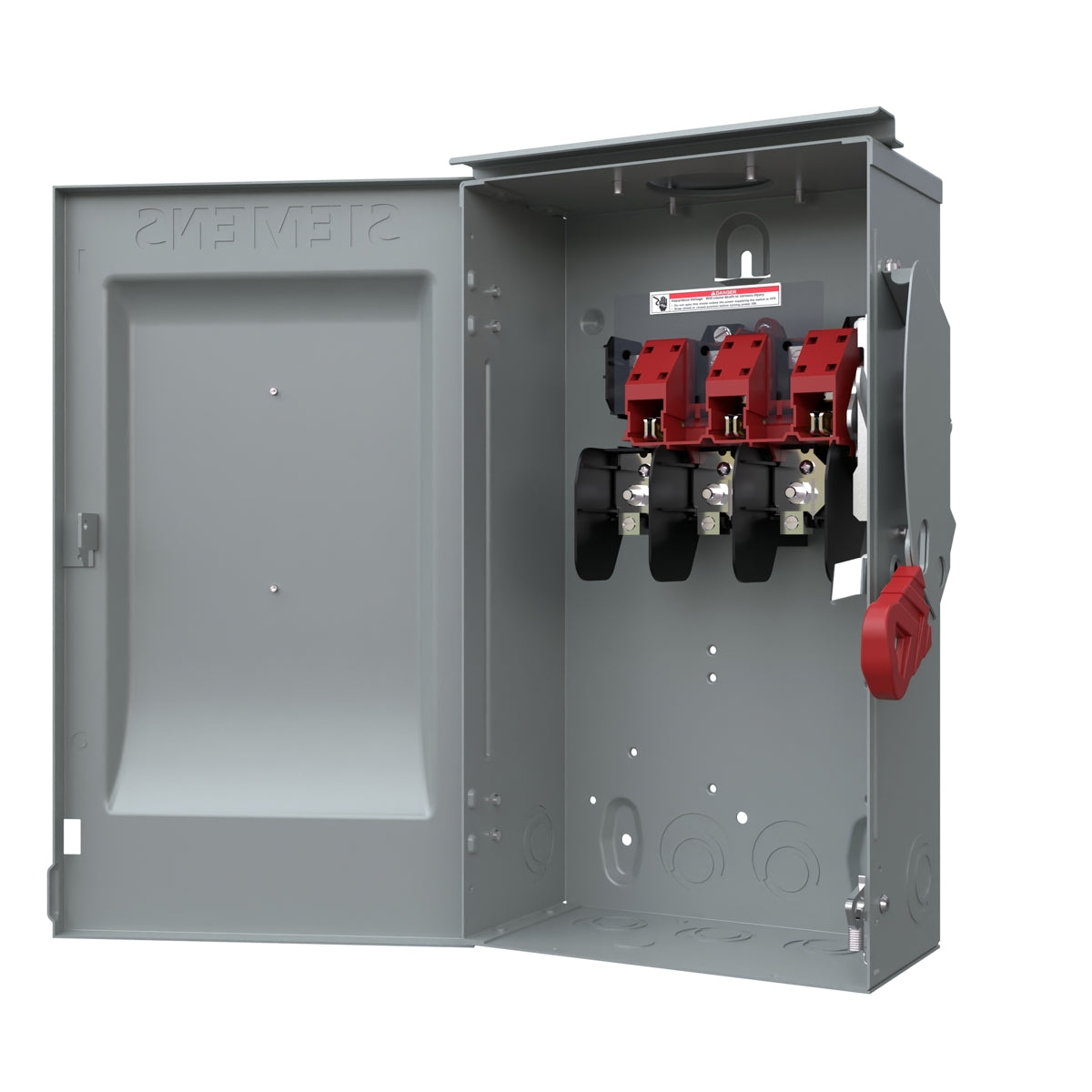

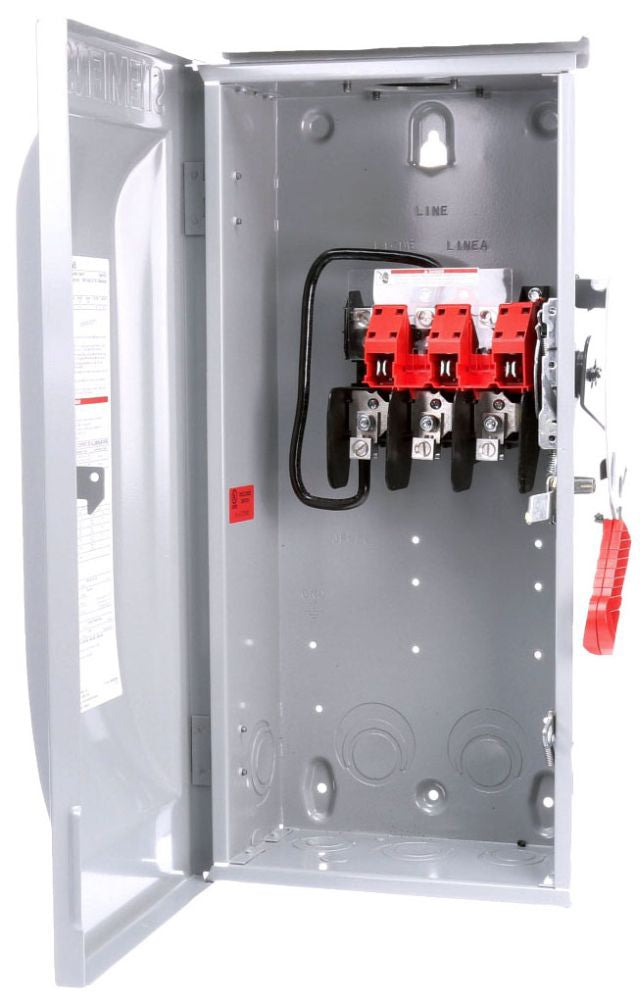

The Siemens HNF362R is a heavy-duty safety switch designed for both residential and commercial applications. It operates at six hundred volts alternating current and supports a sixty amp rating with a horsepower of sixty. This non-fusible single throw safety switch is ideal for disconnecting power in critical situations.
- Quick-make, quick-break operating mechanism.
- Spring reinforced fuse clips provide reliable connections.
- Visible blade design ensures clear ON/OFF indication.
Product Highlights
With its robust construction and reliable performance, this safety switch is suitable for a range of environments, especially where electrical safety is a priority.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: HNF362R
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 60 A
-
Horsepower Rating: 60 HP
-
Number of Poles: 3
-
Insulation Type: Non-Insulated
-
Enclosure Type: NEMA 3R
-
Temperature Rating: -29 to 85 degrees C
-
Dimensions: 16.26 inches H x 10.43 inches W x 10.17 inches D
