Product Description

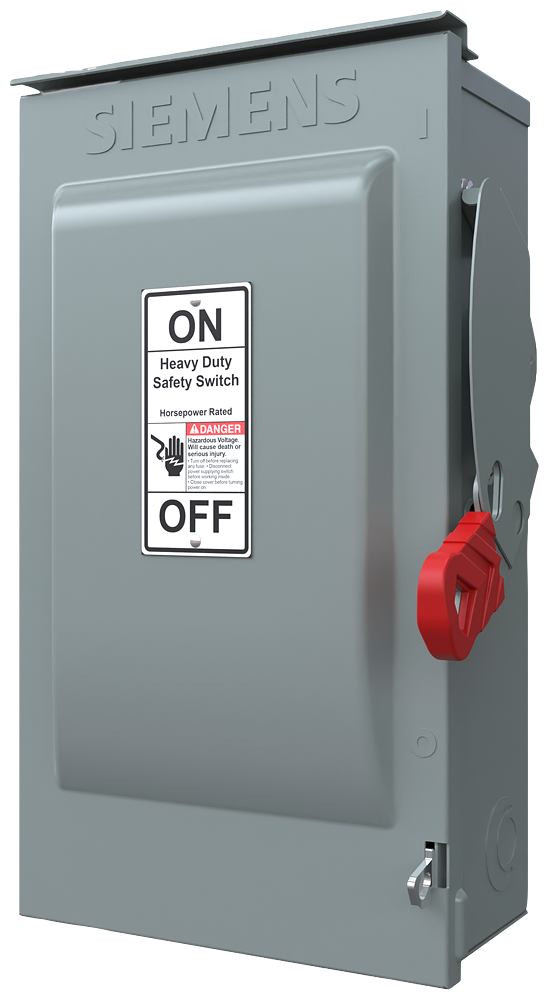

Siemens HNF362 is a non-fusible safety switch rated for up to sixty amps. It is designed for three-pole and three-wire applications at voltages of up to six hundred volts alternating current and two hundred fifty to six hundred volts direct current. This product serves as a reliable method for power distribution and ensures secure disconnection in electrical systems.
- Type 1 enclosure for indoor applications.
- Three-pole design supports reliable circuit protection.

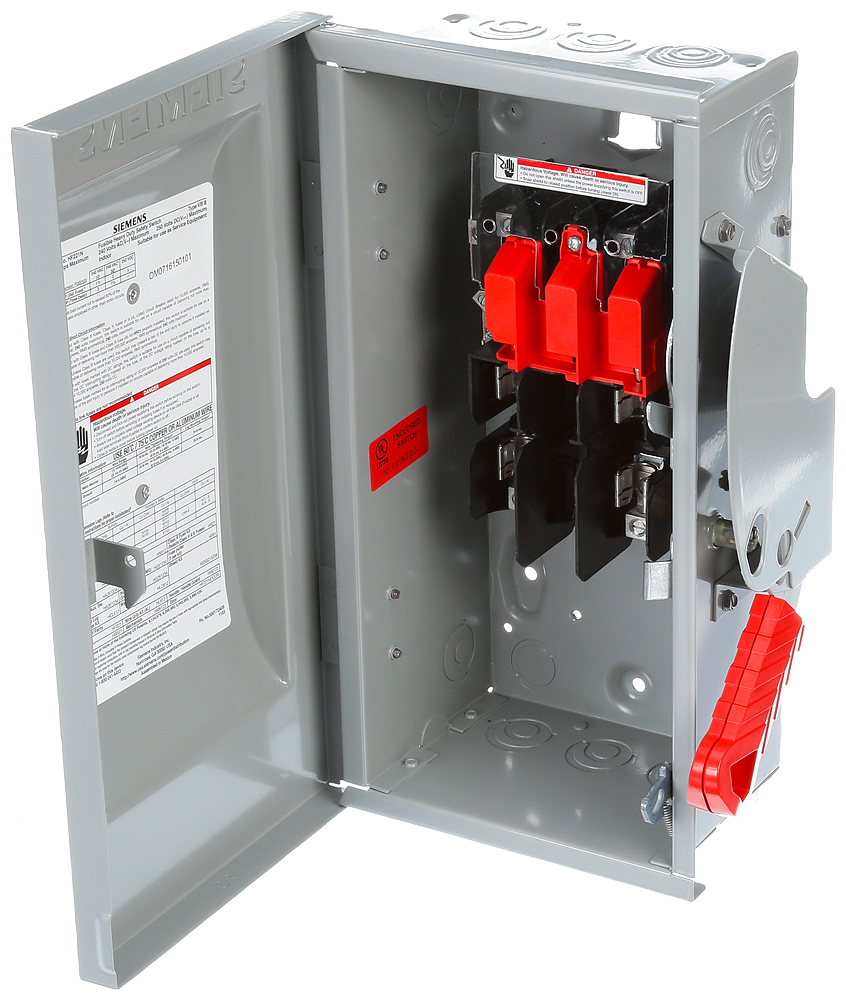

- Visible blade construction ensures safe operation.
Product Highlights
Siemens HNF362 provides essential circuit protection with a quick-make, quick-break design. This switch is UL listed and features sturdy steel construction for durability and efficiency.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: HNF362
Technical Specifications
-
Amperage Rating: 60 A
-
Voltage Rating: 600 VAC / 250-600 VDC
-
Number of Poles: 3
-
Enclosure: NEMA 1
-
Width: 10.260 inches
-
Height: 9.04 inches
-
Length: 16.62 inches
-
Operating Temperature: -20 to 120 degrees F
-
Weight: 17 lbs
