Product Description

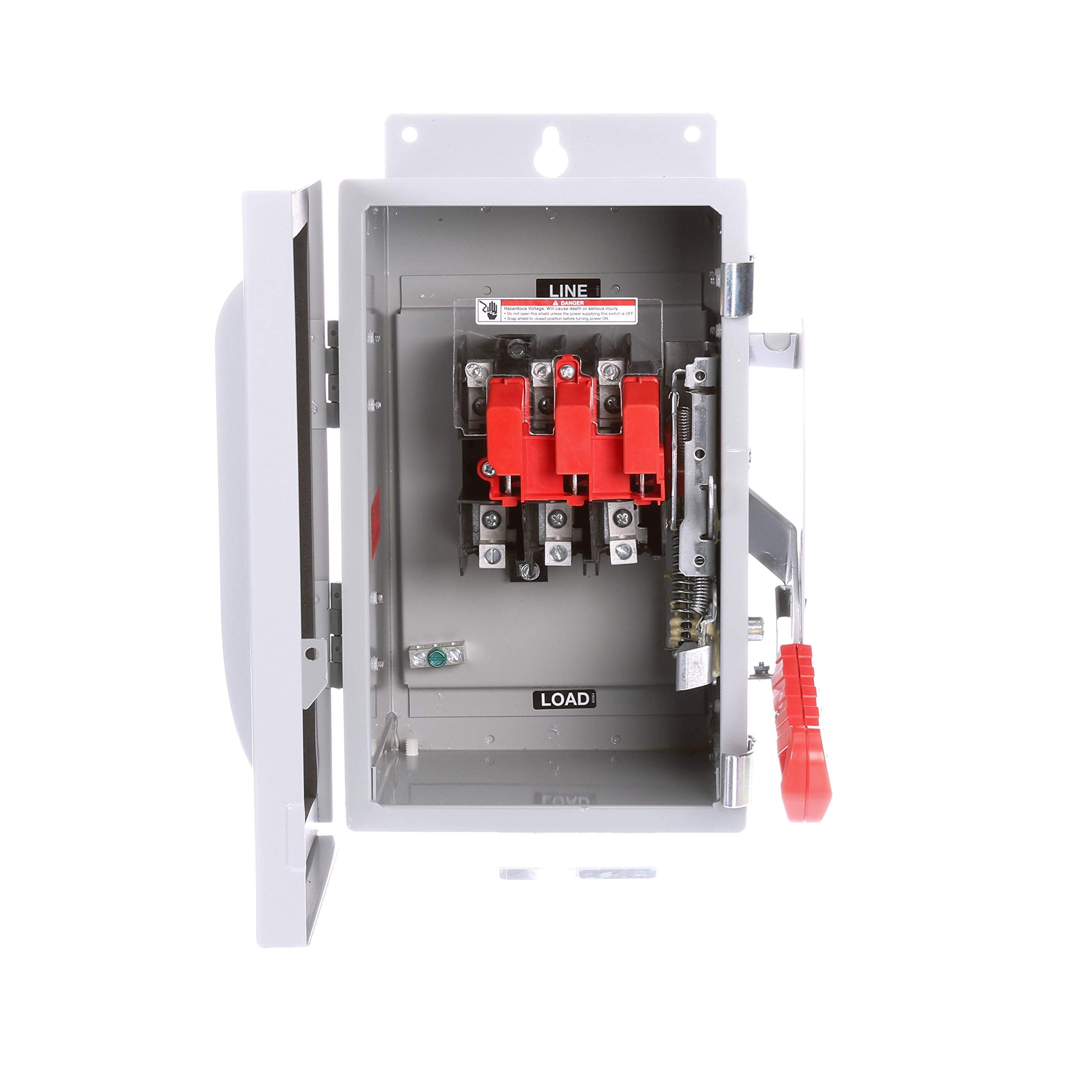

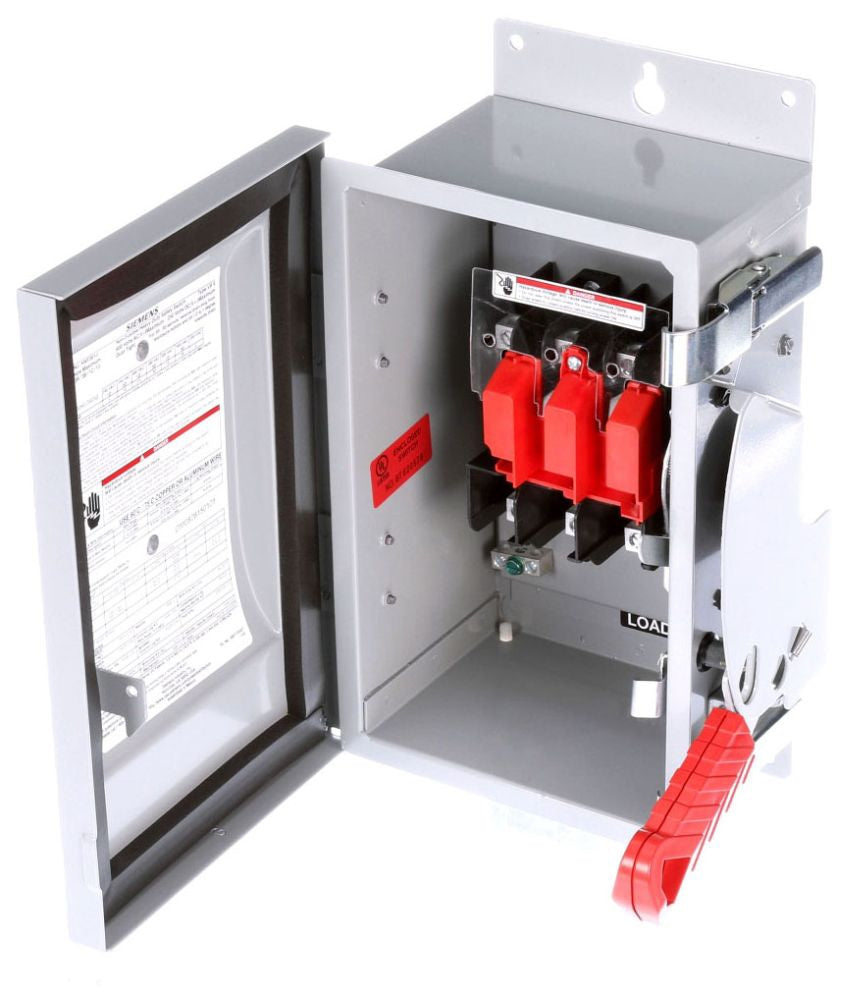

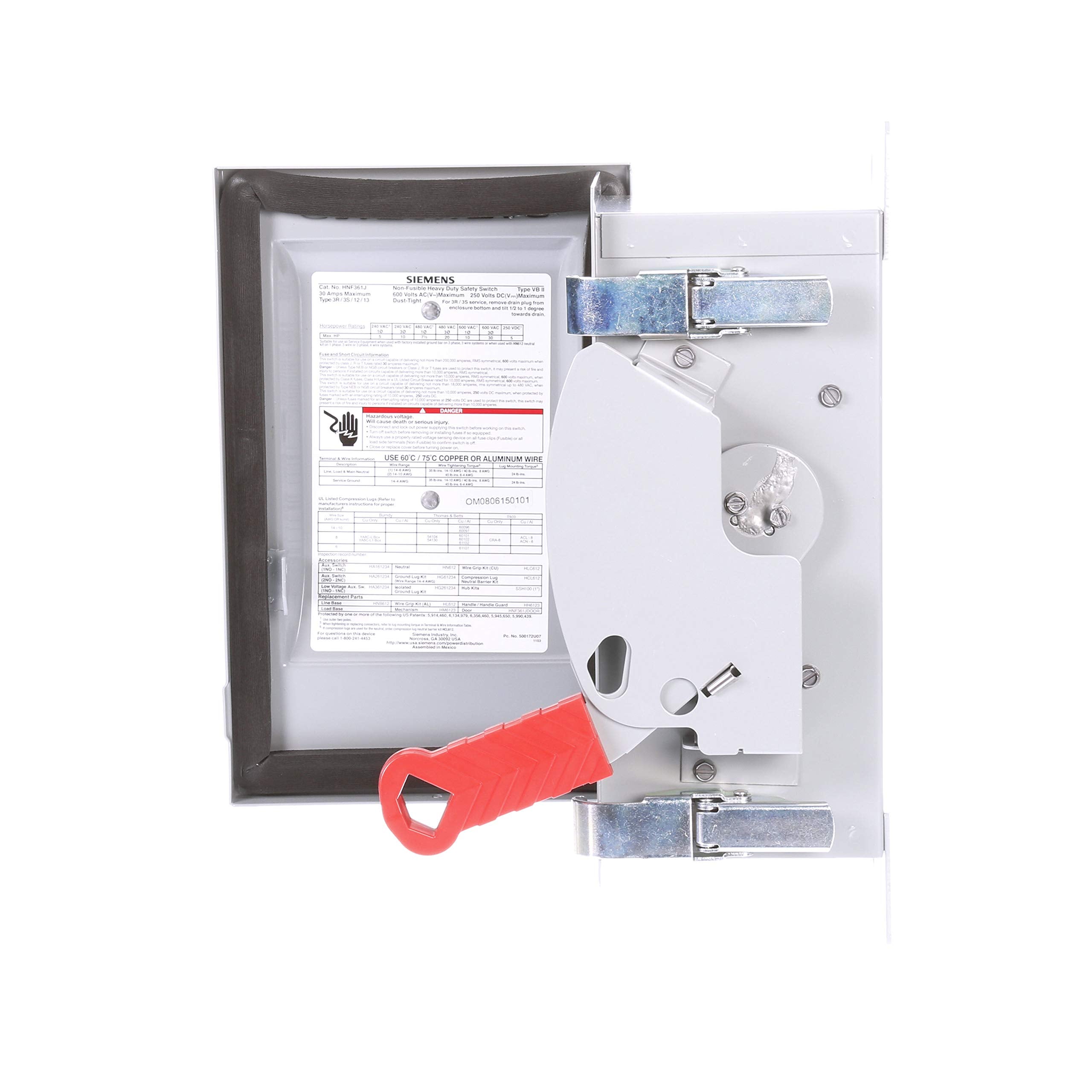

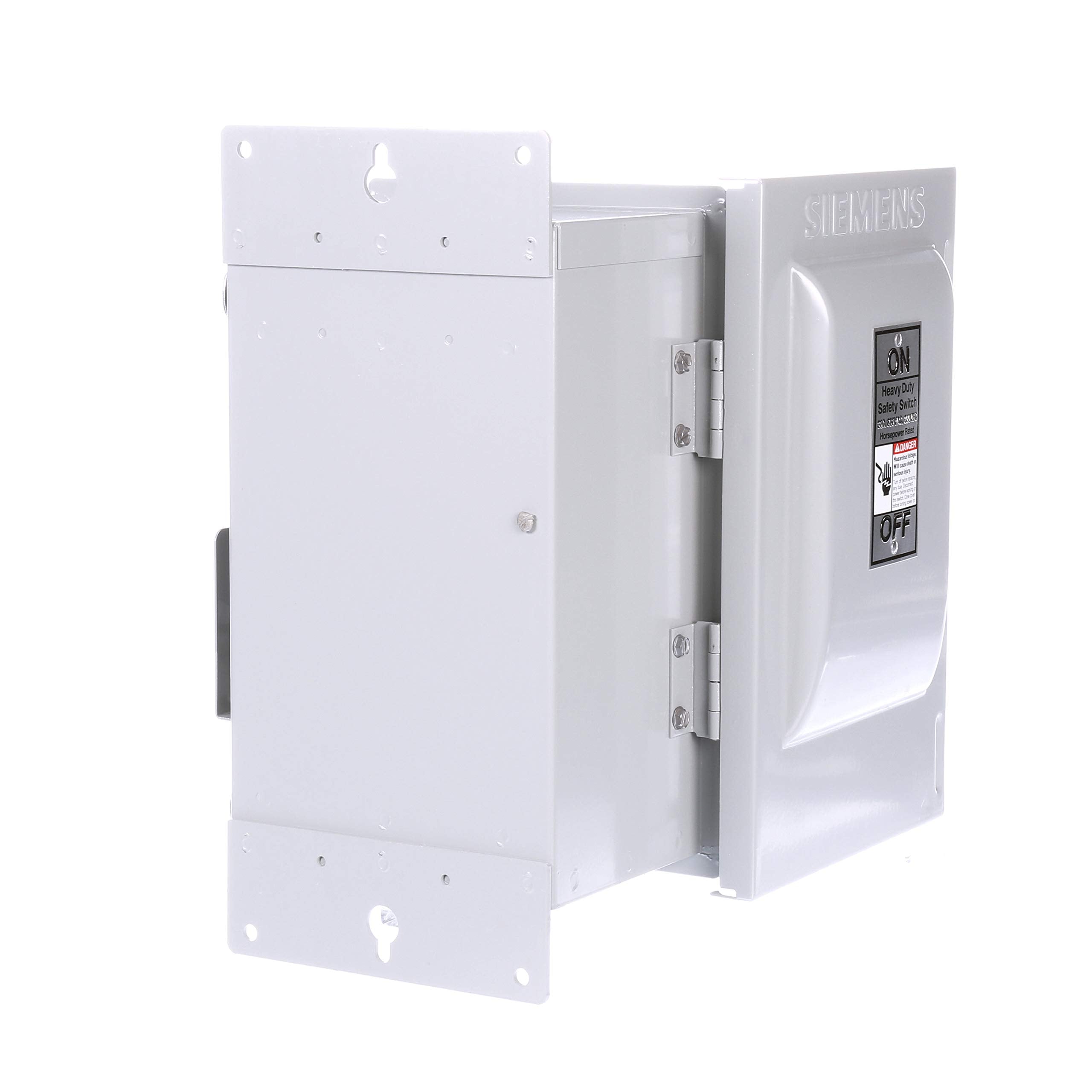

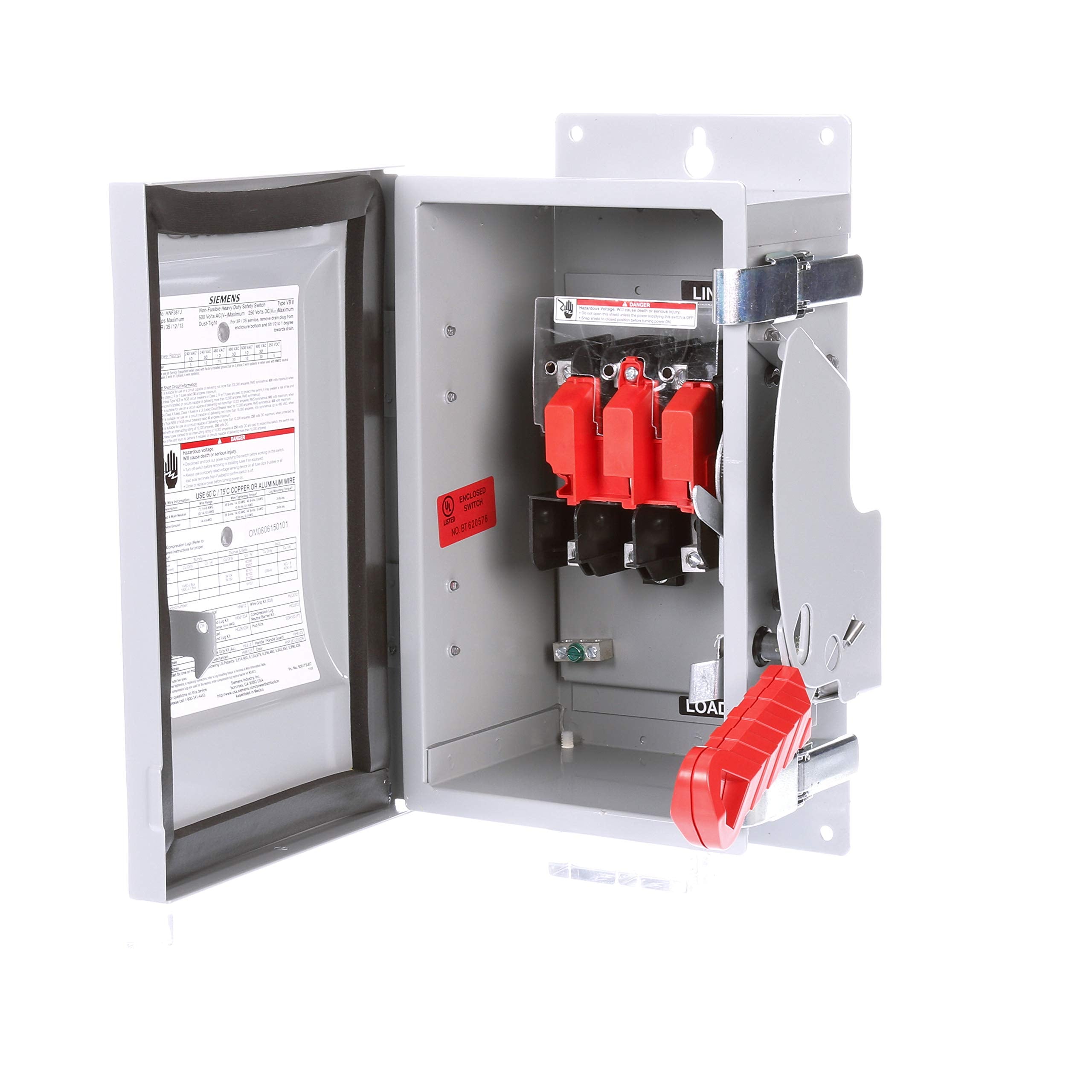

The SIEMENS HNF361J non-fusible safety switch is a heavy-duty switch designed for industrial applications. Rated at 600 VAC and 250 VDC, this 3-pole switch features a quick-make, quick-break operating mechanism. The NEMA 12 enclosure provides protection against dust, dirt, and dripping non-corrosive liquids. It is suitable for circuits rated up to 200K when used with Class R or J fuses.
- Quick-Make, Quick-Break Operating Mechanism that Ensures Positive Operation
- Visible Blade, Double-Break Switching Action
- Arc Chutes Dissipate Heat and Prolong Switch Life
Product Highlights
Heavy duty safety switch with a NEMA 12 enclosure, quick-make/break operation, and visible blade construction.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: HNF361J
Technical Specifications
-
AC Voltage Rating: 240/480/600 V
-
Approval: UL 98
-
DC Voltage Rating: 250 V
-
Enclosure: NEMA 12/3R/3S
-
Fuse Provision: Non-Fusible
-
Manufacturer Name: Siemens
-
Neutral Type: No
-
Number Of Poles: 3
-
Number Of Wires: 3
-
Power Rating: 5 HP at 240 VAC, 7-1/2 HP at 480 VAC, 10 HP at 600 VAC 1-Phase, 10 HP at 240 VAC, 20 HP at 480 VAC, 30 HP at 600 VAC 3-Phase, 5 HP at 250 VDC
-
Product UPC: 783643151895
-
Type: Heavy Duty Safety
-
Brand: SIEMENS
-
MPN: HNF361J
-
Reference ID: SIEMENSHNF361J
-
Amperage: 30 Amp
-
Frequency Rating: 60 Hz
-
Material: Steel
-
Amperage Rating: 30 A
-
Temperature Rating: -29 to 85 deg C
-
Phase: 3
-
Short Circuit Rating: 200 kA
-
Short Circuit Current Rating: 200 kA
-
Mounting Type: Surface
-
Contact Form: TPST
-
Insulation Type: Insulated
-
Terminal Type: Lug
-
Horsepower: 30 hp
-
Application: Industrial Applications
-
Standard & Approvals: UL Listed|UL 98
