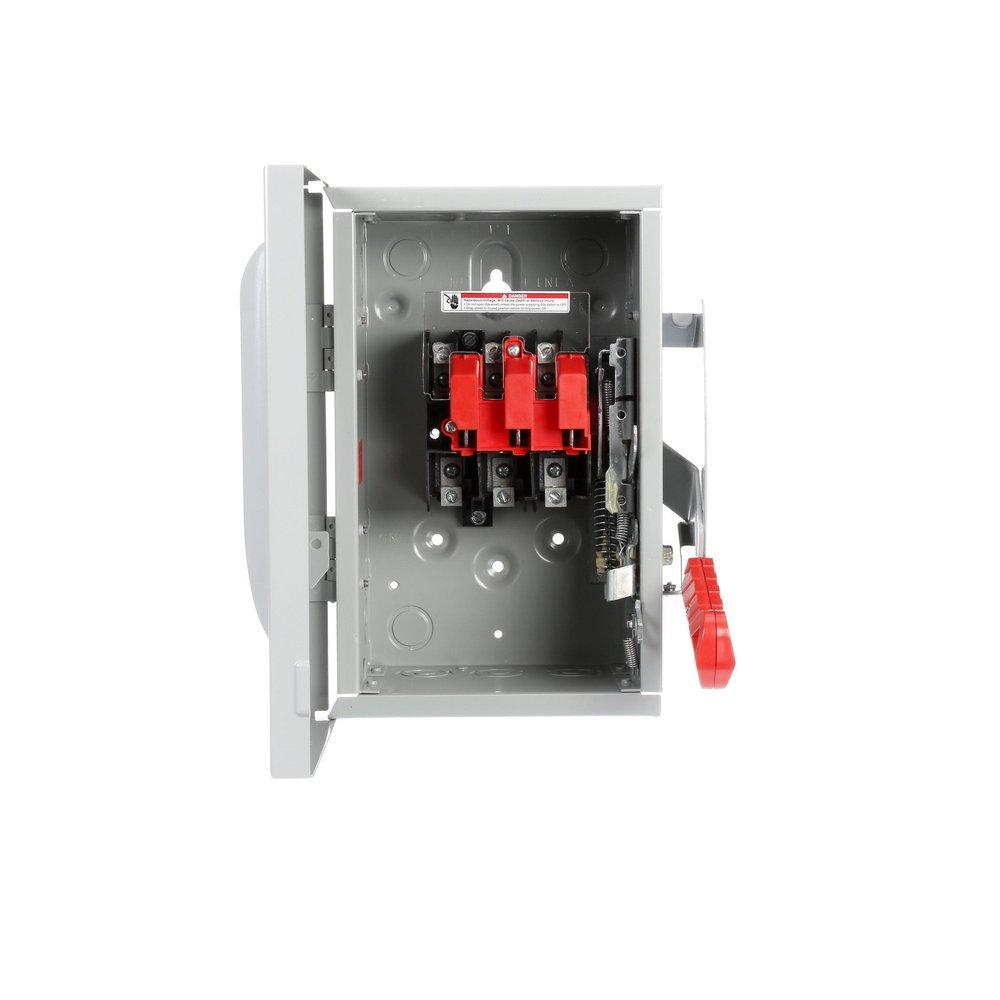

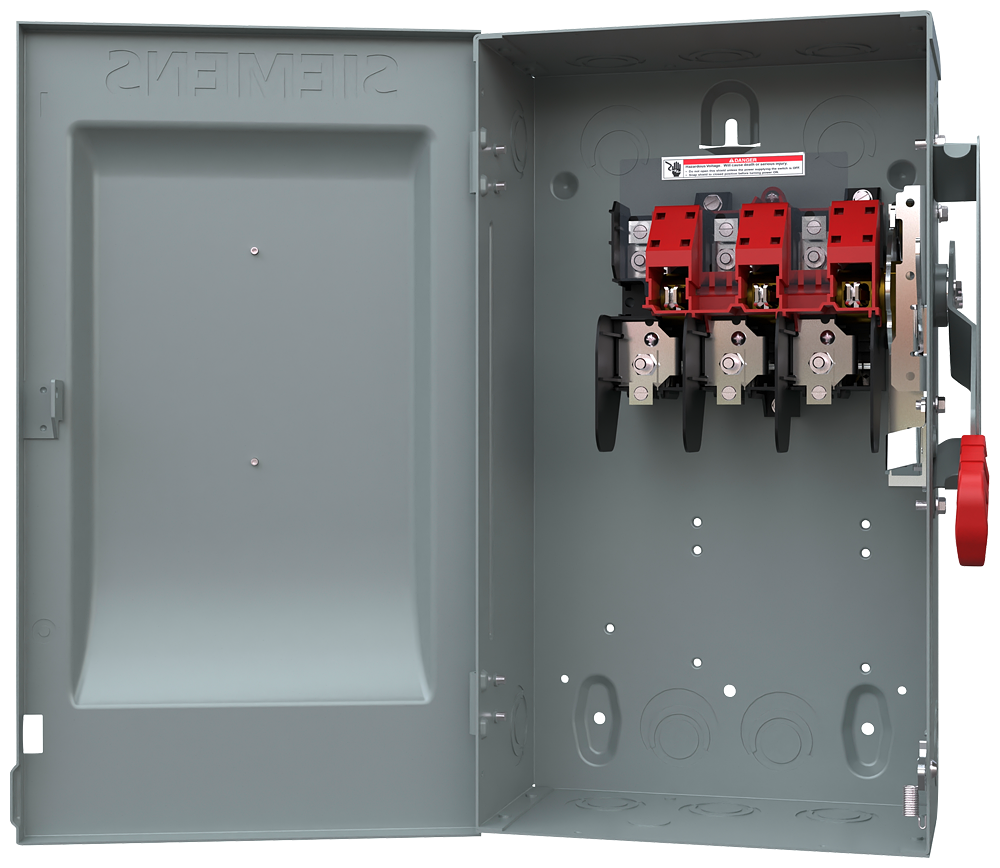

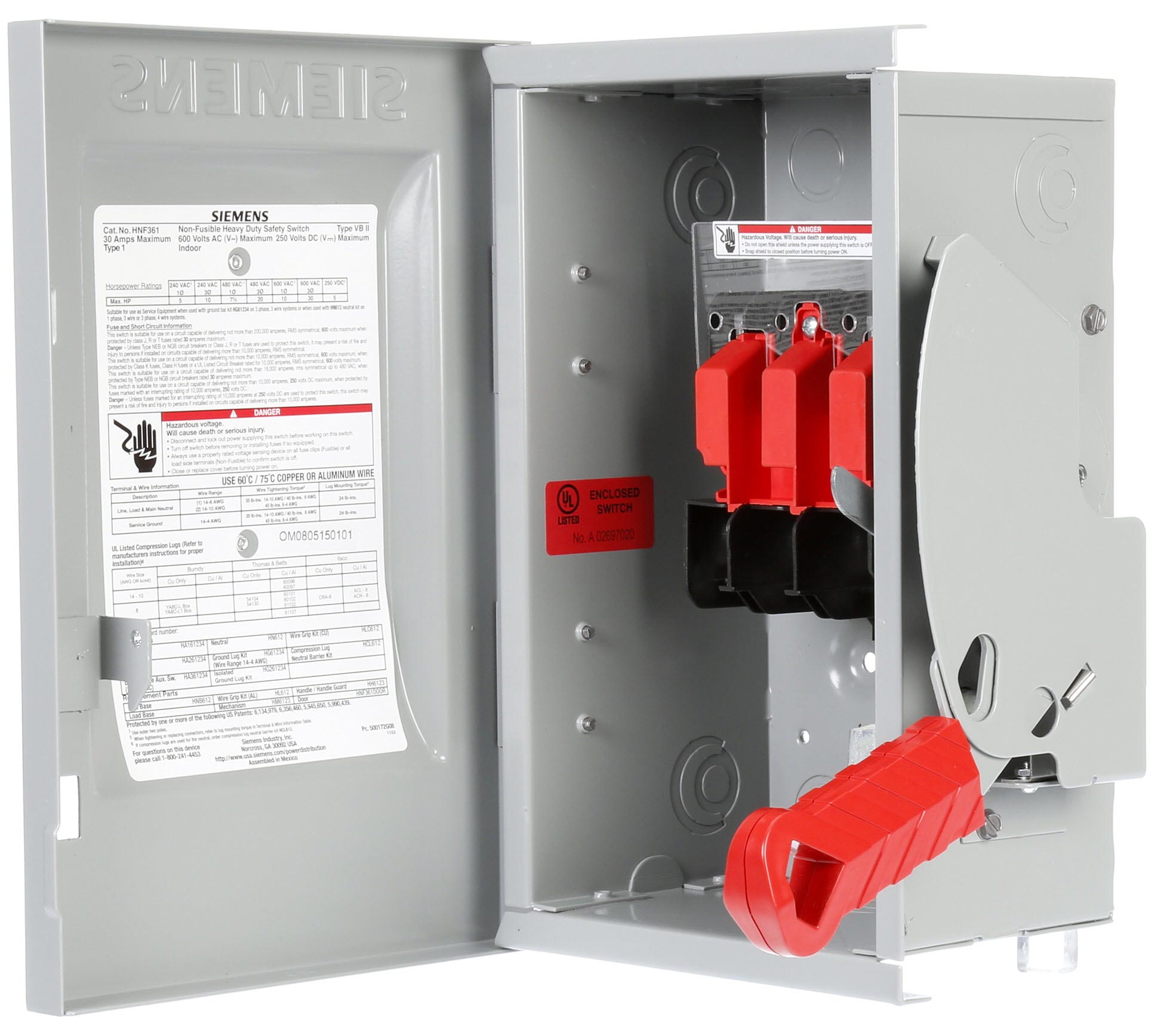

Siemens HNF361 SWITCH SAF 600VAC 30A 30HP TPST 3 3 60HZ

Product Description

Siemens HNF361 is a safety switch designed for heavy-duty applications. This switch operates at six hundred volts and handles thirty amps. It is equipped with a three-pole and three-wire system, suitable for various industrial uses.

• Operates at six hundred volts.
• Handles up to thirty amps.
• Three-pole and three-wire configuration.

Product Highlights

This switch is built to provide reliable service in demanding environments, offering robust protection and easy installation options.

Product Information

Standard Information

• Manufacturer: Siemens
• Type: Enclosed Heavy Duty Non-Fusible Single Throw

Technical Specifications

• MPN: HNF361
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Horsepower: 30 hp
• Number of Poles: 3
• Number of Wires: 3
• Frequency Rating: 60 Hz
• Insulation Type: Non-Insulated
• Contact Form: TPST
• Temperature Rating: -20 to 120 deg F
• Enclosure Type: NEMA 1
• Weight: 10.6 lb
• Dimensions: 11.11 in H x 7.67 in W x 10.17 in D
• Short Circuit Current Rating: 200 kA
• Country of Origin: Mexico
