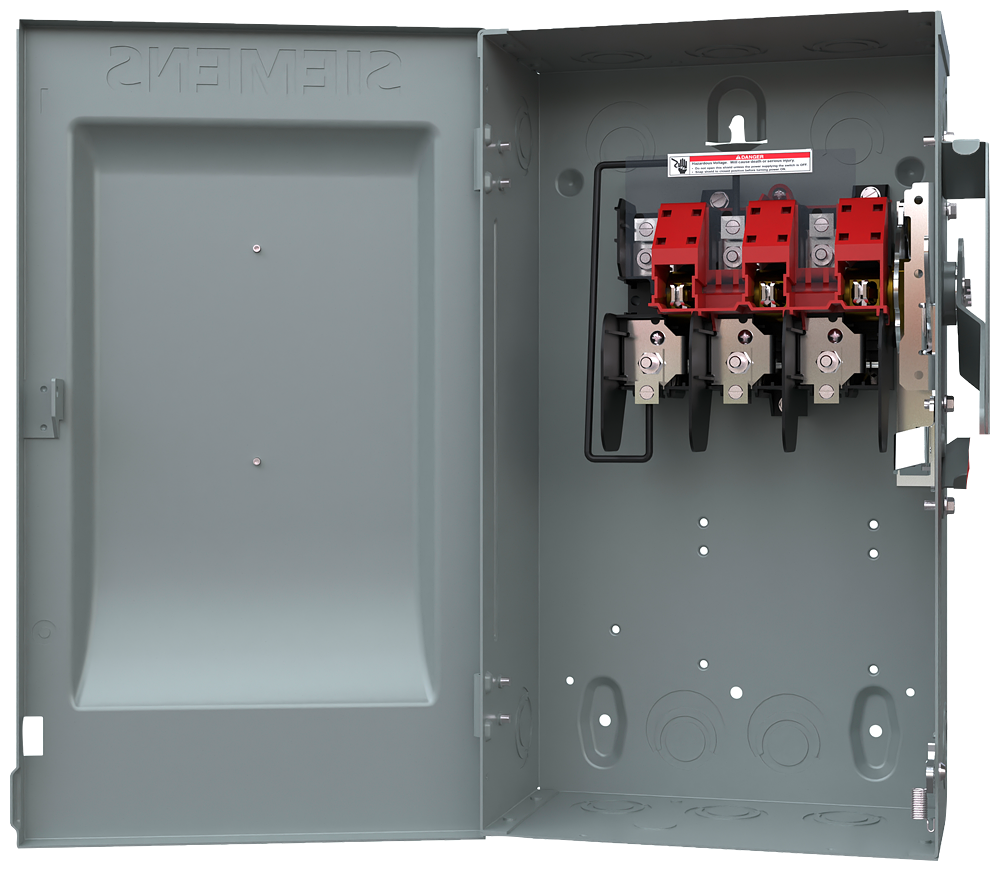

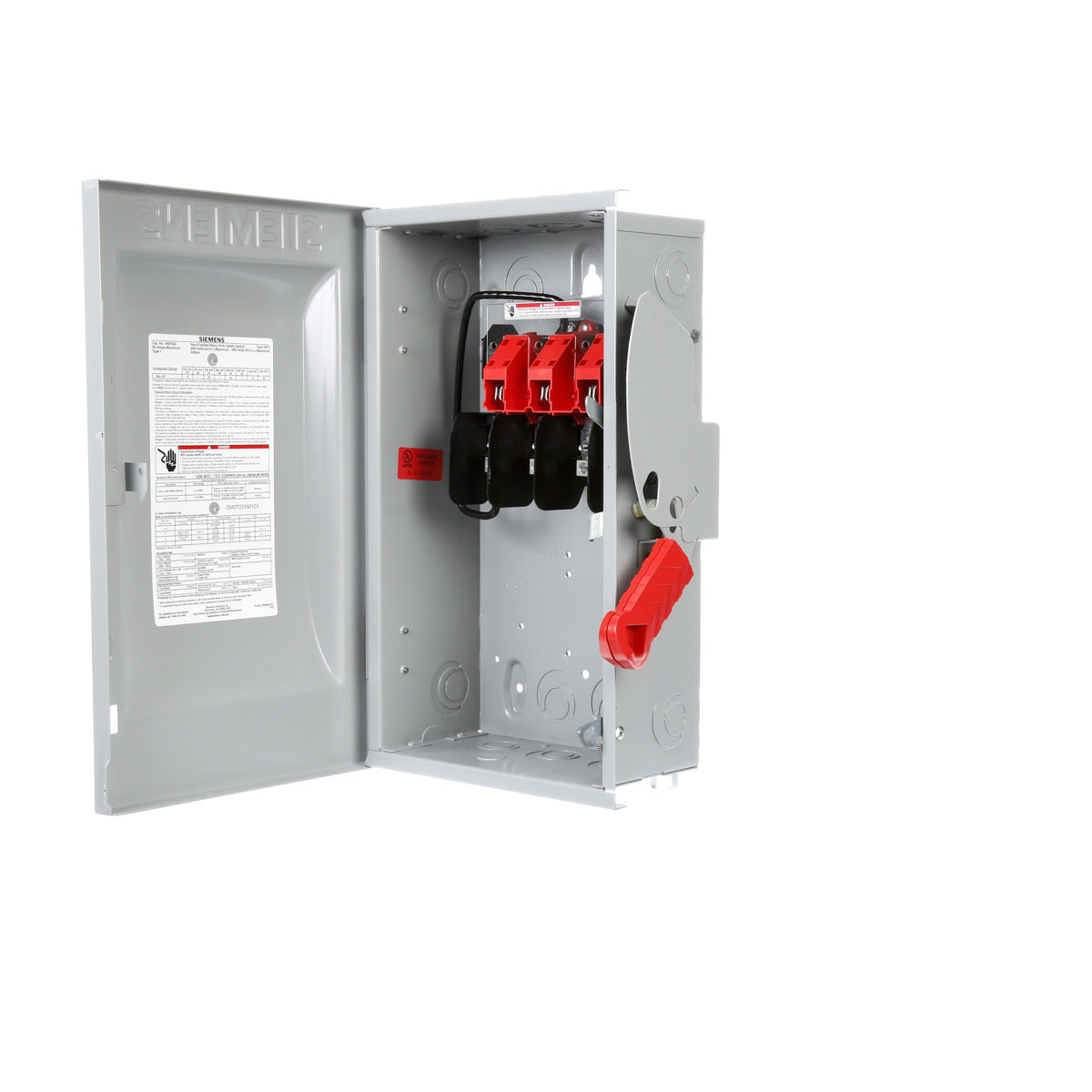

Siemens HNF262 480/600 VAC 250/600 VDC 60 Amp 2-Pole 2-Wire NEMA 1 Heavy Duty Non-Fusible Safety Switch

Product Description

Siemens HNF262 is a heavy duty non-fusible safety switch ideal for controlling electrical circuits at voltages up to six hundred volts AC and six hundred volts DC. This switch has a two-pole and two-wire configuration and comes in a type one enclosure suitable for indoor applications. It offers a 60 amp rating, making it suitable for various industrial and commercial uses.

• Heavy duty NEMA 1 enclosure for indoor use.
• Rated for 480/600 VAC and 250/600 VDC applications.
• Designed for disconnecting means for service entrance and loads.

Product Highlights

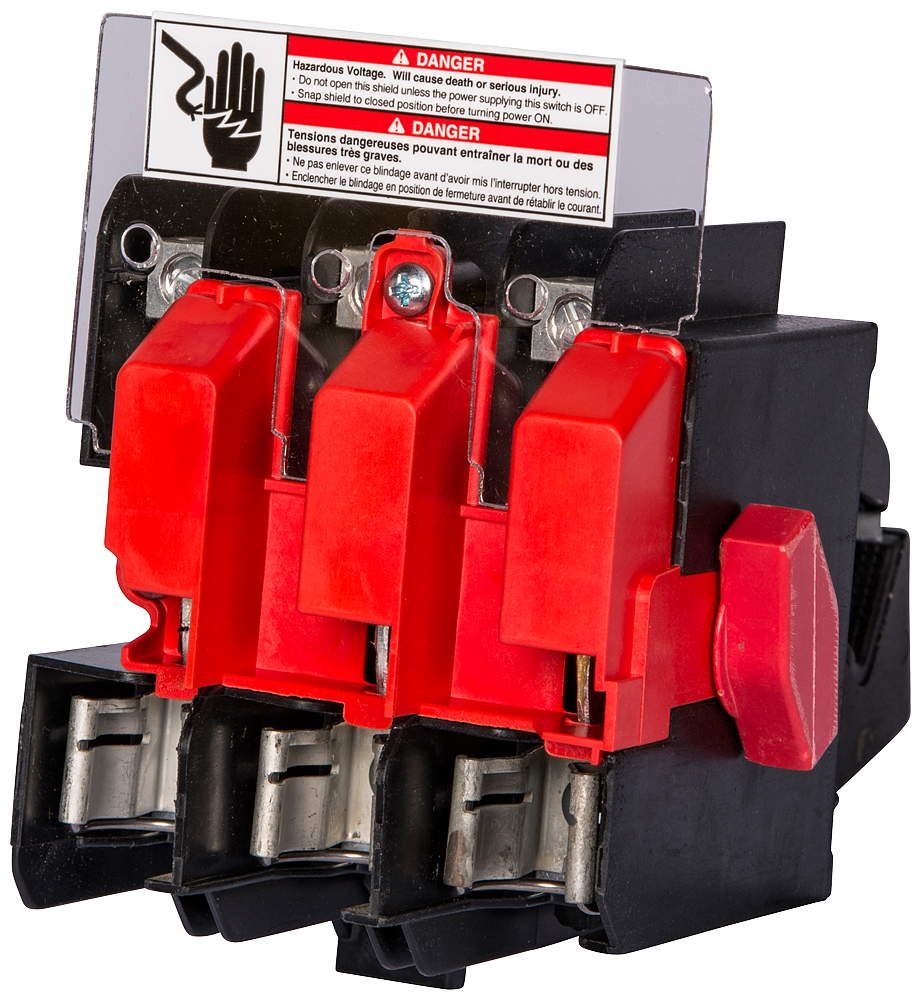

Siemens HNF262 provides reliable electrical isolation with its quick-make, quick-break mechanism. Its sturdy construction ensures long-lasting performance in demanding conditions.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: HNF262

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 60 Amp
• Number of Poles: 2 Pole
• Enclosure Type: NEMA 1
• Material: Steel
• Weight: 17 lbs
• Dimensions: 16.62 inches (L) x 10.26 inches (W) x 9.04 inches (H)
• Operating Temperature: -29 degrees C
• Mounting Type: Surface
• Application: Disconnecting means for service entrance/loads
• Frequency Rating: 60 Hz
• Number of Wires: 2
• Approval: UL 98
