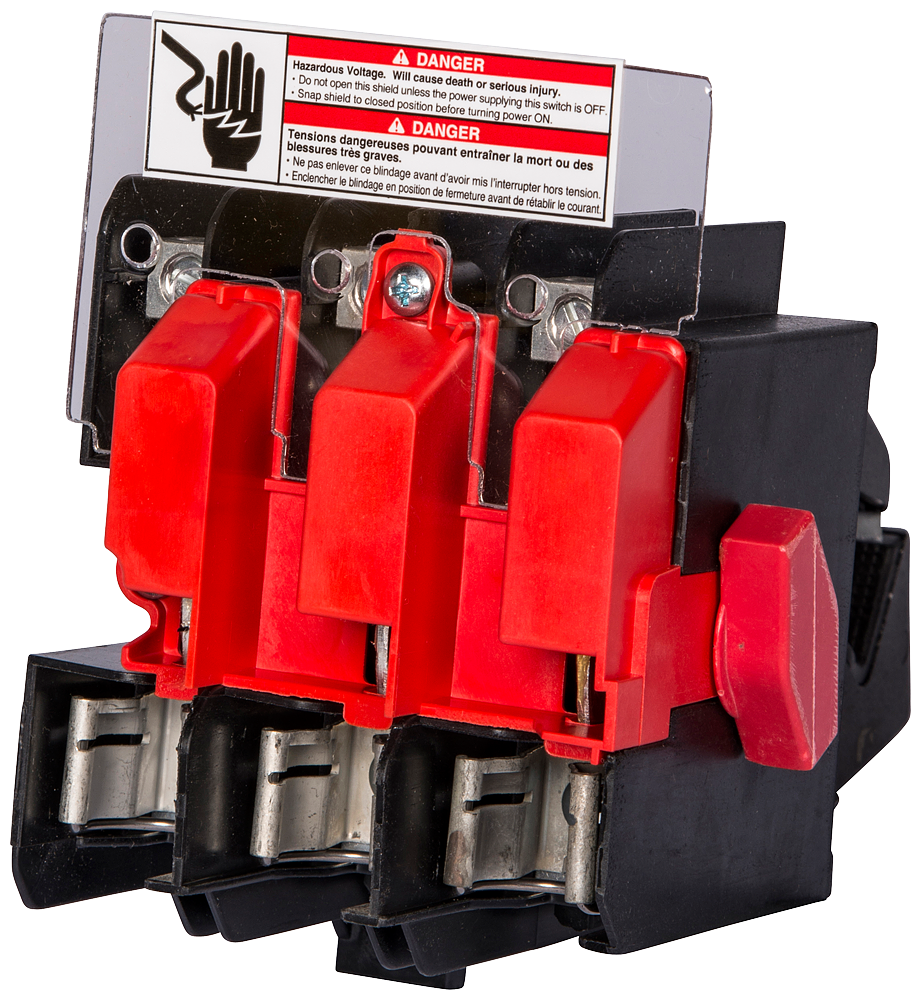

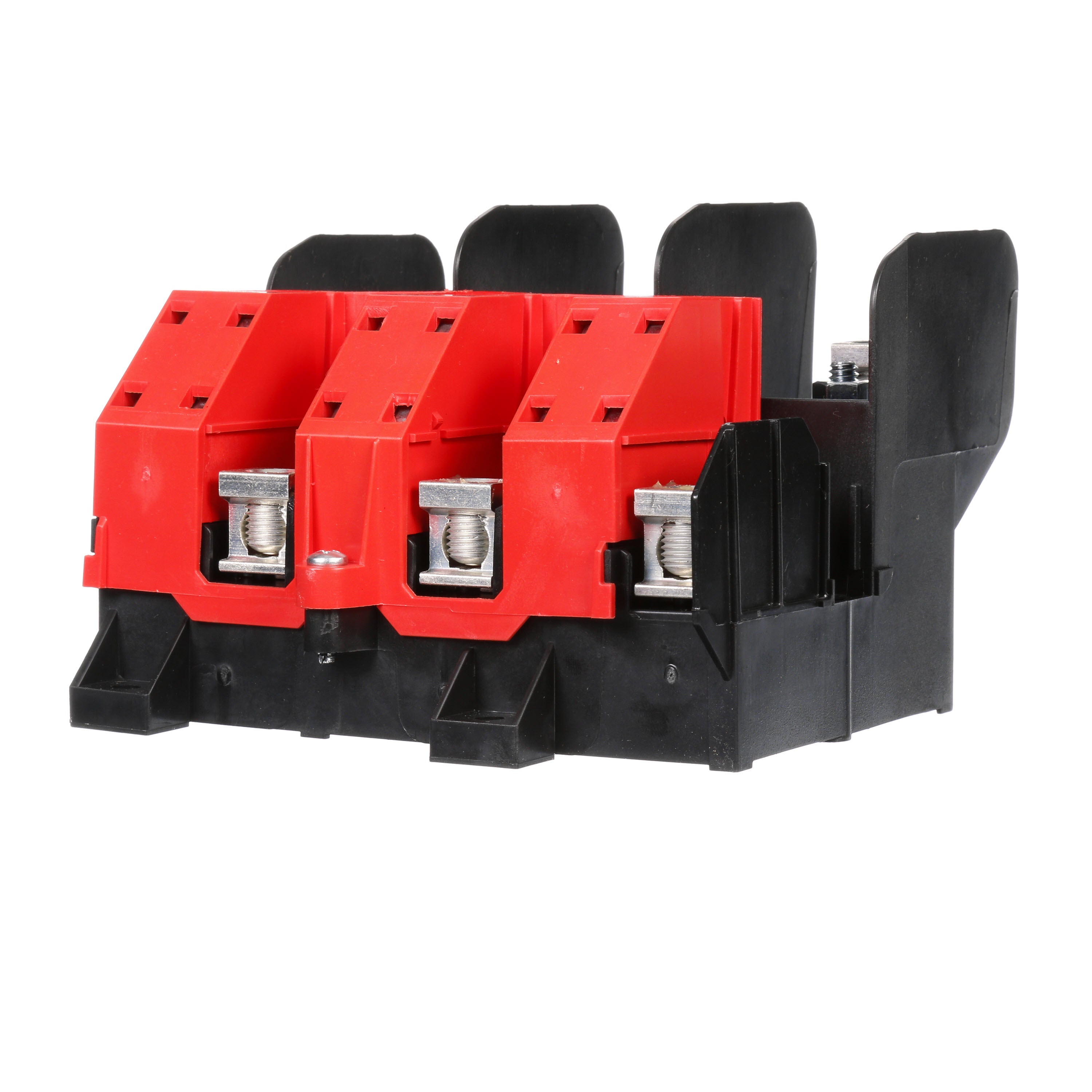

Siemens HNB623 600 VAC 100 Amp 3-Pole Non-Fusible Safety Switch Line Base

Product Description

The Siemens HNB623 is a 600 VAC, 100 Amp, 3-Pole non-fusible safety switch line base. This heavy-duty switch is designed for single throw action and suitable for indoor environmental conditions. It operates at 60 Hz and is rated for 10,000 operating cycles. The unit is designed to function within an ambient temperature range of -20 to 120 degrees Fahrenheit.

• Rated for 600 VAC and 100 Amp
• Features a 3-pole, single-throw design
• Suitable for indoor use with an operating temperature range of -20 to 120 degrees Fahrenheit

Product Highlights

Siemens HNB623 is a heavy-duty, non-fusible safety switch line base designed for reliable performance in various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HNB623
• Country of Origin: Mexico

Technical Specifications

• Type: ENCLOSED/SAFETYSWITCH
• Brand: Siemens
• Width: 7.150 in
• Action: SINGLE THROW
• Height: 5.8 Inch
• Length: 9.05 Inch
• Voltage: 600 Volt
• Amperage: 100 Amp
• Frequency: 60 Hz
• Insulated?: No
• Number of Poles: 3 Pole
• Operating Cycles: 10k
• Operating Temperature: (-20F-120F) AMBIENT TEMPERATURE
• Catalog Number: HNB623
• Manufacturer: Siemens
• Country of Origin: Mexico
• Made in USA: No
• UPC: 783643198968
• GTIN: 00783643198968
• Specifications: 100 A, 240/600 VAC at 60 Hz
• Alternate Catalog Number: US2:HNB623
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed
• UNSPSC: 39122205
• Category: Circuit Protection Accessories
• Series: *
• Packaging: Box
• Part Status: Active
• Overview: REP NF LINE BASE 60, 100A HD, 100A GD
