Siemens HMXD63B800 MD MCCB,50kA@

Product Description

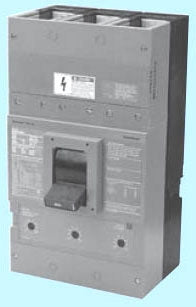

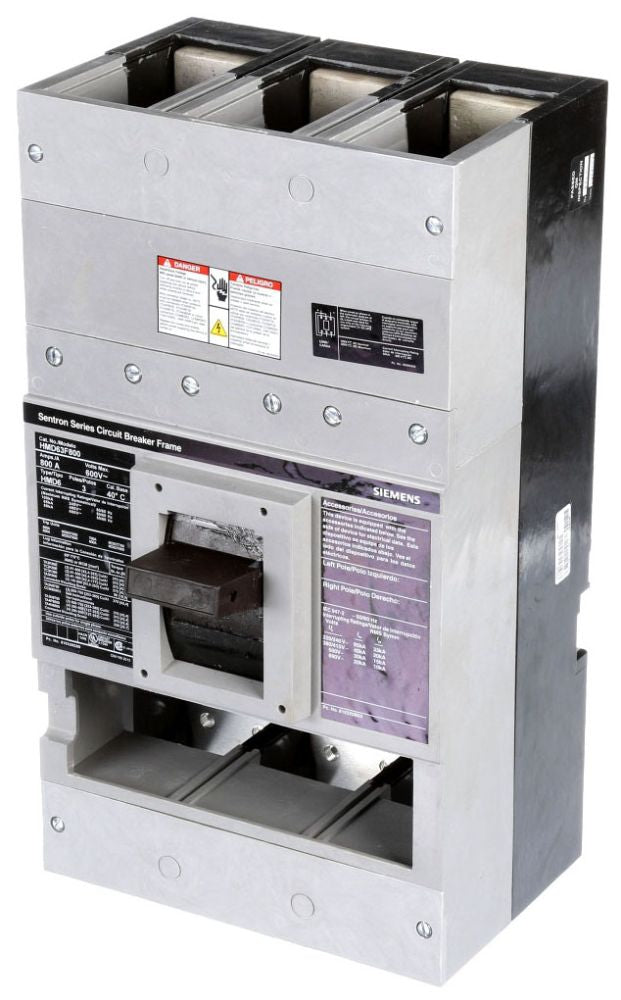

Siemens HMXD63B800 is a molded case circuit breaker designed for industrial applications. This unit features a thermal-magnetic trip system with a maximum current rating of eight hundred amps. Its interrupt rating is fifty kAIC at six hundred volts, offering reliable protection for electrical systems.

• Rated for 800 Amps with 3 poles
• UL and CSA approved for safety
• Compact dimensions for easy installation

Product Highlights

The Siemens HMXD63B800 is ideal for protecting circuits in power distribution systems. The thermal-magnetic trip provides a dual-layer of protection against overloads and short circuits ensuring operational reliability.

Product Information

Standard Information

• Brand: Siemens
• MPN: HMXD63B800

Technical Specifications

• Frame Type: MD
• Number of Poles: 3
• Maximum AC Voltage Rating: 600 V
• Maximum DC Voltage Rating: 500 V
• Interrupt Rating: 50 kAIC
• Operating Temperature: 40°C
• Dimensions (W x H x D): 9 inches x 19.1 inches x 11.9 inches
