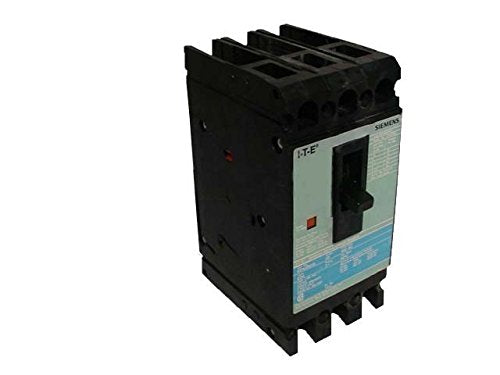

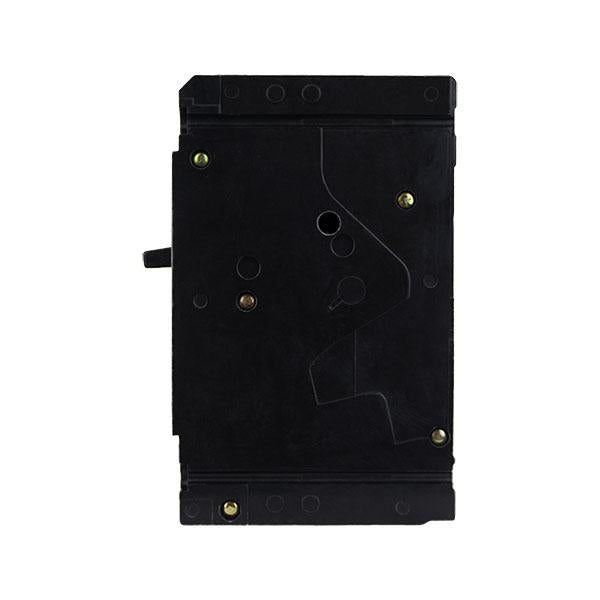

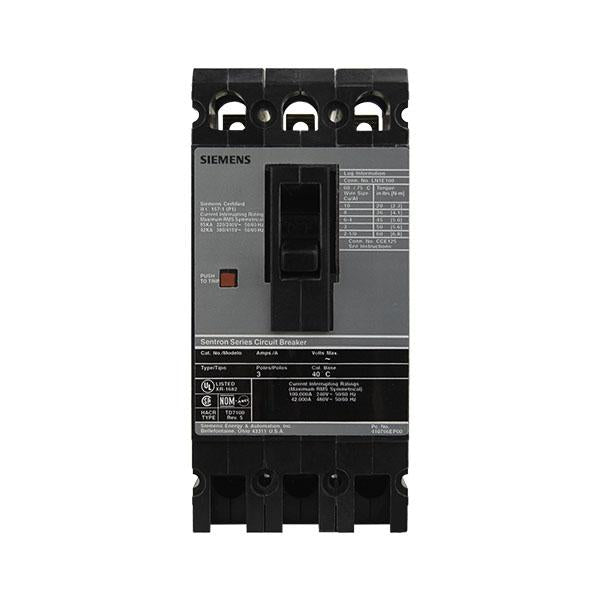

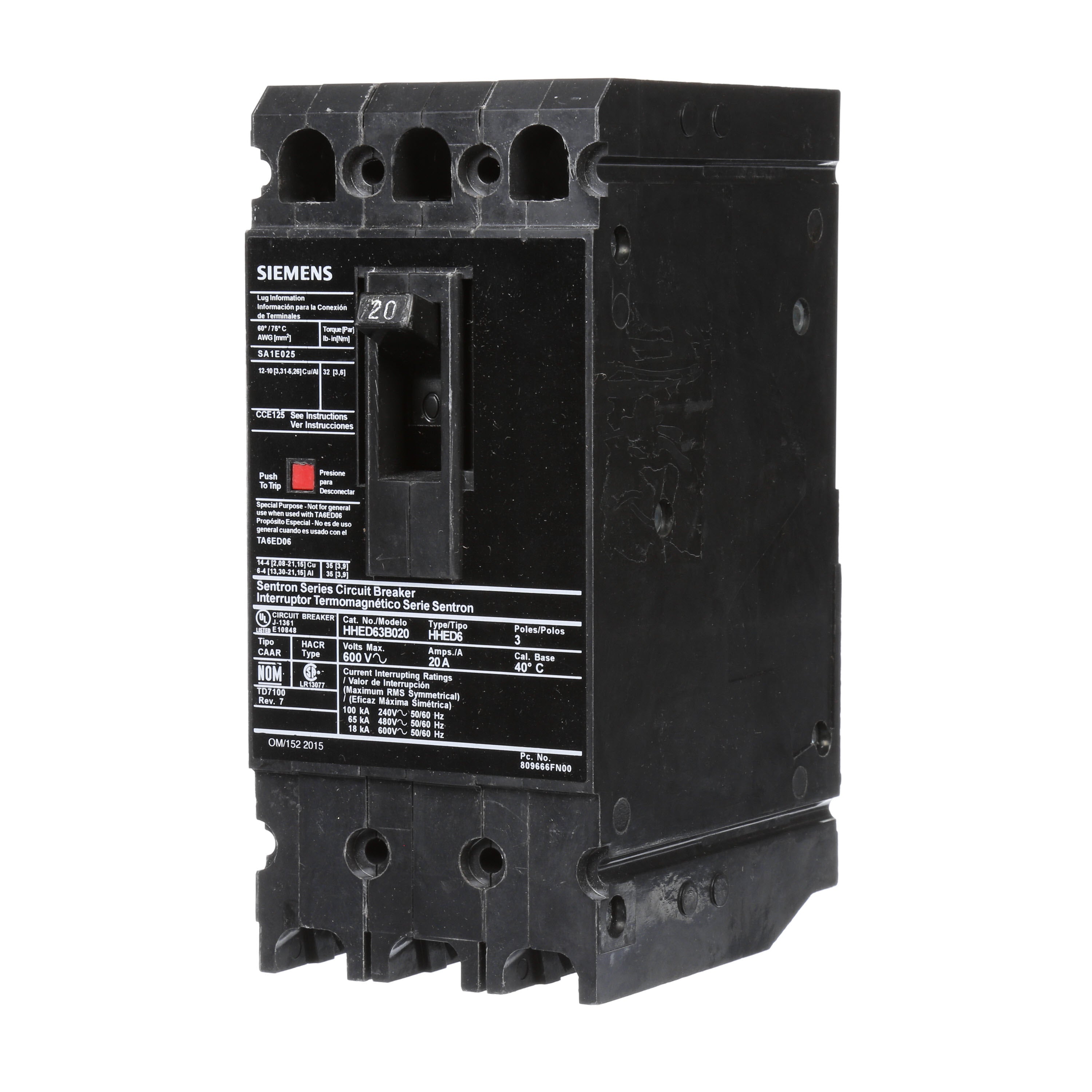

Siemens HHED63B020 3-Pole 20 Amp 600 VAC 18 kA Molded Case Circuit Breaker

Product Description

The Siemens HHED63B020 is a low voltage Sentron molded case circuit breaker with a thermal-magnetic trip unit. This standard 40 deg C breaker features an ED frame with extra high breaking capacity. Rated at 20A, 3-pole, with 18kAIC at 600V and 65kAIC at 480V. Includes a non-interchangeable trip unit and load lugs only (SA1E025).

• Thermal-magnetic trip unit
• Standard 40 deg C breaker ED frame
• Extra high breaking capacity

Product Highlights

This Siemens circuit breaker provides reliable circuit protection with a thermal-magnetic trip and high breaking capacity.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HHED63B020

Technical Specifications

• GTIN: 00783643308039
• Type: HHED6
• Brand: Siemens
• Frame: ED
• Voltage: 600 Volt
• Amperage: 20 Amp
• Standard: HACR
• Frequency: 50/60 Hz
• Sub Brand: Sentron
• Trip Type: Thermal-Magnetic
• Product UPC: 78364330803
• 12-Digit UPC: 783643308039
• Applications: Standard 40C Breaker
• Number of Poles: 3 Pole
• Interrupt Rating: 18 kAIC
• Operating Temperature: 40C
• Wire Range (CU): 14 - 10AWG
• Wire Range (AL): 12 - 10AWG
• Poles: 3
• Breaking Capacity: 18 kA
• Trip Unit: Thermal-Magnetic, Non-Interchangeable
• Mounting Style: Bolt-On
• Protection: Thermal Magnetic
• Trip Functions: LI - Long-Time and Instantaneous
• Phase: 3
• Category: Molded Case
• Connection: Bolt-On
• Functions: LI - Long-Time and Instantaneous
• AIC Ratings: 65kA@480V
• Part Number: HHED63B020
• Manufacturer: Siemens / ITE
