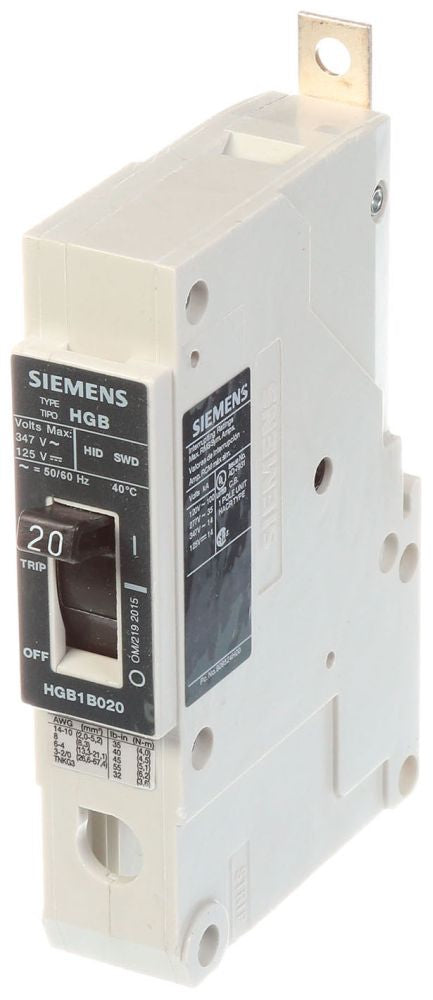

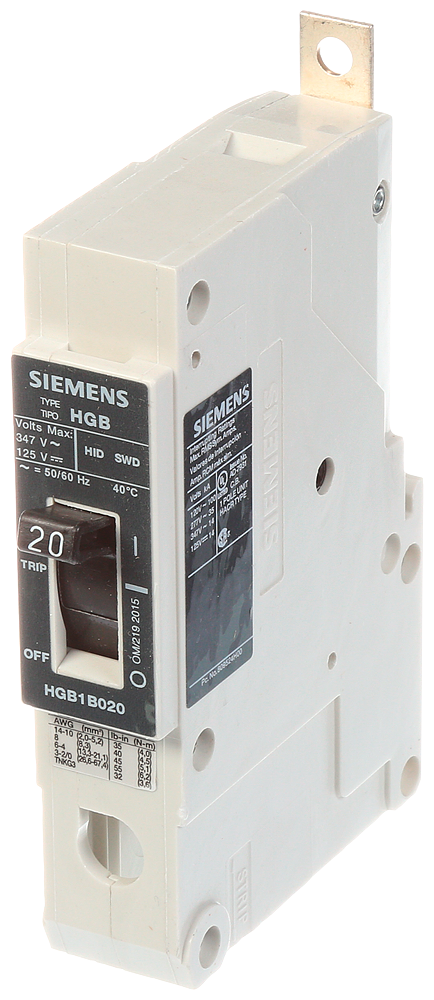

Siemens HGB1B020B BRKR HGB 20A 1P 277V

Product Description

The Siemens HGB1B020B is a 20 amp, one pole circuit breaker designed for low voltage applications. It operates at 277 volts with a high breaking capacity rated at 35 kAIC. This molded case circuit breaker features a thermal magnetic trip unit to provide reliable protection for electrical installations. It is suitable for industrial and commercial use, effectively managing electrical load and preventing overloads.

• UL listed for safety and reliability
• Compatible with panelboards with load side lugs only
• Wire range accommodates 14 to 10 AWG copper or aluminum conductors

Product Highlights

Ideal for use in diverse electrical systems, this circuit breaker is easy to mount on panelboards, ensuring quick installation.

Product Information

Standard Information

• Catalog Number: HGB1B020B
• Brand: Siemens

Technical Specifications

• Voltage Rating: 277 Volt
• Amperage Rating: 20 Amp
• Number of Poles: 1
• Interrupt Rating: 35 kAIC
• Frequency Rating: 50/60 Hz
• Material: Molded Case
• Country of Origin: Mexico
• Operating Temperature: 40 °C
