Siemens HFXD63B200L 3-Pole 200 Amp 600 VAC 25 kA Molded Case Circuit Breaker

Product Description

The Siemens HFXD63B200L is a three-pole molded case circuit breaker rated at 200 Amps and designed for voltages up to 600 VAC. It features a thermal-magnetic trip unit, ensuring reliable protection. With a high breaking capacity of 25 kiloamperes at 600 volts, this circuit breaker is suitable for various power distribution applications.

• Voltage rating: 600 VAC
• Amperage: 200 Amps with high interruption capacity

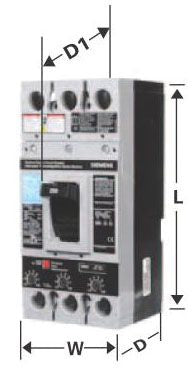

• Dimensions: Width four point five inches, height nine point five inches, depth four inches

Product Highlights

This molded case circuit breaker is ideal for industrial and commercial settings where protection and operational reliability are crucial.

Product Information

Standard Information

• Brand: Siemens
• MPN: HFXD63B200L

Technical Specifications

• Voltage: 600 Volt
• Current rating: 200 Amp
• Number of poles: 3 Pole
• Interrupting rating: 25 kAIC
• Frame type: FD
• Operating temperature: 40C
• Frequency: 50/60 Hz
• Enclosure: Varying
