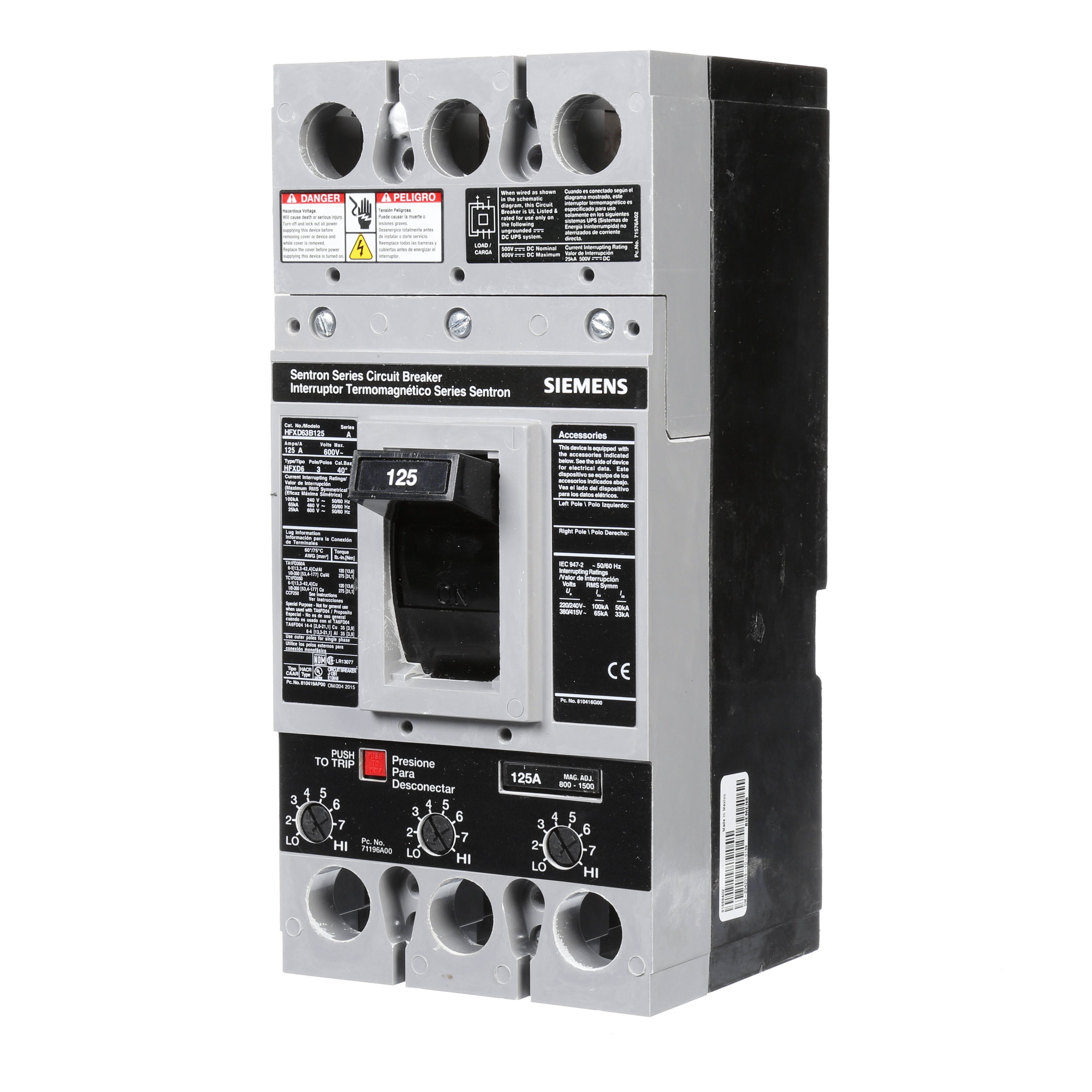

Siemens HFXD63B125 Sentron Molded Case Circuit Breaker 125A 3-Pole

Product Description

The SIEMENS HFXD63B125 is a low voltage Sentron molded case circuit breaker with a thermal-magnetic trip unit. This assembled standard 40 deg C breaker features an FD frame with high breaking capacity, 125A 3-pole configuration, and a non-interchangeable trip unit. Special features include no lugs installed. It is suitable for standard 40C breaker applications.

• Thermal-Magnetic Trip Unit
• High Breaking Capacity
• Non-Interchangeable Trip Unit

Product Highlights

Sentron molded case circuit breaker with thermal-magnetic trip, high breaking capacity, and no lugs installed.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HFXD63B125
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: HFXD63B125
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: Sentron
• Country of Origin: Mexico
• Made in USA: No
• Actuator: Varying
• Application: Standard 40C Breaker
• Enclosure: Varying
• Frame: FD
• Frequency Rating: 50/60 HZ
• Interrupt Rating: 25KAIC
• Number of Poles: 3
• Special Features: High IC Rating
• Standard: HACR
• UPC: 783643318472
• GTIN: 00783643318472
• Item Type: HFXD6
• Operating Temperature: 40C
• Trip Range: 800-1500
• Trip Type: Thermal-Magnetic
• Voltage Rating: 600//500
• Breaker Type: Molded Case
• Voltage: 600V
• Amperage: 125A
• Breaking Capacity at 600V: 25KAIC
• Breaking Capacity at 480V: 65KAIC
• Trip Unit: Thermal - Magnetic
• Frame Type: FD Frame
• Applications: Standard 40C Breaker
• Frequency: 50/60 Hz
• Current Rating: 125 Ampere at 40 Deg C
• Maximum AC Voltage Rating: 600 V
• Maximum DC Voltage Rating: 500 V
• Terminal Type: Load and Line Lug
• Approval: UL, CSA, CE, IEC
