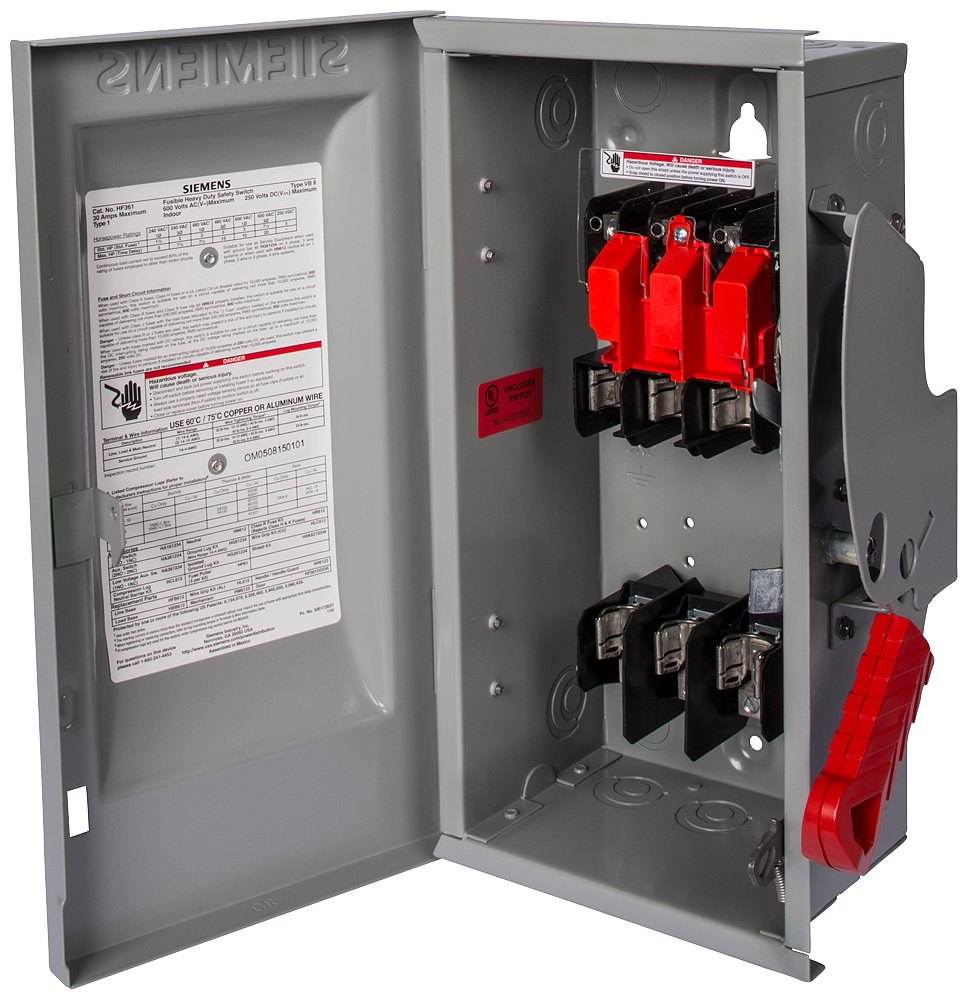

Siemens HFB612 fusible safety switch line base 600 VAC 30 amp

Product Description

The Siemens HFB612 is a replacement fusible safety switch line base, designed for 30 Amp HD and 60 Amp GD applications at 600V. This single throw switch is suitable for various electrical disconnect needs. It operates effectively within an ambient temperature range of -20F to 120F.

• Rated for 600 VAC
• 30 Amp current capacity
• Suitable for safety switch applications

Product Highlights

Replacement fusible safety switch line base for electrical disconnect applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HFB612
• Country of Origin: Mexico

Technical Specifications

• Type: ENCLOSED/SAFETYSWITCH
• Brand: Siemens
• Width: 3.150 in
• Action: SINGLE THROW
• Height: 3.85 Inch
• Length: 6.05 Inch
• Voltage: 600 Volt
• Amperage: 30 Amp
• Frequency: 60 Hz
• Insulated?: No
• Operating Temperature: (-20F-120F) AMBIENT TEMPERATURE
• Manufacturer Part Number: HFB612
• UPC Code: 783643174436
