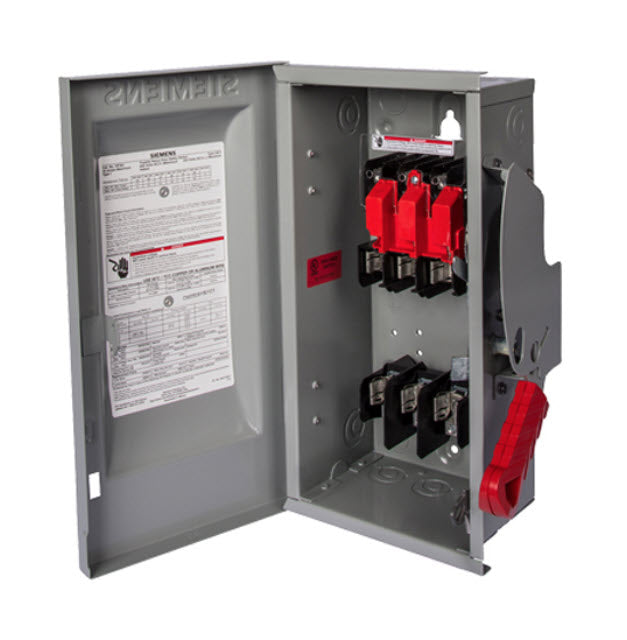

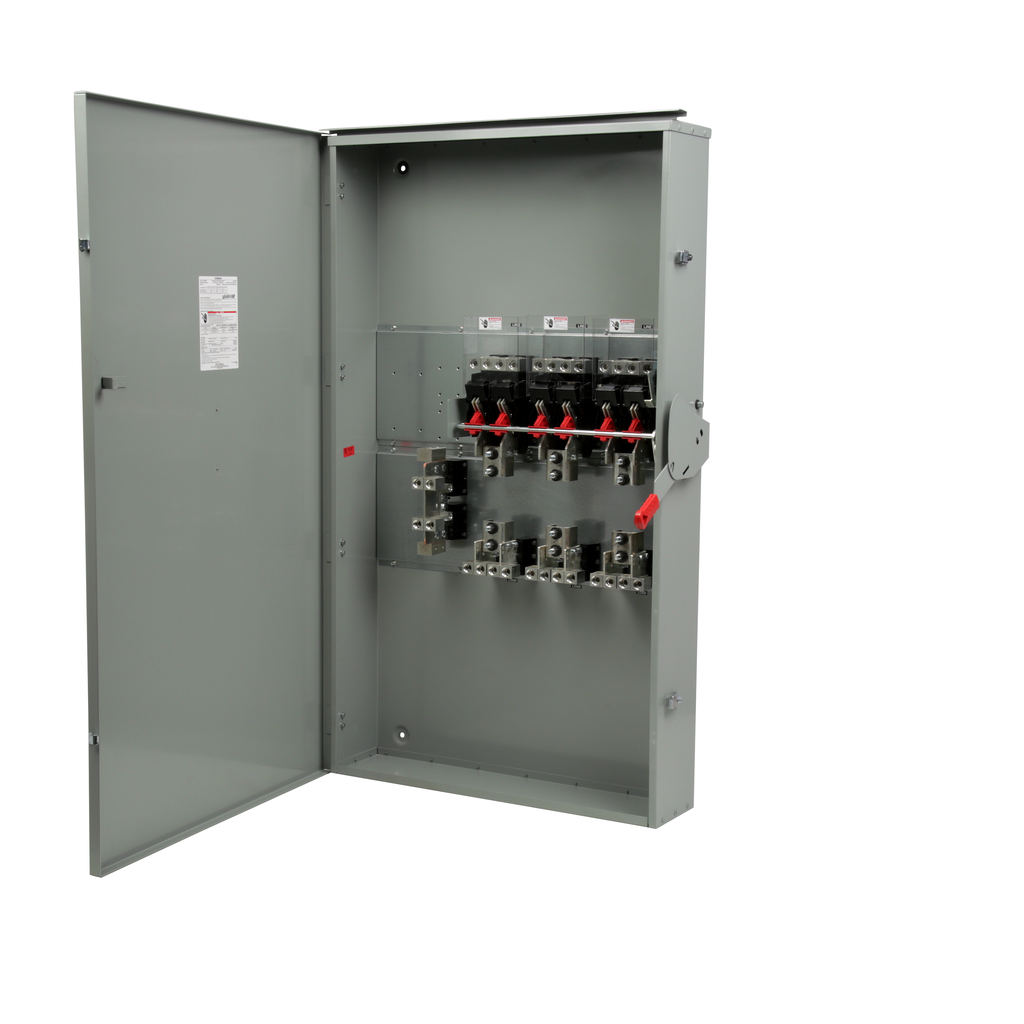

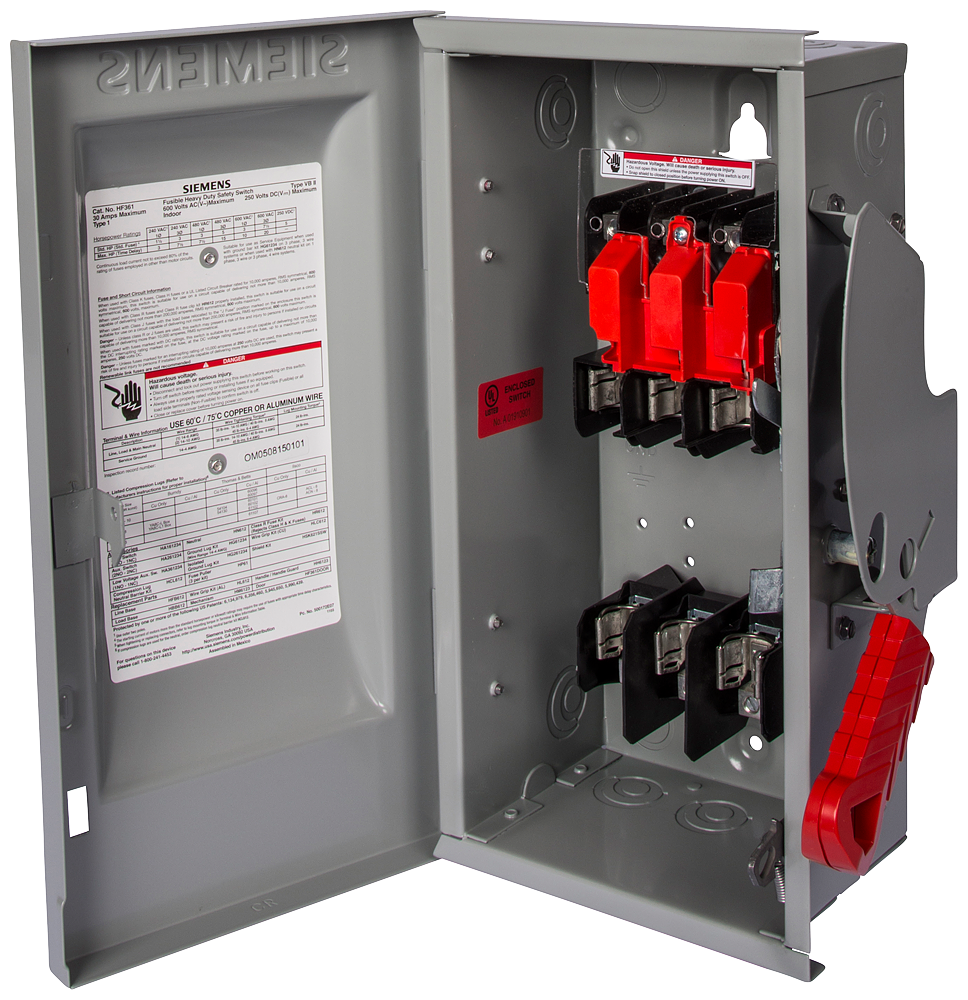

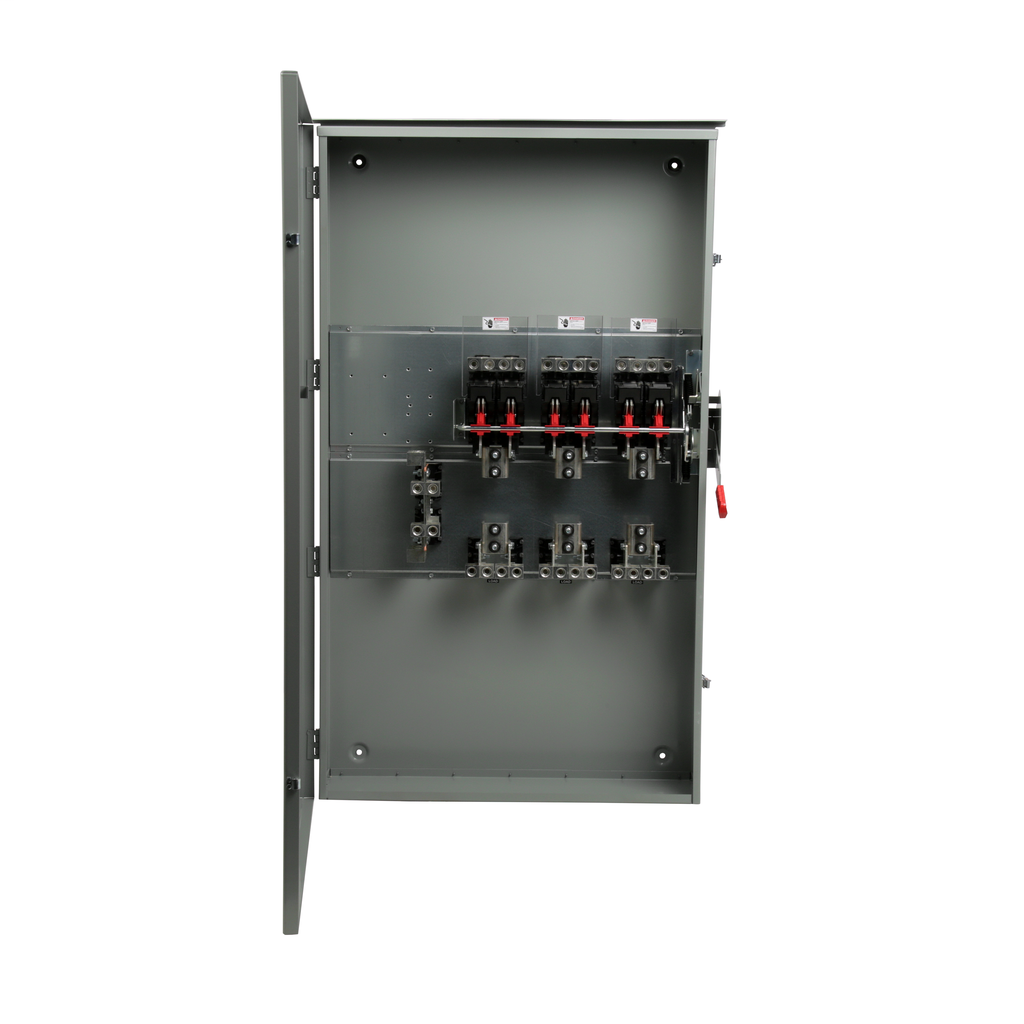

Siemens HF368NR Heavy Duty Fusible Safety Switch 1200 Amp NEMA 3R

Product Description

The Siemens HF368NR is a heavy-duty safety switch designed for low voltage circuit protection. This 3-pole, 4-wire switch features a NEMA 3R enclosure suitable for outdoor use and is rated for 600VAC at 1200A. It is designed with 3-fuse and solid neutral.

• Quick-make, quick-break operating mechanism ensures positive operation.
• Visible blade, double-break switching action.
• Arc chutes dissipate heat and prolong switch life.

Product Highlights

This Siemens safety switch offers reliable performance with a robust design, making it suitable for disconnecting means for service entrance and loads.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HF368NR
• Country of Origin: USA

Technical Specifications

• Type: HEAVYDUTYSWITCH
• Brand: Siemens
• Action: SINGLE THROW
• Voltage: 600 Volt
• Amperage: 1200 Amp
• Material: Steel
• Enclosure: NEMA3R
• Frequency: 60 Hz
• Sub Brand: VBII
• Applications: DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
• Mounting Type: SURFACE
• Connection Type: MECHANICAL LUGS
• Number of Poles: 3 Pole
• Country of Origin: USA
• Operating Temperature: -29 degrees C
• AC Voltage Rating: 480/600 V
• Approval: UL 98
• DC Voltage Rating: 250 V
• Fuse Provision: Fusible
• Fuse Type: Class H/J/L/R/T, Time Delay
• Neutral Type: Solid
• Number Of Wires: 4
• Power Rating: 250 HP at 480/600 VAC 3-Phase (Standard), 500 HP at 480/600 VAC 3-Phase (Maximum for Time Delay Fuse), 50 HP at 250 VDC
• Product UPC: 783643174214
• Phase: 3
• Short Circuit Current Rating: 200 kA
• Terminal Type: Lug
• Temperature Rating: -29 to 85 deg C
• Poles: Three Pole
• Enclosure NEMA Rating: NEMA 3R
• Component: Fusible Disconnect Switch
• Current: 1200 Amp
• Part Number: HF368NR
• Manufacturer: Siemens Breakers
• Family: Vbii Series
• Category: Circuit Protection Accessories
• Series: -
• Packaging: Box
• Part Status: Active
• Accessory Type: Switch
• For Use With/Related Products: -
