Siemens HF367NR Low Voltage Circuit Protection Heavy Duty Safety Switch 600VAC 800A

Product Description

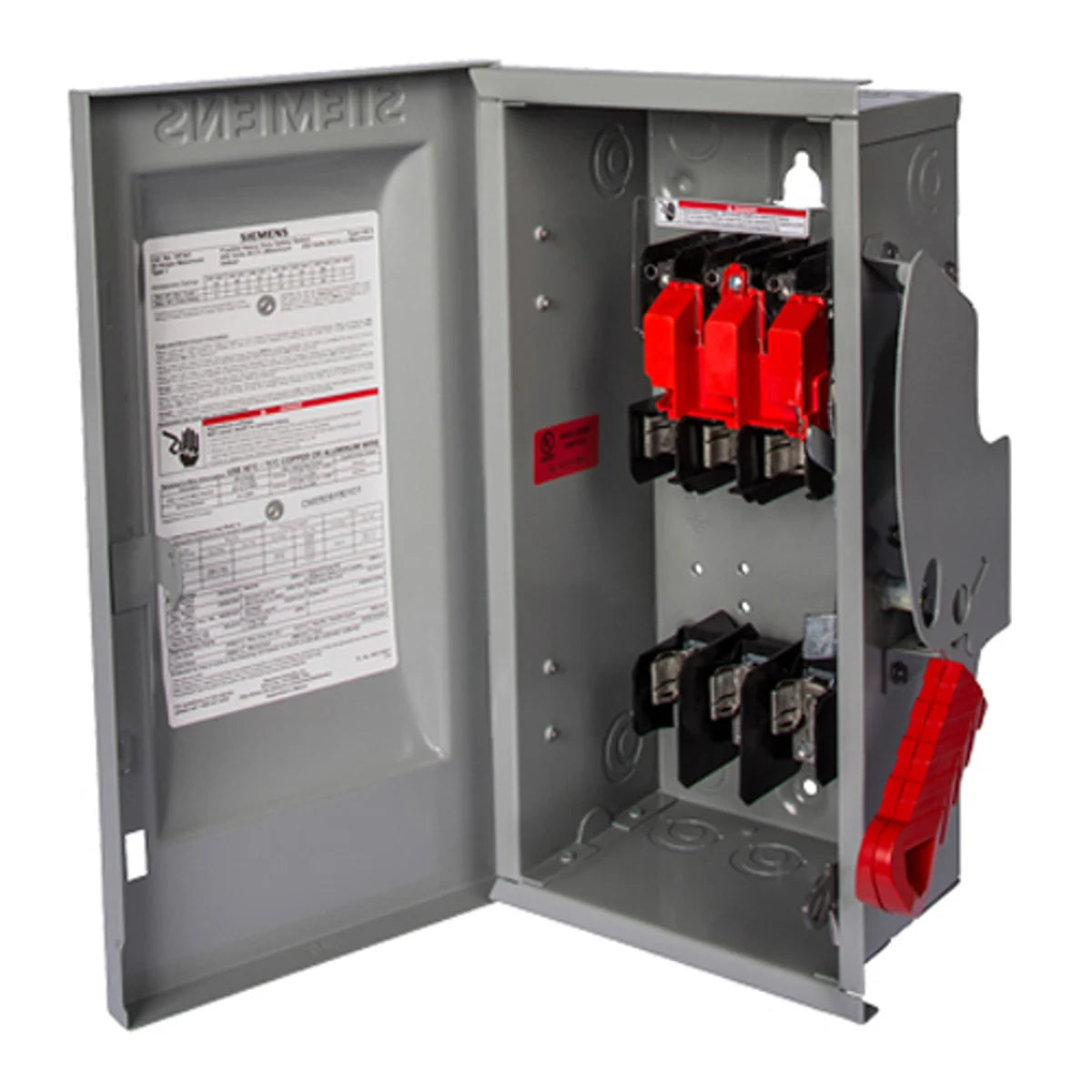

The Siemens HF367NR is a Low Voltage Circuit Protection Heavy Duty Safety Switch. This model features three-pole and three-fuse configurations, with a solid neutral. It is housed in a NEMA three R enclosure, making it suitable for outdoor applications. Rated for six hundred volts alternating current and an amperage of eight hundred, this switch can handle a horsepower of up to two hundred fifty.

• Type VBII Enclosed Fusible Heavy Duty Low Voltage
• Suitable for outdoor service and load disconnecting
• Meets UL 98 standards for safety

Product Highlights

The HF367NR enhances safety and reliability in electrical systems by providing robust protection and circuit control.

Product Information

Standard Information

• Catalog Number: HF367NR
• Brand: Siemens

Technical Specifications

• Amperage Rating: 800 A
• Voltage Rating: 600 VAC
• Horsepower: 250 hp
• Number of Poles: 3
• Enclosure Type: NEMA 3R
• Material: Steel
• Mounting Type: Surface
• Operating Temperature: -29 to 85 deg C
