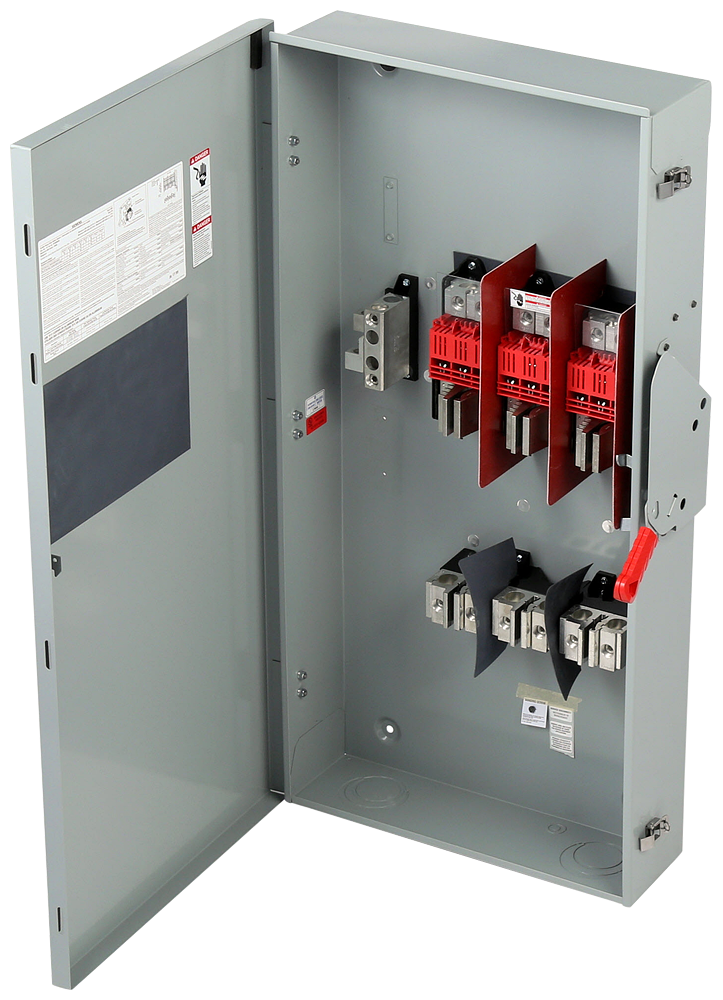

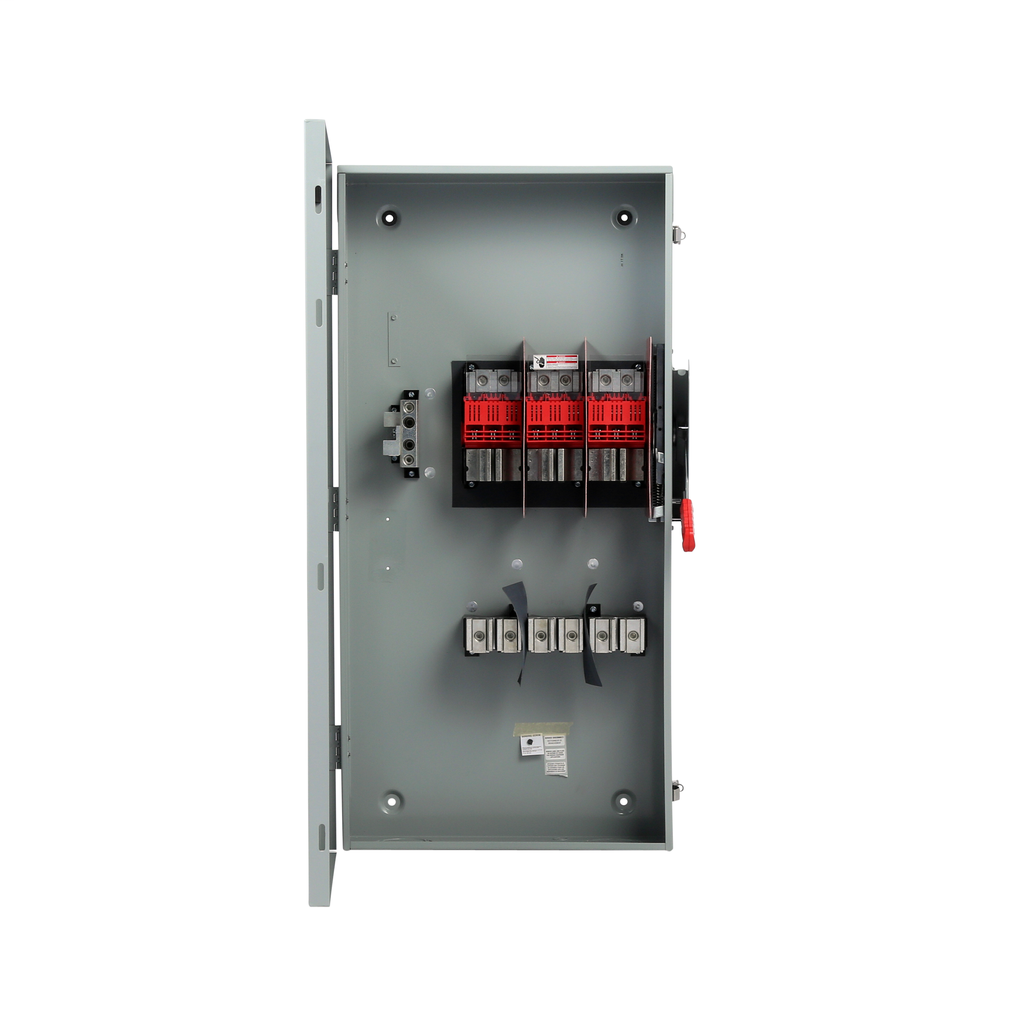

Siemens HF366NRA Type VBII Fusible Heavy Duty Single Throw Safety Switch With Neutral, 600 VAC, 600 A, 200 hp, 500 hp, 3 Poles

Product Description

The Siemens HF366NRA Type VBII Fusible Heavy Duty Single Throw Safety Switch provides reliable circuit protection. This switch is designed for use in various applications requiring disconnects and safety measures. The HF366NRA model operates at a voltage of six hundred volts alternating current and can handle an amperage of six hundred amps.

• Three poles and four wires for versatile connections
• Rated for two hundred horsepower, suitable for heavy-duty applications
• NEMA 3R enclosure for outdoor usage

Product Highlights

This safety switch is built to ensure positive operation and reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF366NRA

Technical Specifications

• Amperage Rating: 600 A
• Application: For circuit protection
• Contact Form: VBII
• Country of Origin: MX
• Enclosure Type: NEMA 3R
• Horsepower: 200 hp, 500 hp
• Material: Steel
• Mfg Standards/Approvals: UL 98
• Mounting Type: Surface
• Number of Poles: 3
• Number of Wires: 4
• Package Height: 45.32 inches
• Package Length: 6.94 inches
• Package Weight: 100.0 lb
• Package Width: 22.4 inches
• Phase: 3
• Series: Type VBII
• Temperature Rating: -29 to 85 deg C
• Terminal Type: Lug
• Type: Type VBII Fusible Heavy Duty Single Throw
• Voltage Rating: 600 VAC
