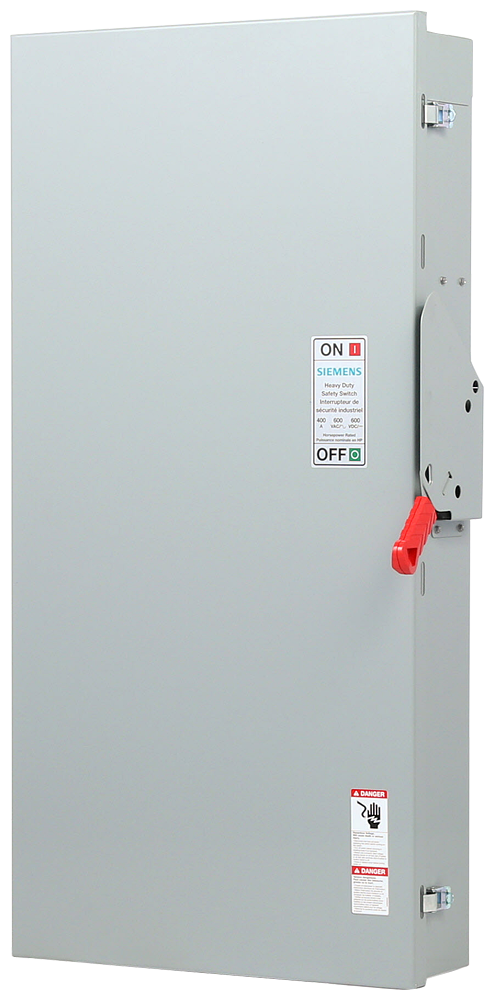

Siemens HF365NA 600 VAC 400 Amp 3-Pole 4-Wire NEMA 1 Heavy Duty Fusible Safety Switch

Product Description

The Siemens HF365NA is a heavy duty fusible safety switch for circuit protection. This switch is rated for six hundred volts and four hundred amps, designed for indoor use in a NEMA 1 enclosure. It features three poles and provides safe disconnecting means for service entrance and loads.

• Three-pole design with a solid neutral
• Fusible, with provisions for Class H or K fuses
• Rated for sixty thousand cycle operation

Product Highlights

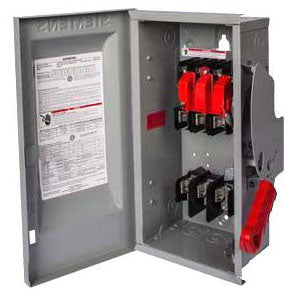

This switch ensures reliable operation with a quick-make, quick-break mechanism and a highly visible red handle grip for user safety.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF365NA

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 400 A
• Enclosure Type: NEMA 1
• Number of Poles: 3
• Number of Wires: 4
• Material: Steel
• Dimensions: Width - 22.400 in, Height - 45.32 in, Length - 6.94 in
• Weight: 138.000 lb
• Country of Origin: Mexico
• Operating Temperature: -29 to 85 degrees C
