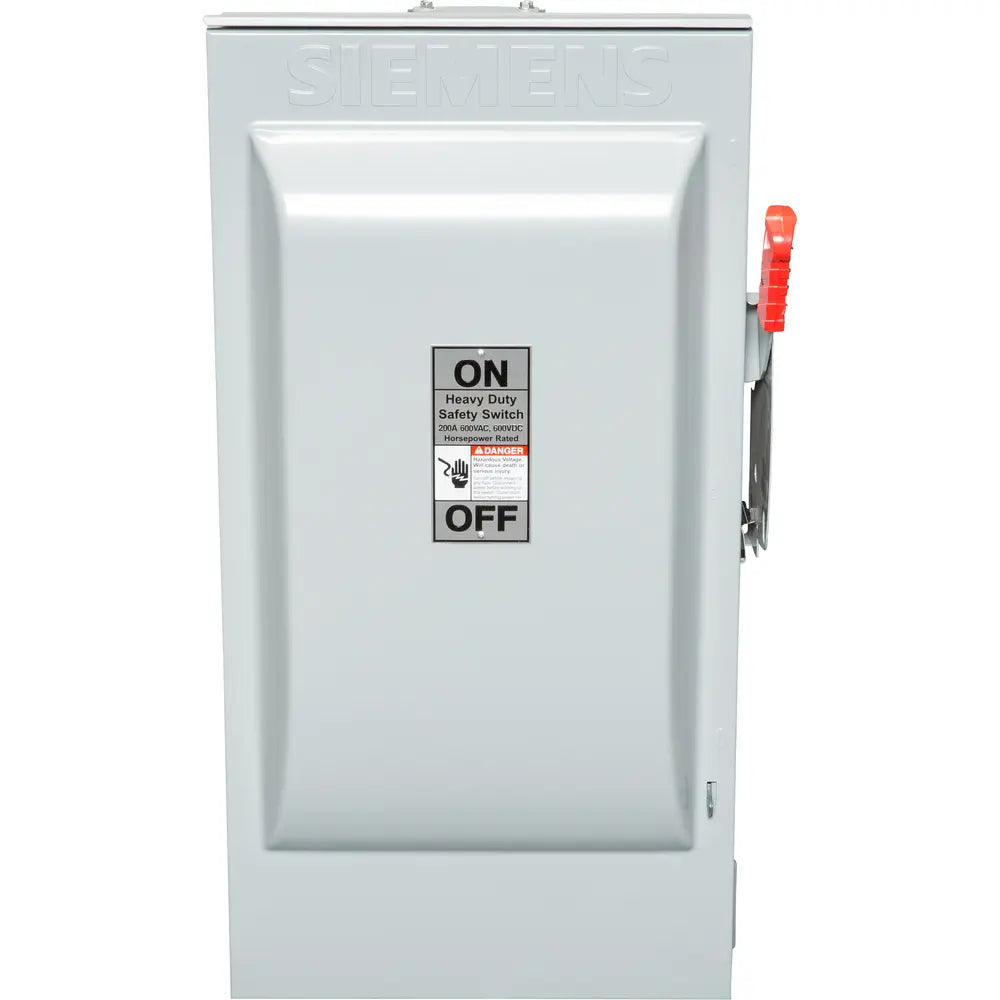

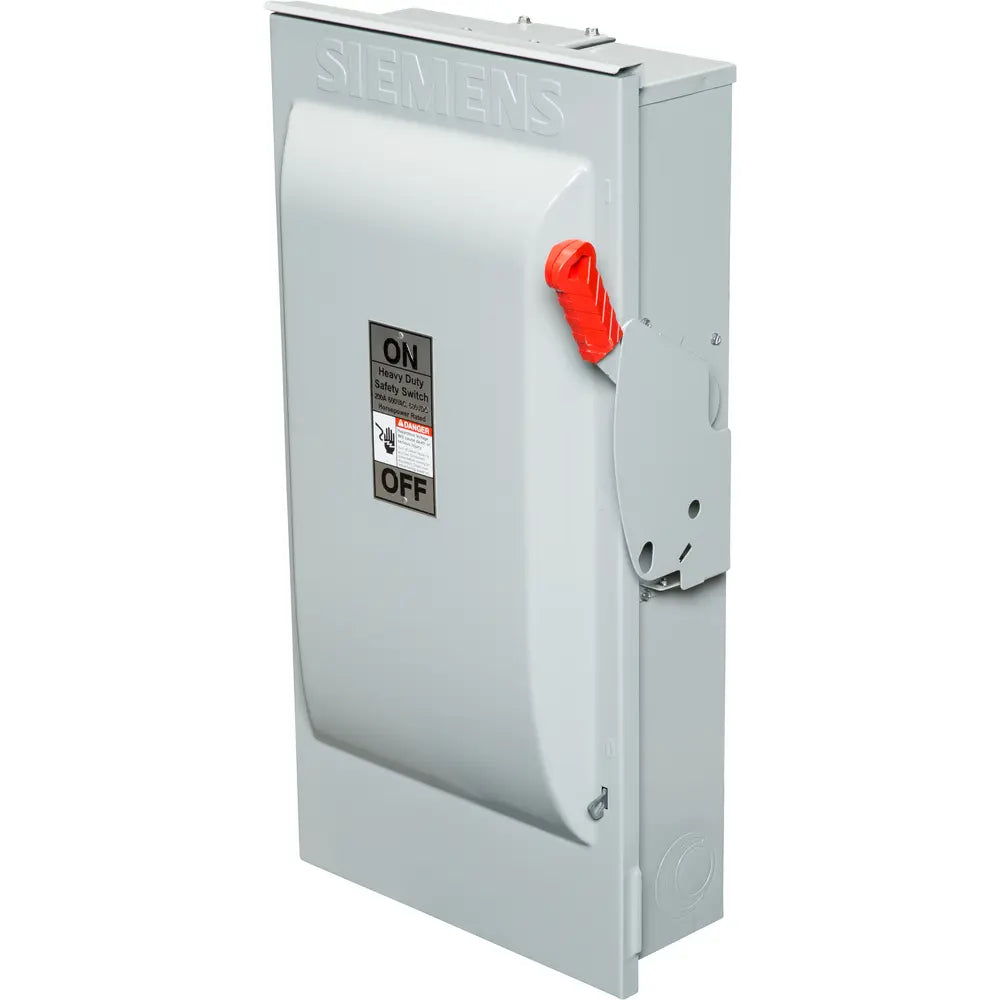

Siemens HF364NR Heavy Duty Fused Safety Switch 200A NEMA 3R

Product Description

The Siemens HF364NR is a heavy duty fused safety switch designed for low voltage circuit protection. It operates at a voltage of six hundred volts alternating current and supports a current rating of two hundred amperes. This switch features a three-pole, four-wire configuration with three fuses included and a solid neutral. It is housed in a type NEMA three-R enclosure suitable for outdoor use.

• Rated for 600VAC at 200A

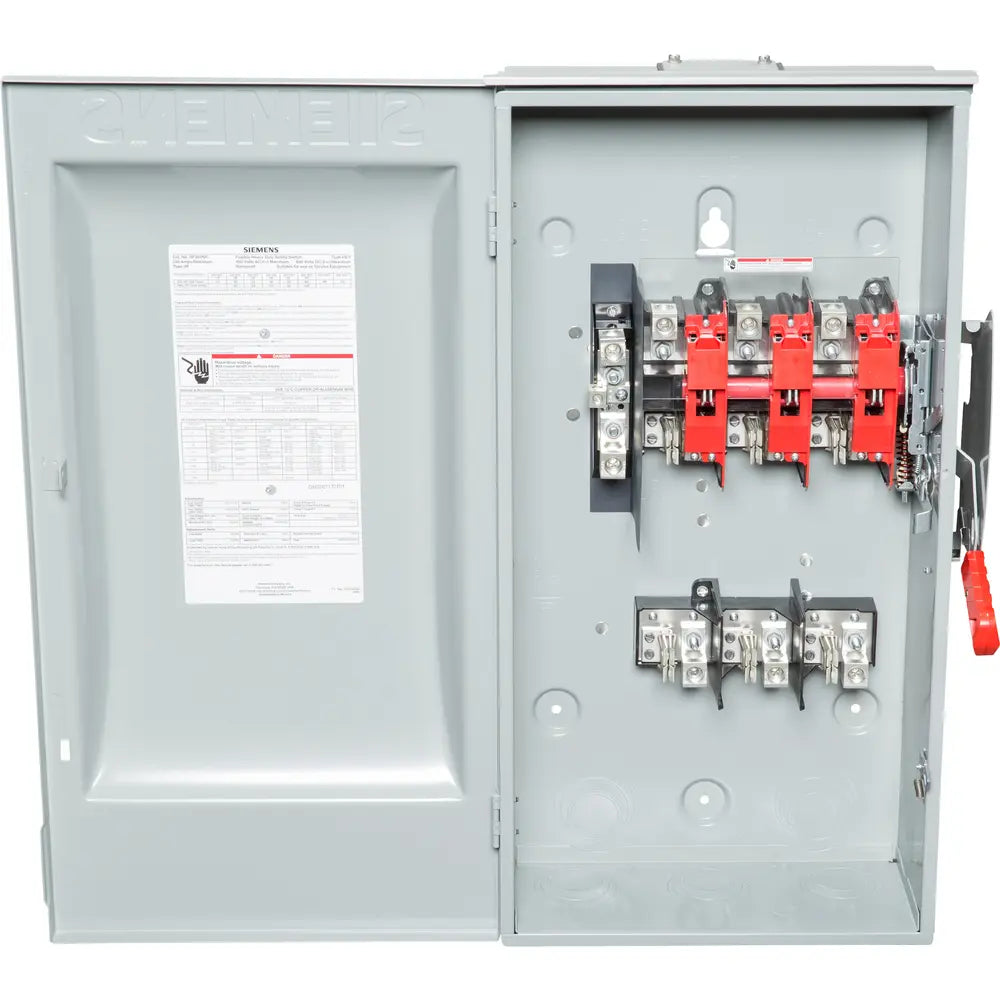

• Three-pole configuration with three fuses
• Steel enclosure for durability

Product Highlights

This safety switch is ideal for various applications, ensuring reliable circuit protection in wet or dry locations.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• MPN: HF364NR
• Type: Fusible
• Voltage Rating: 600 VAC
• Amperage Rating: 200 Amperes
• Number Of Poles: 3-Pole
• NEMA Rating: NEMA 3R
• Height: 33.85 Inches
• Width: 18.89 Inches
• Depth: 9.84 Inches
• Weight: 42.8 Pounds
• Material: Steel
• Environmental Conditions: Wet/Dry Location
• Actuator: Lever
• Mounting Type: Surface
• Frequency Rating: 50/60 Hertz
• Country of Origin: MX
