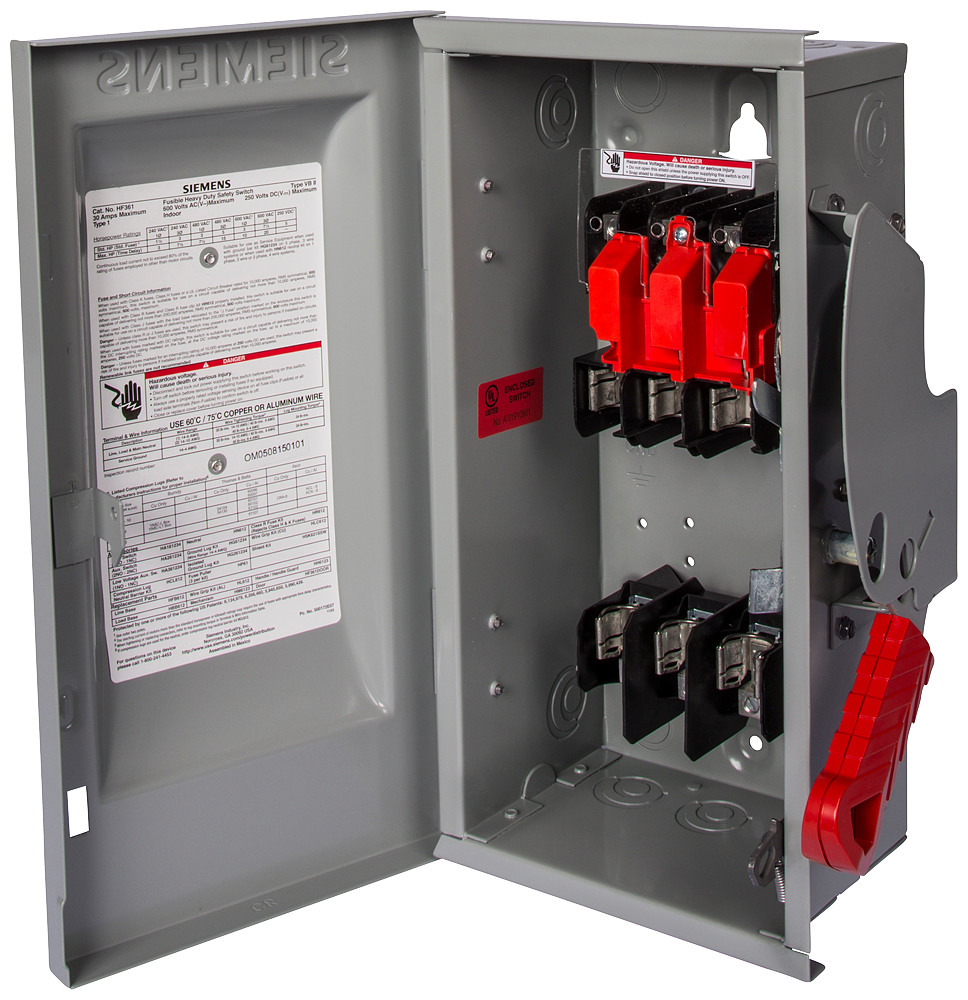

Siemens HF364 SWITCH SAF 600VAC 200A 50HP 60HP TPST

Product Description

Siemens HF364 is a Type VBII Enclosed Fusible Heavy Duty Low Voltage Single Throw Safety Switch rated for six hundred volts alternating current and two hundred amperes. This device is suitable for indoor applications and can handle up to fifty horsepower at six hundred volts. It is essential for disconnecting power for service entrance or load applications.

• Type VBII Enclosed Fusible Safety Switch
• Rated for 600 VAC and 200 A
• Three poles with TPST contact configuration

Product Highlights

This switch features a robust design for enhanced performance and safety during operation.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF364

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Mounting Type: Surface
• Enclosure Type: NEMA 1
• Material: Steel
• Temperature Rating: -29 to 85 deg C
• Dimensions: 29.9 in H x 15.39 in W x 12.33 in D
• Short Circuit Current Rating: 200 kA
