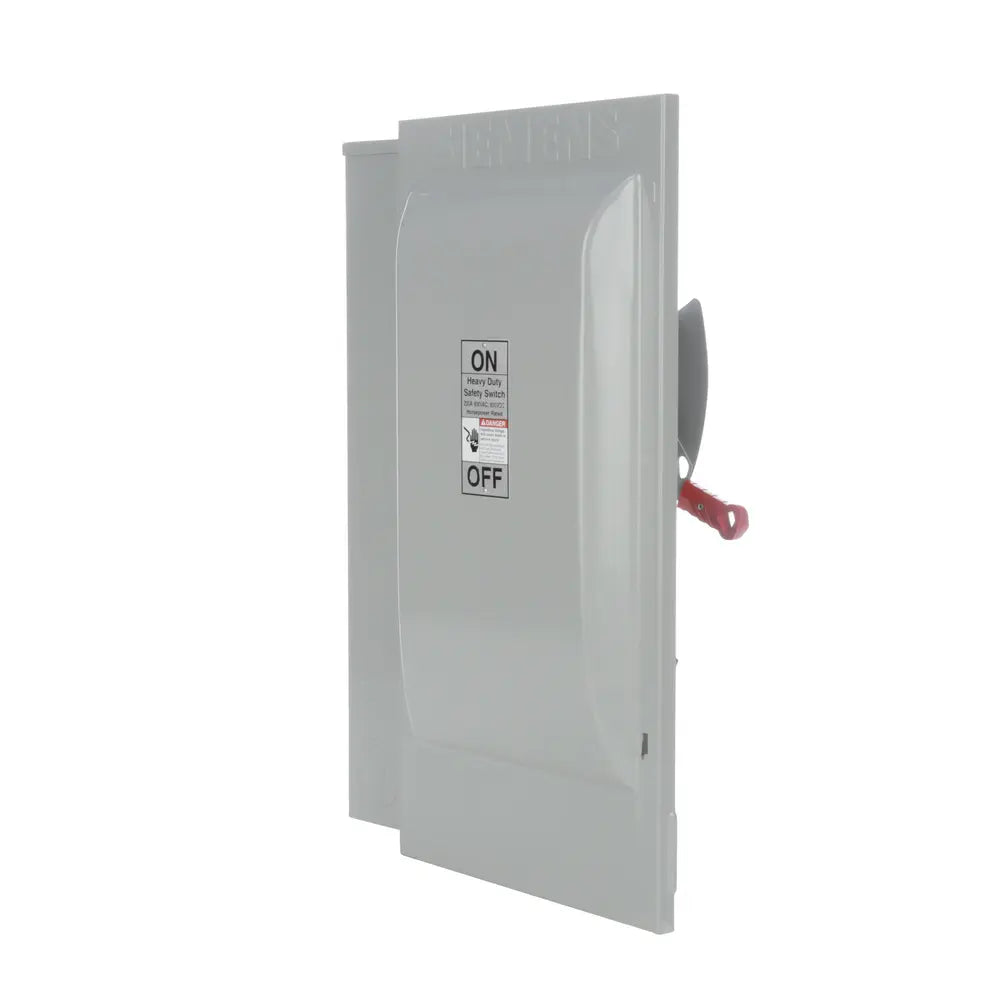

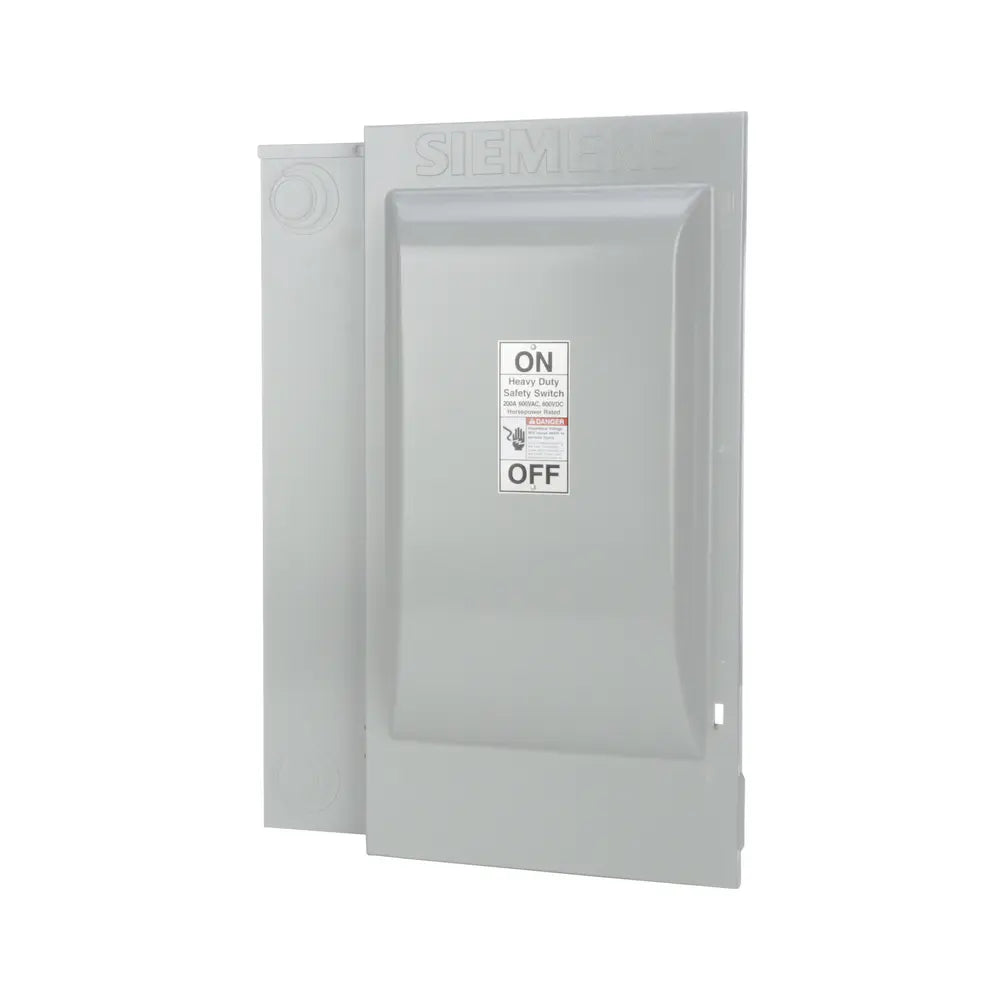

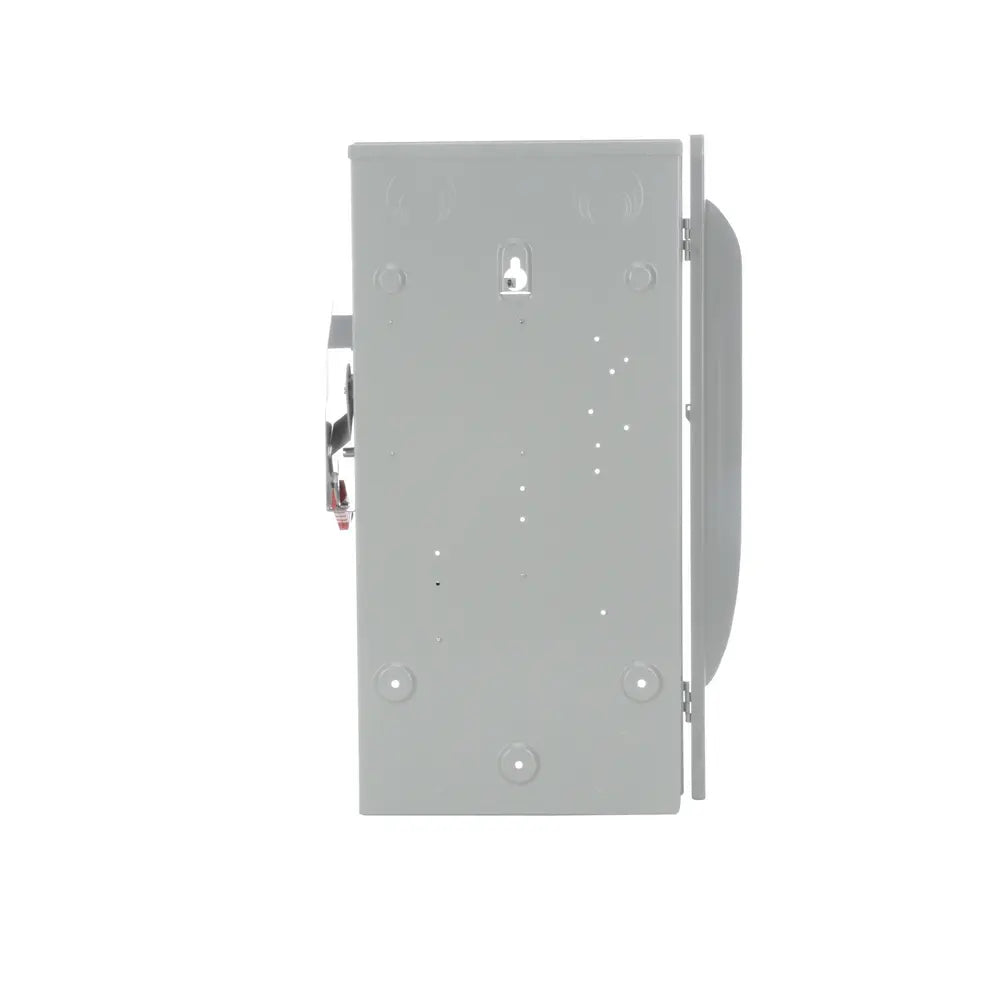

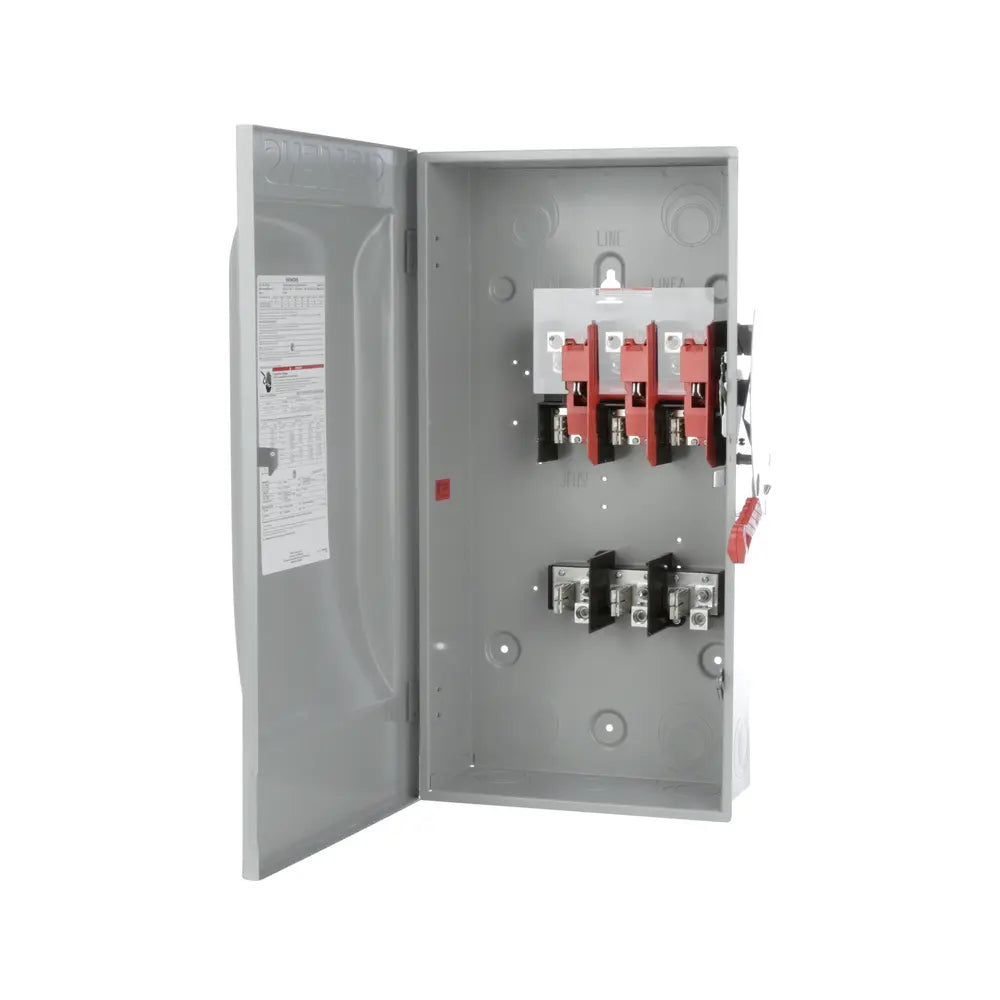

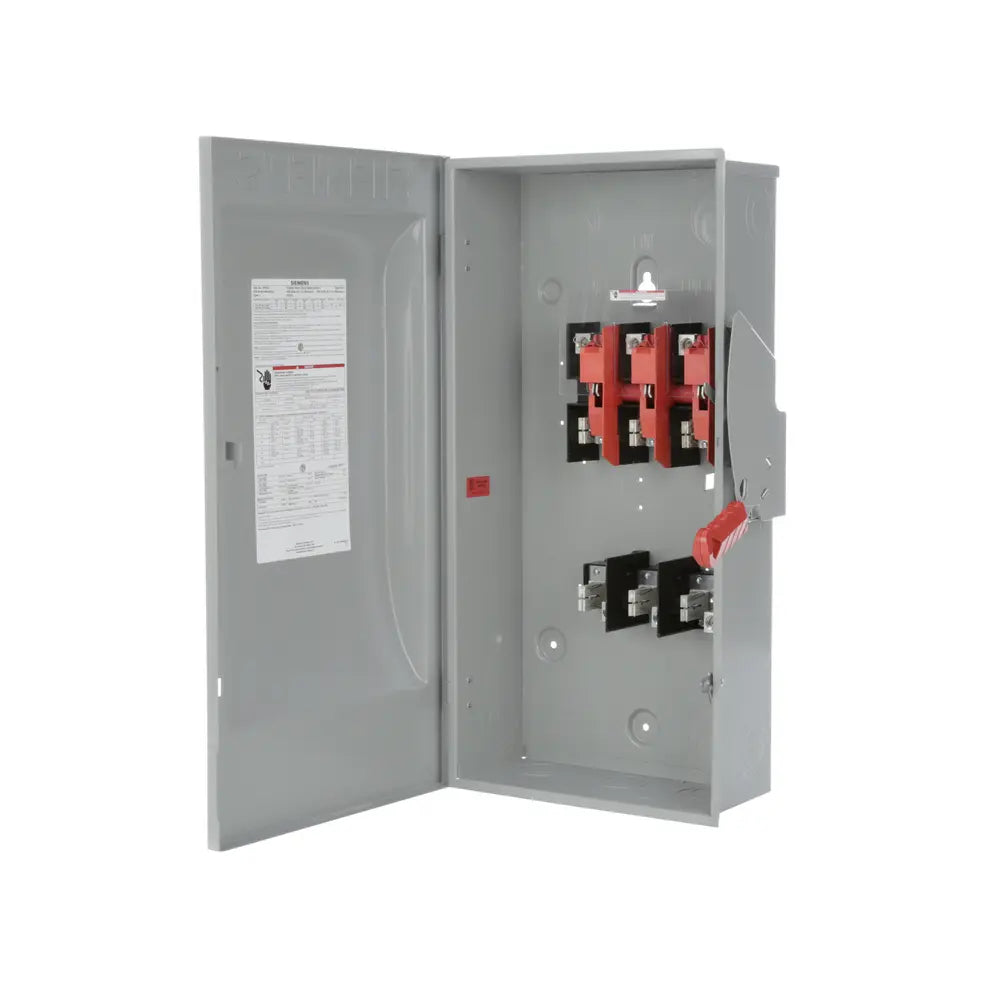

Siemens HF364 Heavy Duty Safety Switch 200A 3-Pole 3-Fuse NEMA 1

Product Description

The Siemens HF364 Heavy Duty Safety Switch is designed for low voltage circuit protection. This switch features a three-pole structure and includes three fuses, suitable for indoor use in a NEMA 1 enclosure. It is rated for six hundred volts alternating current (VAC) and can handle up to two hundred amperes of current.

• Fusible type safety switch for reliable power management
• Constructed from robust steel for durability
• Surface mounting for easy installation

Product Highlights

This heavy-duty safety switch is essential for safely disconnecting electrical circuits in commercial or industrial applications. It is UL 98 certified and capable of operating under dry conditions.

Product Information

Standard Information

• Brand: Siemens Industry
• Part Number: 0235-0812

Technical Specifications

• Amperage Rating: 200 Amperes
• Voltage Rating: 600 VAC
• Number of Poles: 3-Pole
• NEMA Rating: NEMA 1
• Frequency Rating: 50/60 Hertz
• Height: 33.85 Inches
• Width: 20.07 Inches
• Depth: 10.23 Inches
• Weight: 40.89 Pounds
• Actuator: Lever
• Material: Steel
• Mounting: Surface
• Connection: Mechanical
• Country of Origin: MX
• Environmental Conditions: Dry Location
