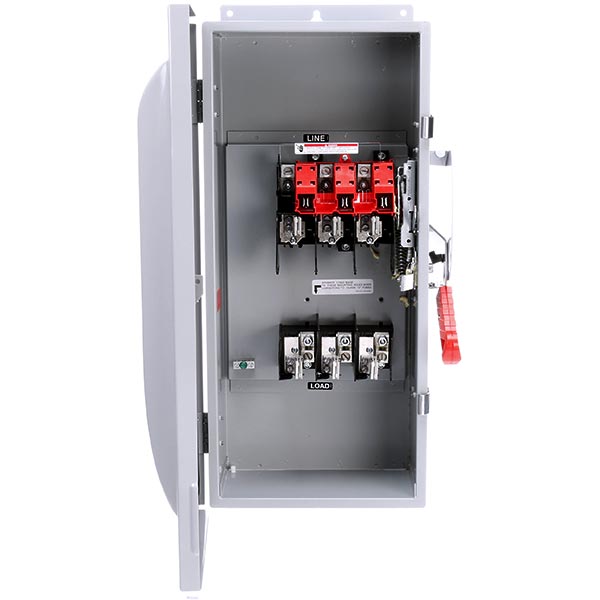

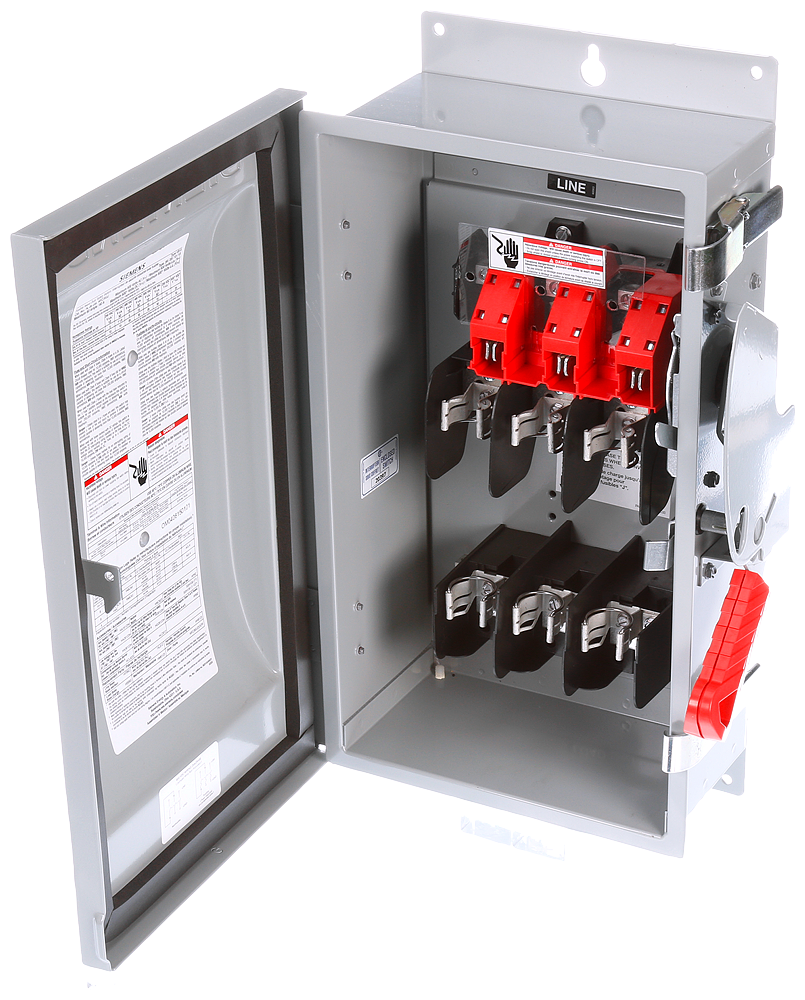

Siemens HF363J 480/600 VAC 250/600 VDC 100 Amp 3-Pole 3-Wire NEMA 12 Heavy Duty Fusible Safety Switch

Product Description

The Siemens HF363J is a heavy duty fusible safety switch designed for low voltage circuit protection. It features a three-pole, three-wire construction and is capable of handling voltages up to six hundred volts alternating current and six hundred volts direct current with a current rating of one hundred amps.

• Heavy-duty fused switch in a NEMA 12 enclosure
• Single throw switch for easy operation
• Suitable for industrial applications and service entrance disconnecting

Product Highlights

This switch is engineered for reliability and safety in electrical systems. It provides robust circuit protection and is designed to comply with industry standards.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF363J

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 100 A
• Frequency Rating: 60 Hz
• Number of Poles: 3
• Enclosure Type: NEMA 12
• Dimensions: 27.9 inches (L) x 14.4 inches (W) x 8.4 inches (H)
• Weight: 26.2 lb
• Temperature Rating: -29 to 85 degrees C
• Application: Disconnecting means for service entrance and loads
