Product Description

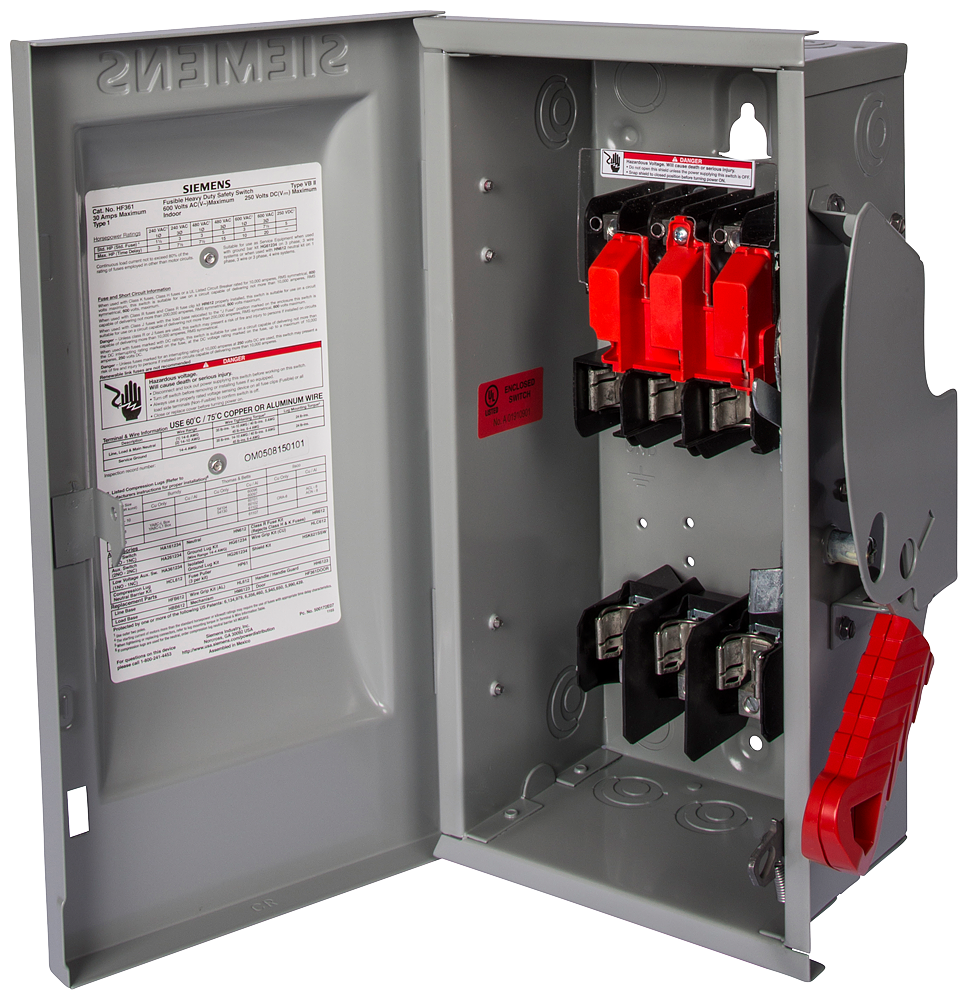

The Siemens HF363 is a heavy-duty safety switch designed for low voltage applications. This model is rated for six hundred volts and one hundred amps. It features a three-pole and three-wire configuration with TPST contact configuration.
- Quick-make, quick-break mechanism for reliable operation
- Compatible with Class H or K fuses for optimal protection
- Features an embossed aluminum nameplate for clear ON/OFF indication
Product Highlights
This switch is suitable for indoor applications and complies with UL 98 standards. It is built with a NEMA 1 enclosure, ensuring safety and durability in various environments.
Product Information
Standard Information
-
Manufacturer: Siemens
-
MPN: HF363
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 100 A
-
Horsepower: 25 hp, 30 hp
-
Frequency Rating: 60 Hz
-
Dimensions: 21.95 in H x 10.68 in W x 10.17 in D
-
Enclosure Type: NEMA 1
-
Material: Steel
-
Temperature Rating: -29 to 85 degrees C
-
Short Circuit Rating: 200 kA
