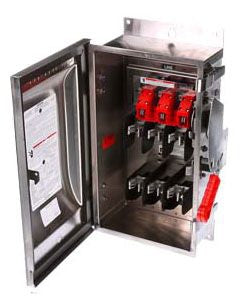

Siemens HF362S Heavy Duty Safety Switch 600V 60A Fusible

Product Description

The SIEMENS HF362S is a heavy duty fusible safety switch rated for 3-pole, 3-wire configurations at 600 volts and 60 amps. It provides a reliable means of disconnecting power to motors, HVAC equipment, and other industrial or commercial loads. The switch accepts fuses for overcurrent protection and is built to handle demanding service conditions. Licensed electricians install this type of disconnect as required by the NEC for motor and equipment branch circuits. Its robust enclosure suits applications where a durable, code-compliant disconnect is required at or near the load.

The HF362S is suited for commercial and light industrial installations where a 600-volt, 60-amp fusible disconnect is required. Typical applications include motor branch circuits, rooftop HVAC units, compressors, and other three-phase electrical loads that require a lockable, visible-blade disconnect point. It is commonly installed by licensed electricians during new construction, equipment replacement, or system upgrades where NEC disconnect requirements apply.

Key Features

• Fusible 3-pole, 3-wire configuration for overcurrent protection
• 600-volt rating suitable for commercial and light industrial circuits
• 60-amp continuous current capacity
• Heavy duty construction for demanding service environments
• Lockable design supports NEC lockout/tagout requirements

Compatibility

Designed as an OEM-style heavy duty fusible safety switch for 3-pole, 3-wire, 600-volt, 60-amp disconnect applications in commercial and light industrial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream circuit and verify absence of voltage with a meter before beginning installation. Ensure the enclosure is properly grounded and that fuses installed match the rated ampacity and voltage of the switch. Do not exceed the 60-amp or 600-volt ratings of the device.

Technical Specifications

• Voltage Rating: 600 volts
• Amperage Rating: 60 amps
• Poles: 3-pole
• Wire Configuration: 3-wire
• Switch Type: Fusible
• Dimensions (L x W x H): 22.047 inches x 14.173 inches x 7.874 inches
• Weight: 24.052 pounds
• UPC: 78364315198

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: HF362S
