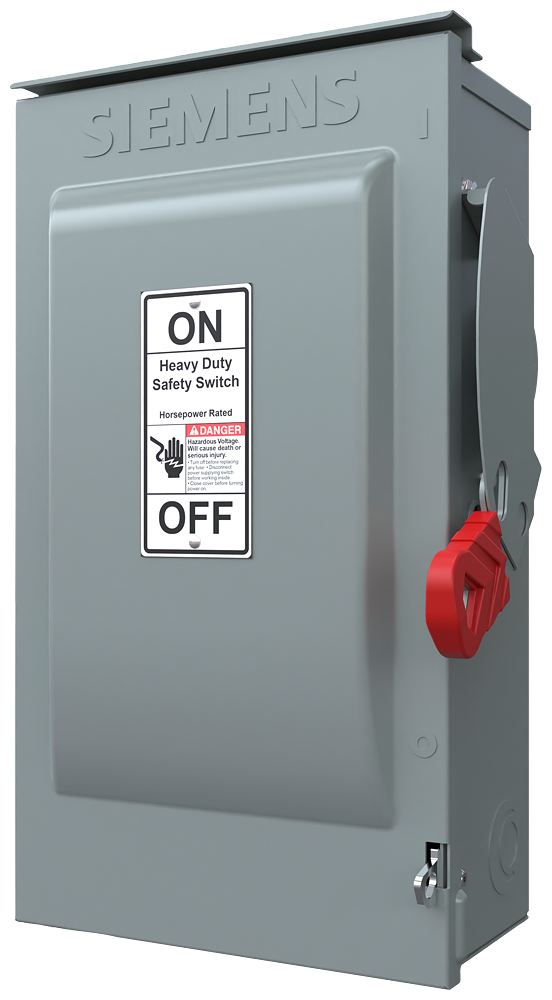

Siemens HF362NR 480/600 VAC/250/600 VDC 60 Amp 3-Pole 4-Wire NEMA 3R Heavy Duty Fusible Safety Switch

Product Description

Siemens HF362NR is a heavy-duty fusible safety switch designed for circuit protection in various applications. This safety switch operates at 480/600 VAC and 250/600 VDC with a 60 Amp capacity. It is housed in a NEMA 3R enclosure suitable for outdoor installations, providing durability and reliability for electrical distribution.

• Heavy-duty construction for demanding environments
• Three-pole, four-wire configuration for versatile applications
• Fusible protection with solid neutral for safe operation

Product Highlights

This safety switch features an easy-to-access handle and a robust mechanism to ensure positive operation. It is ideal for service entrance and load disconnect applications, ensuring compliance with the latest safety standards.

Product Information

Standard Information

• Brand: Siemens
• MPN: HF362NR

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 60 Amp
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Material: Steel
• Operating Temperature: -29 to 85 degrees C
• Short Circuit Current Rating: 200 kA
• Frequency: 60 Hz
• Country of Origin: Mexico
